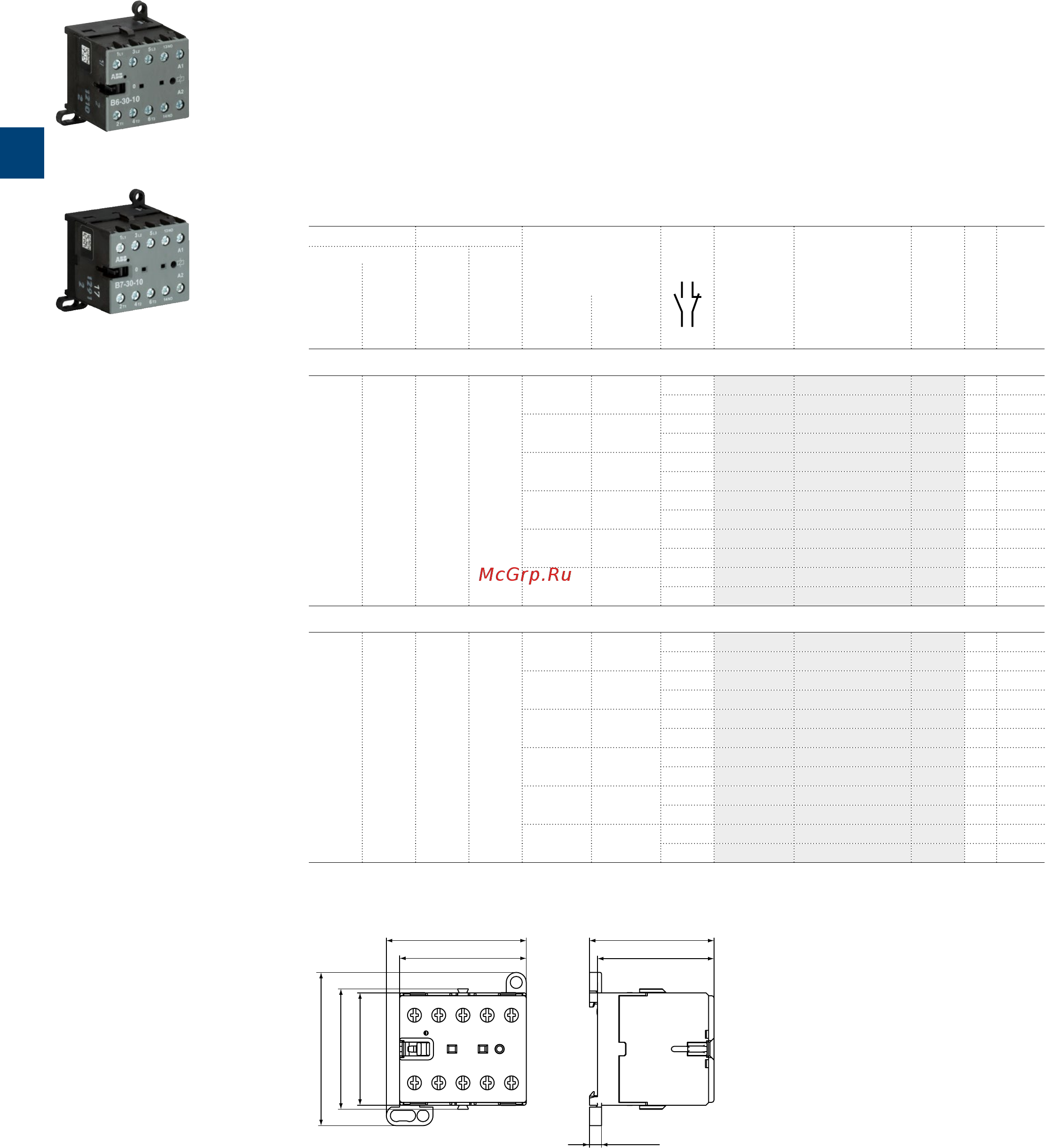

3/4 | ABB Motor protection and control - short form catalog
Description
B6, B7 3-pole mini contactors are compact control products mainly used for switching resistive or motor
loads up to 690 V AC.
These contactors are designed with:
– 3 main poles and one built-in auxiliary contact
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
– hum-free coil
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control circuit
voltage
U
C
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated operational 3-phase
motor
rating
480 V
General
use
rating
power
400 V
AC-3
current
θ ≤ 40 °C
AC-1
50 Hz 60 Hz
kW A hp V AC V AC kg
B6 mini contactors
4 20 3 300 V /
12 A
24 24 1 0 B6-30-10-01 GJL1211001R0101 10 0.175
0 1 B6-30-01-01 GJL1211001R0011 10 0.175
42 42 1 0 B6-30-10-02 GJL1211001R0102 10 0.175
0 1 B6-30-01-02 GJL1211001R0012 10 0.175
48 48 1 0 B6-30-10-03 GJL1211001R0103 10 0.175
0 1 B6-30-01-03 GJL1211001R0013 10 0.175
110 … 127 110 … 127 1 0 B6-30-10-84 GJL1211001R8104 10 0.175
0 1 B6-30-01-84 GJL1211001R8014 10 0.175
220 … 240 220 … 240 1 0 B6-30-10-80 GJL1211001R8100 10 0.175
0 1 B6-30-01-80 GJL1211001R8010 10 0.175
380 … 415 380 … 415 1 0 B6-30-10-85 GJL1211001R8105 10 0.175
0 1 B6-30-01-85 GJL1211001R8015 10 0.175
B7 mini contactors
5.5 20 5 600 V /
16 A
24 24 1 0 B7-30-10-01 GJL1311001R0101 10 0.175
0 1 B7-30-01-01 GJL1311001R0011 10 0.175
42 42 1 0 B7-30-10-02 GJL1311001R0102 10 0.175
0 1 B7-30-01-02 GJL1311001R0012 10 0.175
48 48 1 0 B7-30-10-03 GJL1311001R0103 10 0.175
0 1 B7-30-01-03 GJL1311001R0013 10 0.175
110 … 127 110 … 127 1 0 B7-30-10-84 GJL1311001R8104 10 0.175
0 1 B7-30-01-84 GJL1311001R8014 10 0.175
220 … 240 220 … 240 1 0 B7-30-10-80 GJL1311001R8100 10 0.175
0 1 B7-30-01-80 GJL1311001R8010 10 0.175
380 … 415 380 … 415 1 0 B7-30-10-85 GJL1311001R8105 10 0.175
0 1 B7-30-01-85 GJL1311001R8015 10 0.175
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
B6, B7
2CDC211001F0010
B6-30-10
2CDC211014F0011
B7-30-10
B6, B7 3-pole mini contactors – with screw terminals
4 to 5.5 kW
AC operated
3
Time) Time) Time)
