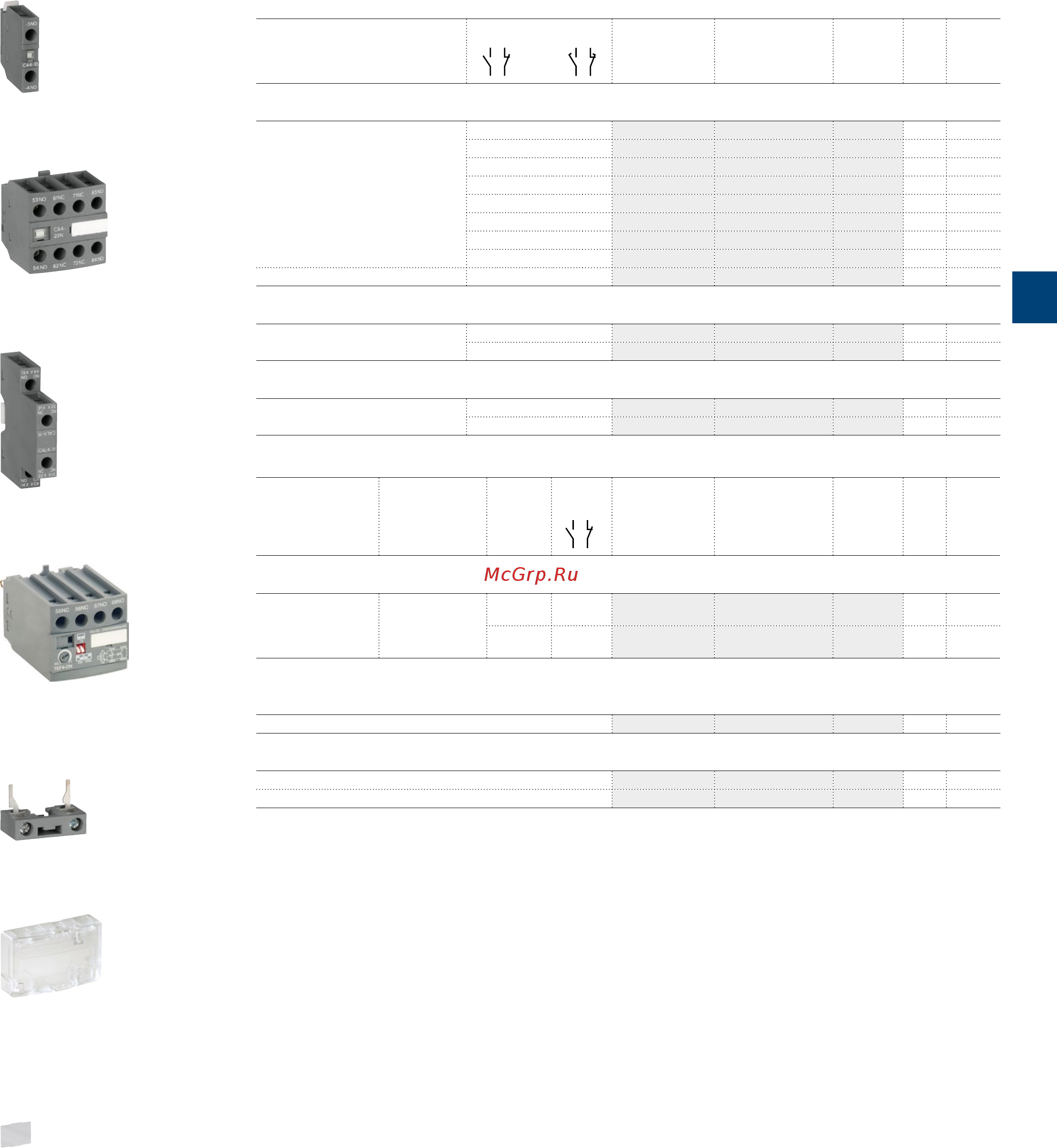

ABB Motor protection and control - short form catalog | 5/71
NF 4-pole contactor relays
Main accessories
Ordering details (1)
For contactor relays Auxiliary contacts Type Order code Pkg
qty
Weight
(1 pce)
kg
Front-mounted instantaneous auxiliary contact blocks
4-pole NF 1 0 – – CA4-10 1SBN010110R1010 1 0.014
1 0 – – CA4-10-T 1SBN010110T1010 10 0.014
0 1 – – CA4-01 1SBN010110R1001 1 0.014
0 1 – – CA4-01-T 1SBN010110T1001 10 0.014
4 0 – – CA4-40N 1SBN010140R1240 1 0.055
3 1 – – CA4-31N 1SBN010140R1231 1 0.055
2 2 – – CA4-22N 1SBN010140R1222 1 0.055
1 3 – – CA4-13N 1SBN010140R1213 1 0.055
NF..40E 0 4 – – CA4-04N 1SBN010140R1204 1 0.055
Front-mounted auxiliary contact blocks with N.O. leading contact and N.C. lagging contact
4-pole NF – – 1 0 CC4-10 1SBN010111R1010 1 0.014
– – 0 1 CC4-01 1SBN010111R1001 1 0.014
Side-mounted instantaneous auxiliary contact blocks
NF 1 1 – – CAL4-11 1SBN010120R1011 1 0.040
1 1 – – CAL4-11-T 1SBN010120T1011 10 0.040
For contactors Time delay
range
selected by
switch
Delay
type
Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
Electronic timers
NF 0.1...1s
1...10s
10...100s
ON-delay 1 1 TEF4-ON 1SBN020112R1000 1 0.065
OFF-delay 1 1 TEF4-OFF 1SBN020114R1000 1 0.065
Note: Rated control circuit voltage Uc 24...240 V 50/60 Hz or DC.
Additional coil terminal block
NF LDC4 1SBN070156T1000 10 0.010
Protective covers
All 1-stack contactor relays BX4 1SBN110108T1000 10 0.006
4-pole CA4 auxiliary contact blocks and TEF4 electronic timer BX4-CA 1SBN110109W1000 50 0.001
(1) For more information, refer to main catalog "Accessories" section.
1SBC101108F0014
CA4-10
1SBC101136F0014
BX4
1SBC101133F0014
LDC4
1SBC101138F0014
BX4-CA
1SBC101112F0014
CAL4-11
CA4-22N
1SBC101123F0014
1SBC101392F0014
TEF4-ON
1SBC101519S0201 - Rev. A
5
