DOL starters protected by moulded-case circuit-breakers and
overload relays
With AF contactors - Open type version in kit form
Description

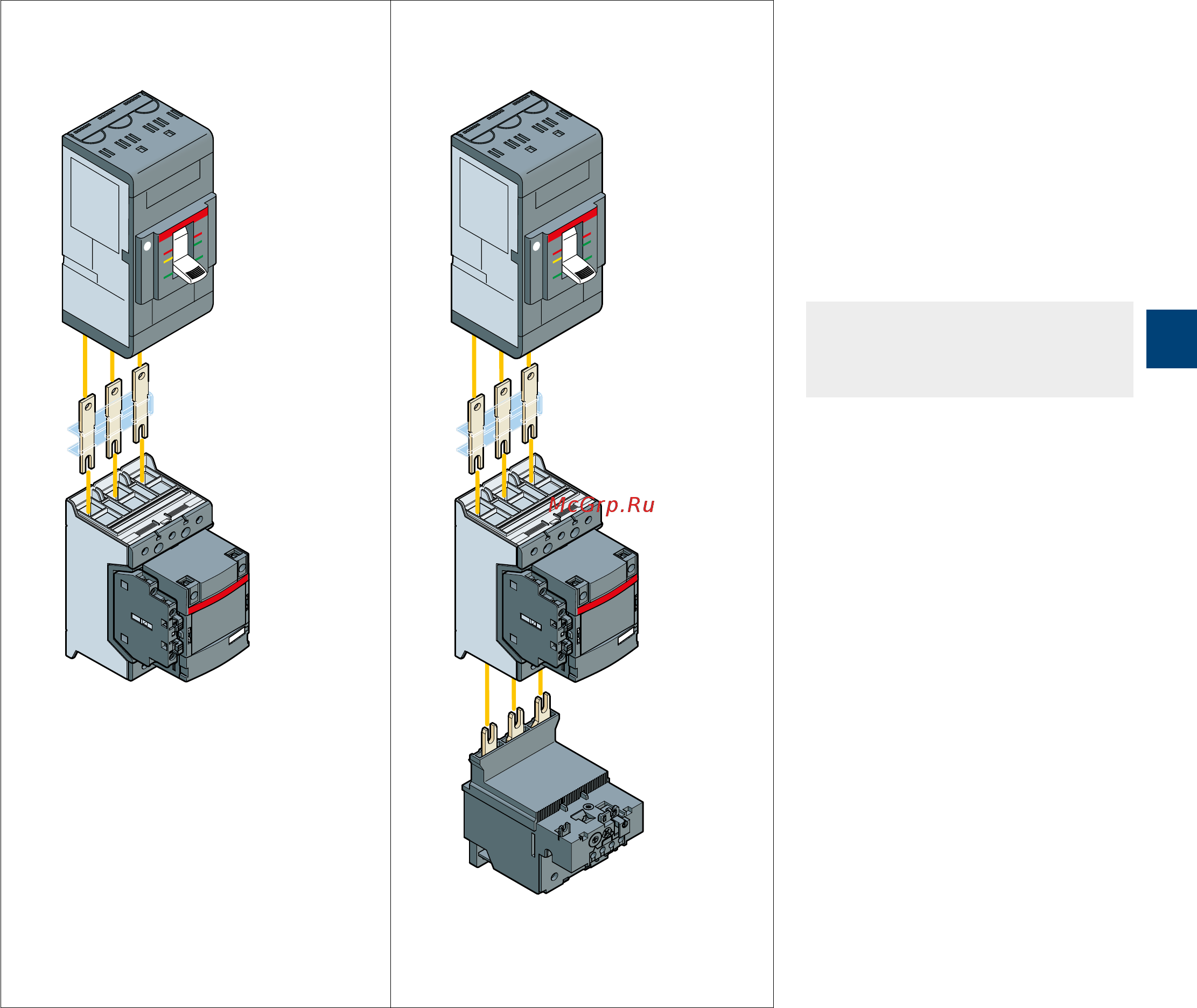

You can easily assemble a direct-on-
line starter by using the BEA connection
bars. It is used to electrically connect
MCCB moulded-case circuit-breaker and
AF116...AF370 contactor, AC or DC
operated.
Select now easily and quickly your
starter in the following pages for coor-
dination type 1 or 2 at 400V, 50/60Hz,
Iq=50kA up to 200 kW.
BEA
Connection bar
MCCB
Moulded-case circuit-breaker
including motor protection
AF116 ... AF370
Contactor
For the full coordination tables:
www.abb.com/lowvoltage then go to the right
menu: "Support", select: "Online Product Selection
Tools" then select "Coordination Tables for motor
protection"
BEA
Connection bar
MCCB
Moulded-case circuit-breaker
(magnetic only)
AF116 ... AF370
Contactor
TF
Thermal overload relay
EF
Electronic overload relay
1SBC101973S0201
ABB Motor protection and control - short form catalog | 5/15
