2CDC102021C0201
ABB Motor protection and control - short form catalog | 3/11

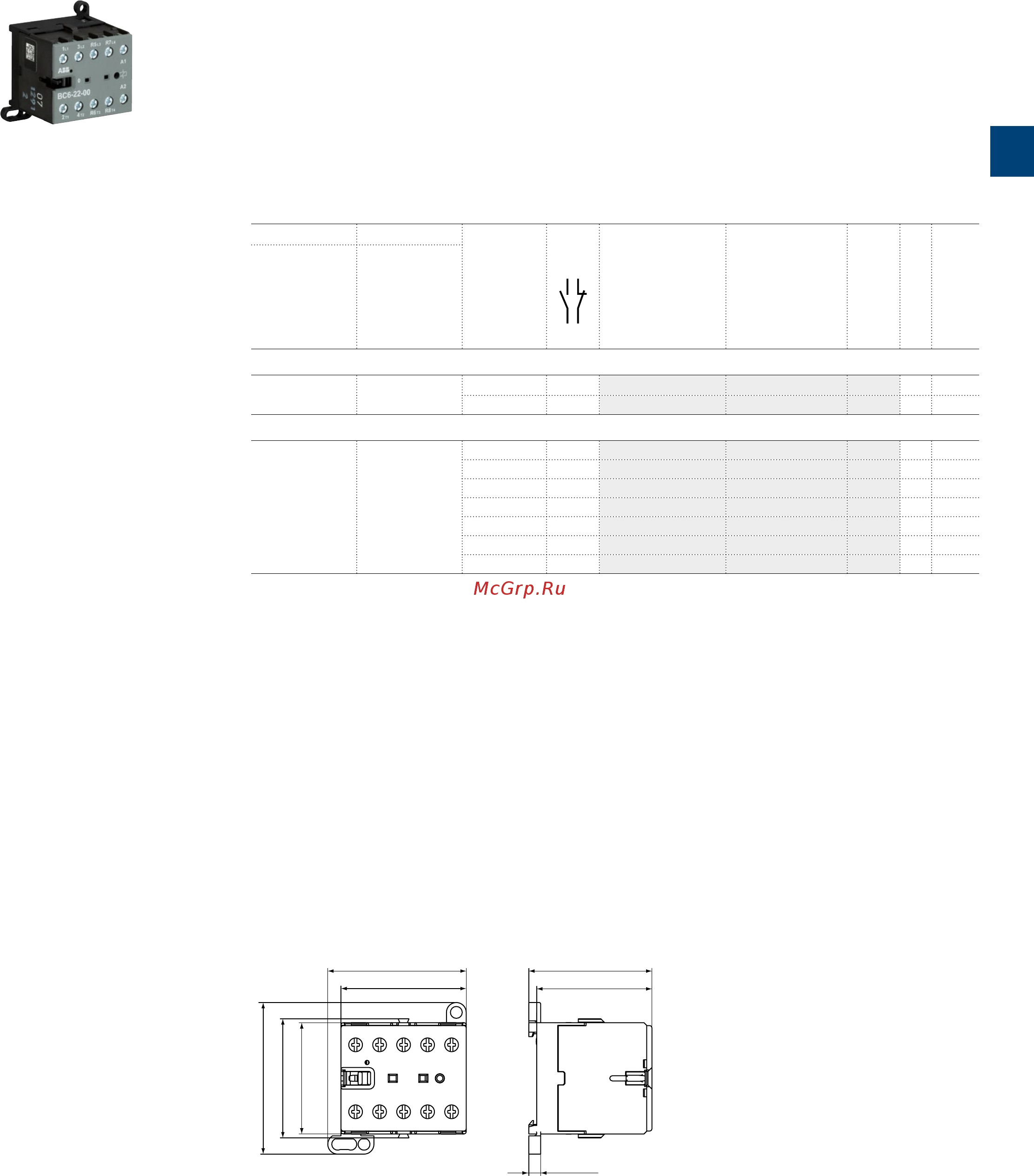

BC6, B7D 4-pole mini contactors – with screw terminals
4 to 5.5 kW
DC operated
Description
BC6, B7D 4-pole mini contactors are compact control products mainly used for switching resistive loads
up to 690 V AC.
These contactors are designed with:
– 4 main poles
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
– add-on auxiliary contact blocks for front or side mounting
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control
circuit voltage
U
C
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated
operational
General use
rating
current
θ ≤ 40 °C
AC-1
A V DC kg
4 N.O. main poles
20 600 V / 16 A 24 0 0 B7D-40-00-01 GJL1317201R0001 10 0.175
220 0 0 B7D-40-00-05 GJL1317201R0005 10 0.175
2 N.O. + 2 N.C. main poles
20 300 V / 12 A 12 0 0 BC6-22-00-07 GJL1213501R0007 10 0.175
24 0 0 BC6-22-00-01 GJL1213501R0001 10 0.175
42 0 0 BC6-22-00-02 GJL1213501R0002 10 0.175
48 0 0 BC6-22-00-16 GJL1213501R1006 10 0.175
60 0 0 BC6-22-00-03 GJL1213501R0003 10 0.175
110 ... 125 0 0 BC6-22-00-04 GJL1213501R0004 10 0.175
220 ... 240 0 0 BC6-22-00-05 GJL1213501R0005 10 0.175
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
BC6, B7D
2CDC211032F0011
BC6-22-00
3
Time) Time) Time)
