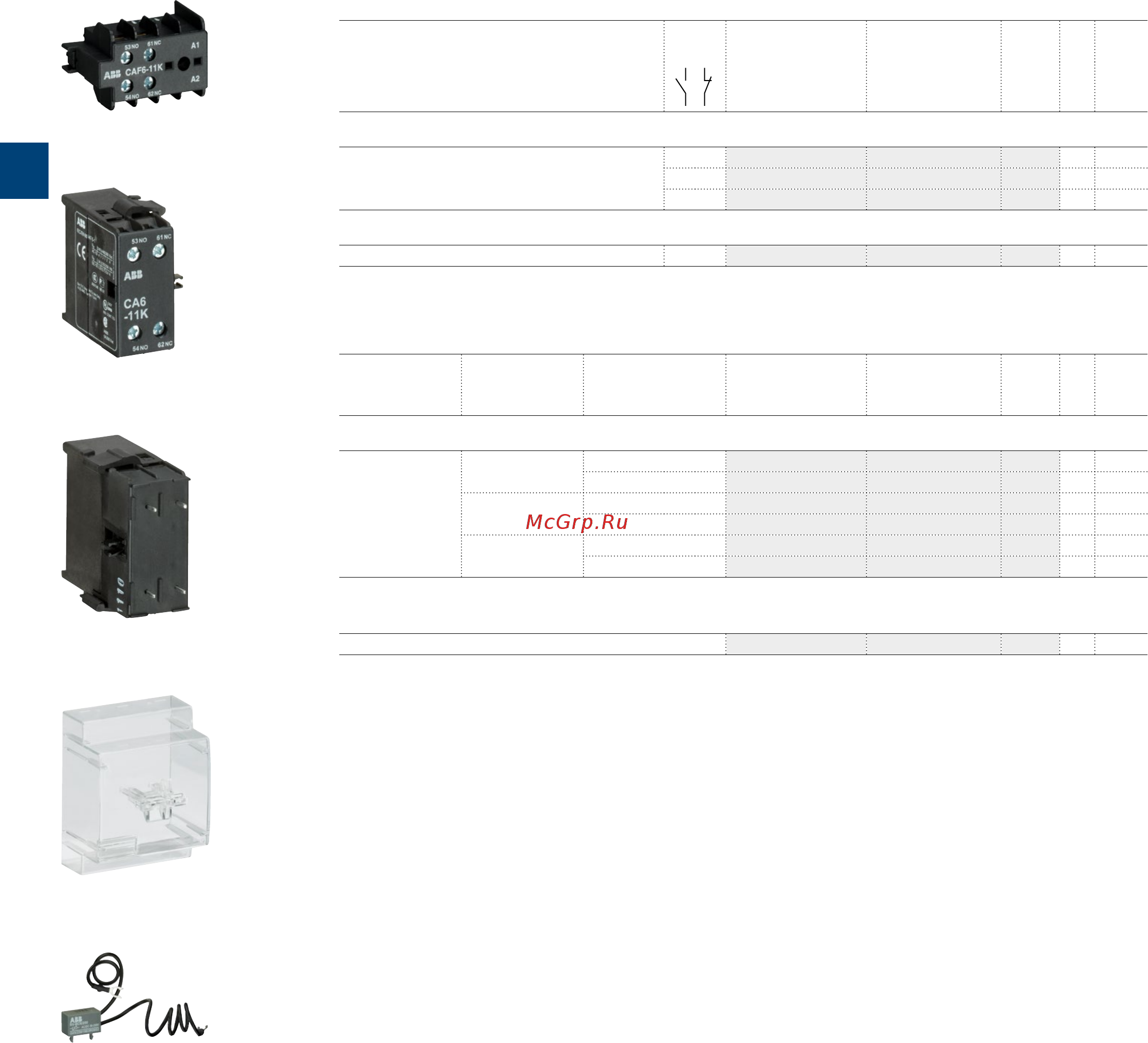

K6, KC6 4-pole mini contactor relays
Accessories
Ordering details
For contactors
Auxiliary
contacts
Type Order code
Pkg
qty
Weight
(1 pce)
kg
Front-mounted instantaneous auxiliary contact blocks (1)
K6, KC6 1 1 CAF6-11K GJL1201330R0001 10 0.020
2 0 CAF6-20K GJL1201330R0005 10 0.020
0 2 CAF6-02K GJL1201330R0009 10 0.020
Side-mounted instantaneous auxiliary contact block (1)
K6, KC6 1 1 CA6-11K GJL1201317R0001 10 0.030
(1) CA6 and CAF6 must not be fitted simultaneously.
For contactors Rated control
circuit voltage Uc
Connection type Type Order code
Pkg
qty
Weight
(1 pce)
V DC kg
Surge suppressors for contactor coils
KC6 24...60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/60 GHV2501902R0003 10 0.005
50...250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/250 GHV2501903R0003 10 0.010
380 Cable lug RV-BC6/380 GHV2501904R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/380 GHV2501904R0003 10 0.010
Note: Mini contactors for AC operation have an integrated protective circuit.
Cover cap, transparent fitting to DIN rail design, sealable
K6, KC6 LT6-B GJL1201906R0001 10 0.015
2CDC211019S0011
CAF6-11K
2CDC211009S0010
CA6-11K
2CDC211011S0010
CA6-11K-P
2CDC211006S0010
LT6-B
2CDC211007S0010
RV-BC6/250
1SBC101635S0201
3/18 | ABB Motor protection and control - short form catalog
