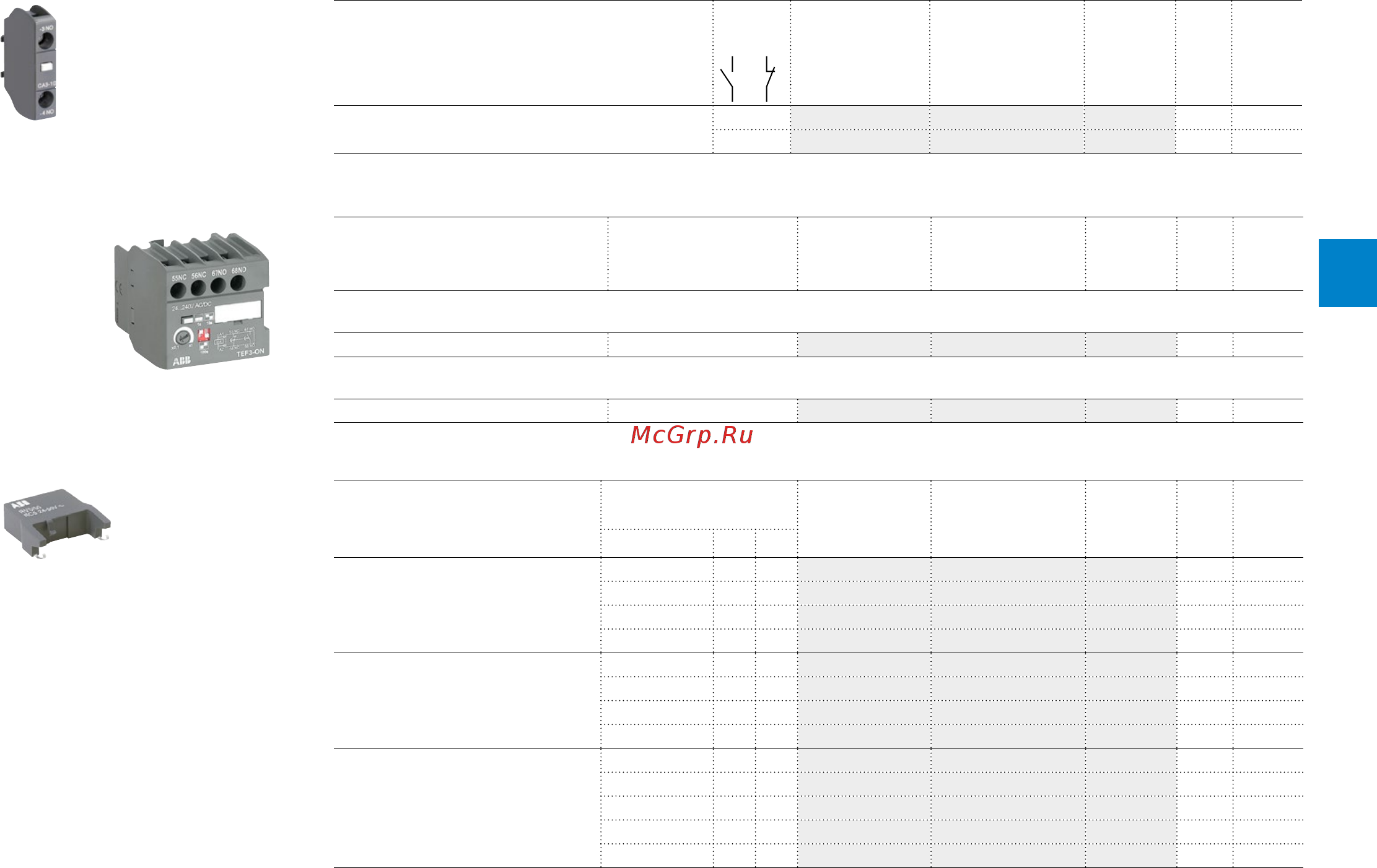

NS and NSL contactor relays
Main accessories
Front-mounted instantaneous auxiliary contact blocks
For contactor relays Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
NS, NSL 1 0 CA3-10 1SBN011010T1010 10 0.011
0 1 CA3-01 1SBN011010T1001 10 0.011
Front-mounted electronic timer
For contactors Rated control circuit
voltage - Uc
Type Order code Pkg
qty
Weight
(1 pce)
V kg
ON-delay
NS, NSL 24...240VAC/DC TEF3-ON 1SBN021012R1000 1 0.065
OFF-delay
NS, NSL 24...240VAC/DC TEF3-OFF 1SBN021014R1000 1 0.065
Surge suppressors
For contactor relays Rated control circuit
voltage - Uc
Type Order code Pkg
qty
Weight
(1 pce)
V AC DC
kg
NS,
NSL
24...50
● ●
RV5/50 1SBN050010R1000 2 0.015
50...133
● ●
RV5/133 1SBN050010R1001 2 0.015
110...250
● ●
RV5/250 1SBN050010R1002 2 0.015
250...440
● ●
RV5/440 1SBN050010R1003 2 0.015
NS 24...50
●
– RC5-1/50 1SBN050100R1000 2 0.012
50...133
●
– RC5-1/133 1SBN050100R1001 2 0.012
110...250
●
– RC5-1/250 1SBN050100R1002 2 0.012
250...440
●
– RC5-1/440 1SBN050100R1003 2 0.012
NSL 12...32 –
●
RT5/32 1SBN050020R1000 2 0.015
25...65 –
●
RT5/65 1SBN050020R1001 2 0.015
50...90 –
●
RT5/90 1SBN050020R1002 2 0.015
77...150 –
●
RT5/150 1SBN050020R1003 2 0.015
150...264 –
●
RT5/264 1SBN050020R1004 2 0.015
1SBC101036F0014
CA3-10
1SBC574001F0301
RV5
1SBC101337F0014
TEF3-ON
4
