Gigabyte MZ01-CE0 (rev. 2.x) [100/137] 5 chipset setup menu

BIOS Setup - 100 -

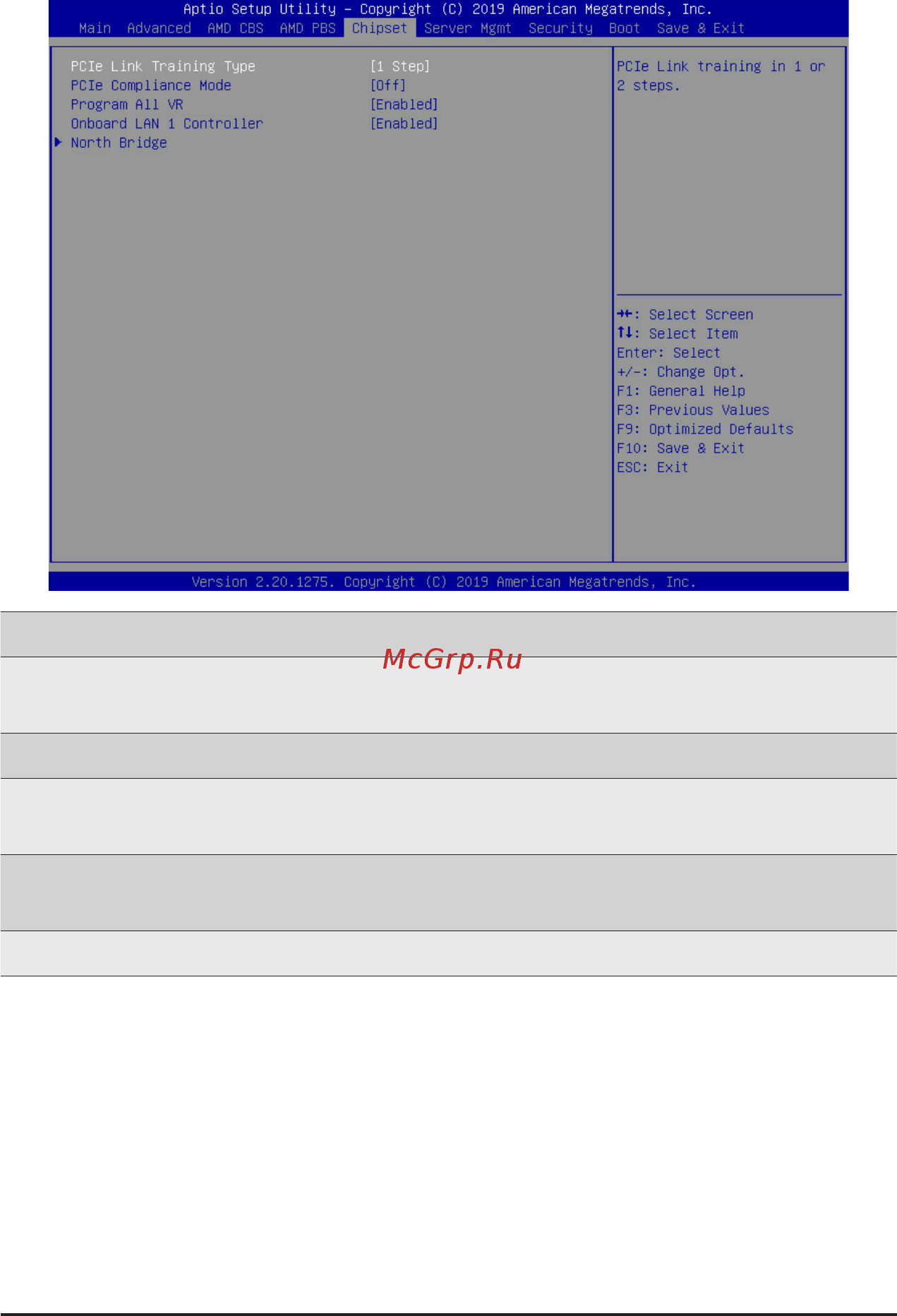

2-5 Chipset Setup Menu

ChipsetSetupmenudisplayssubmenuoptionsforconguringthefunctionofNorthBridge.

Select a submenu item, then press <Enter> to access the related submenu screen.

Parameter

Description

PCIe Link Training Type

ConguresthePCIeLinktrainingin1or2steps.

Options available: 1 Step/2Step. Default setting is 1 Step.

PCIe Compliance Mode Options available: On/Off. Default setting is Off.

Program All VR

Enable/Disable program all VR on MB.

Options available: Enabled/Disabled. Default setting is Enabled.

Onboard LAN 1 Controller

Enable/Disable Onboard LAN 1 Controller.

Options available: Enabled/Disabled. Default setting is Enabled.

North Bridge Press[Enter]forcongurationofadvanceditems.
