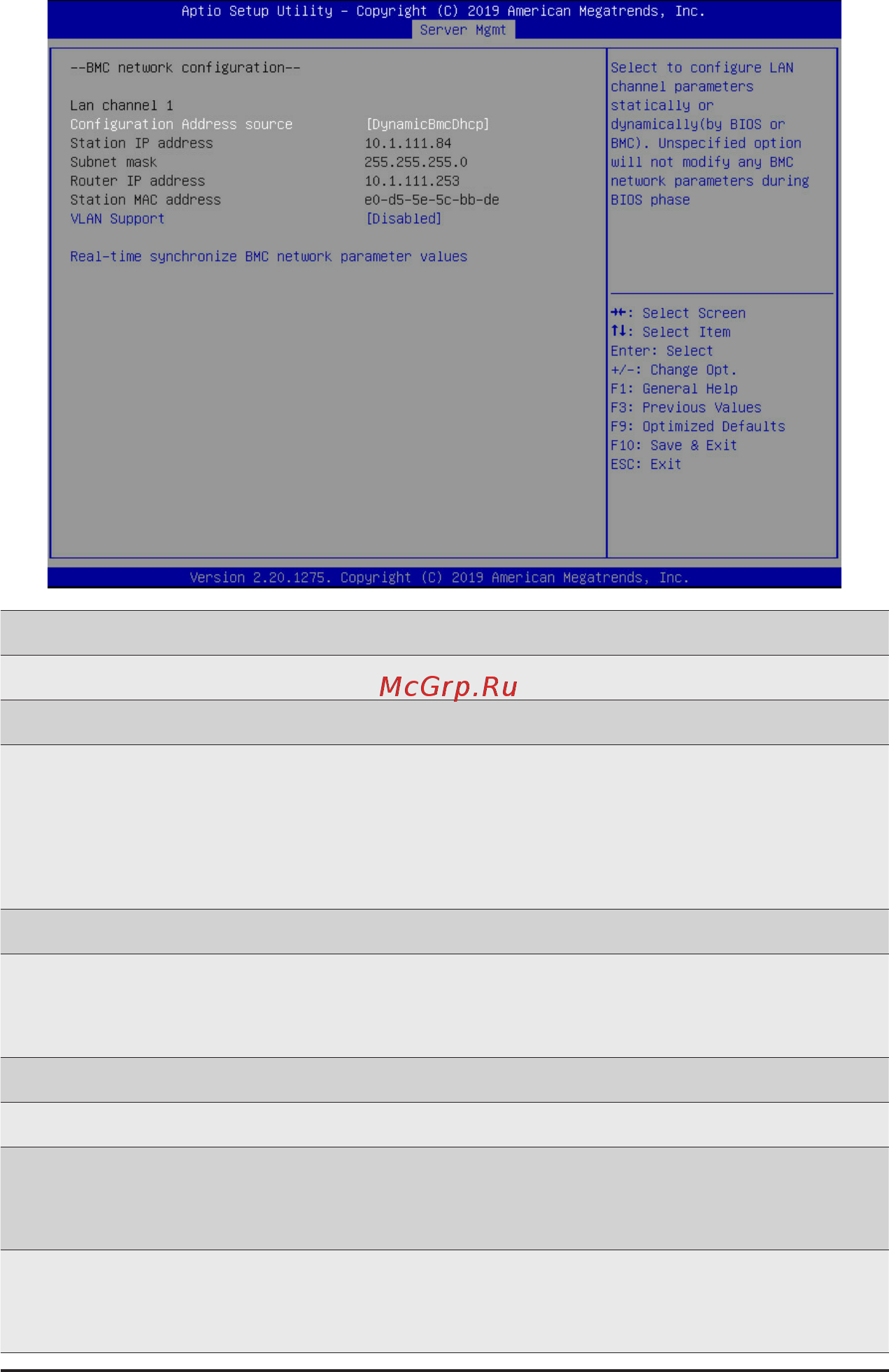

BIOS Setup - 106 -
2-6-3 BMC Network Conguration
Parameter
Description
BMCnetworkconguration
Lan Channel 1
CongurationAddresssource
SelectstocongureLANchannelparametersstaticallyordynamically
(DHCP). Do nothing option will not modify any BMC network parameters
during BIOS phase.
Optionsavailable:Unspecied,Static,DynamicBmcDhcp.Defaultsetting
is DynamicBmcDhcp.
Station IP address
Displays IP Address information.
Subnet mask
Displays Subnet Mask information.
Please note that the IP address must be in three digitals, for example,
192.168.000.001.
Router IP address
Displays the Router IP Address information.
Station MAC address
Displays the MAC Address information.
VLAN Support
Set the BMC to enable/disable VLAN. (Press [Real-time synchronize
BMC network parameter values] after setting is completed.)
Options available: Enabled/Disabled. Default setting is Enabled.
Real-time get BMC network
address
Press [Enter] will set Address source (Static/DHCP) to BMC and then get
Station IP address, Subnet mask and Router IP address and VLAN ID
from BMC.
