Gigabyte MZ01-CE0 (rev. 2.x) [114/137] 8 2 uefi application boot priorities

BIOS Setup - 114 -

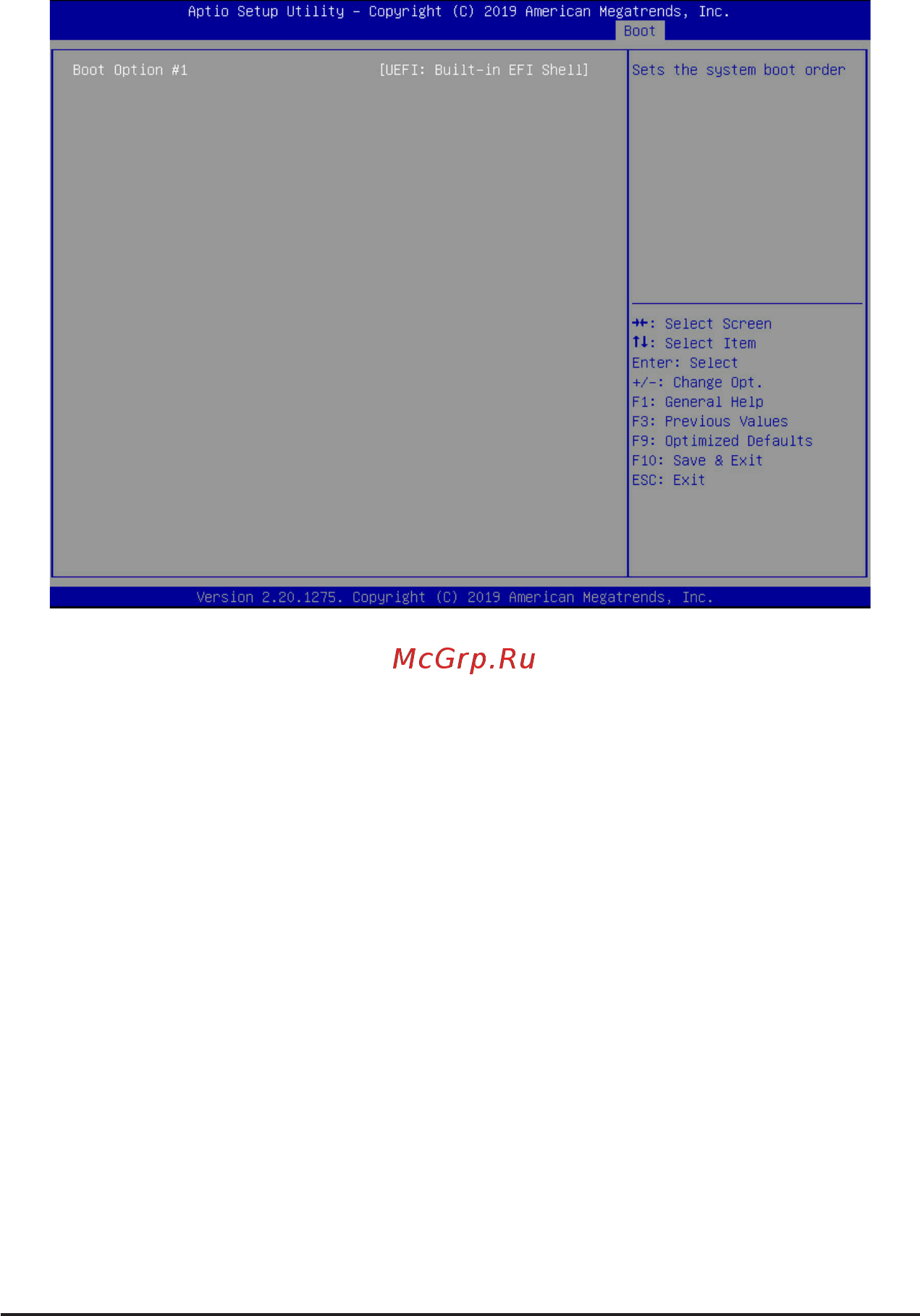

2-8-2 UEFI Application Boot Priorities

The UEFI application boot priorities submenu allows you to specify the boot device priority from the available

UEFI applications during system boot-up. BIOS setup will display an error message if the legacy drive(s)

speciedisnotbootable.
