BIOS Setup - 90 -

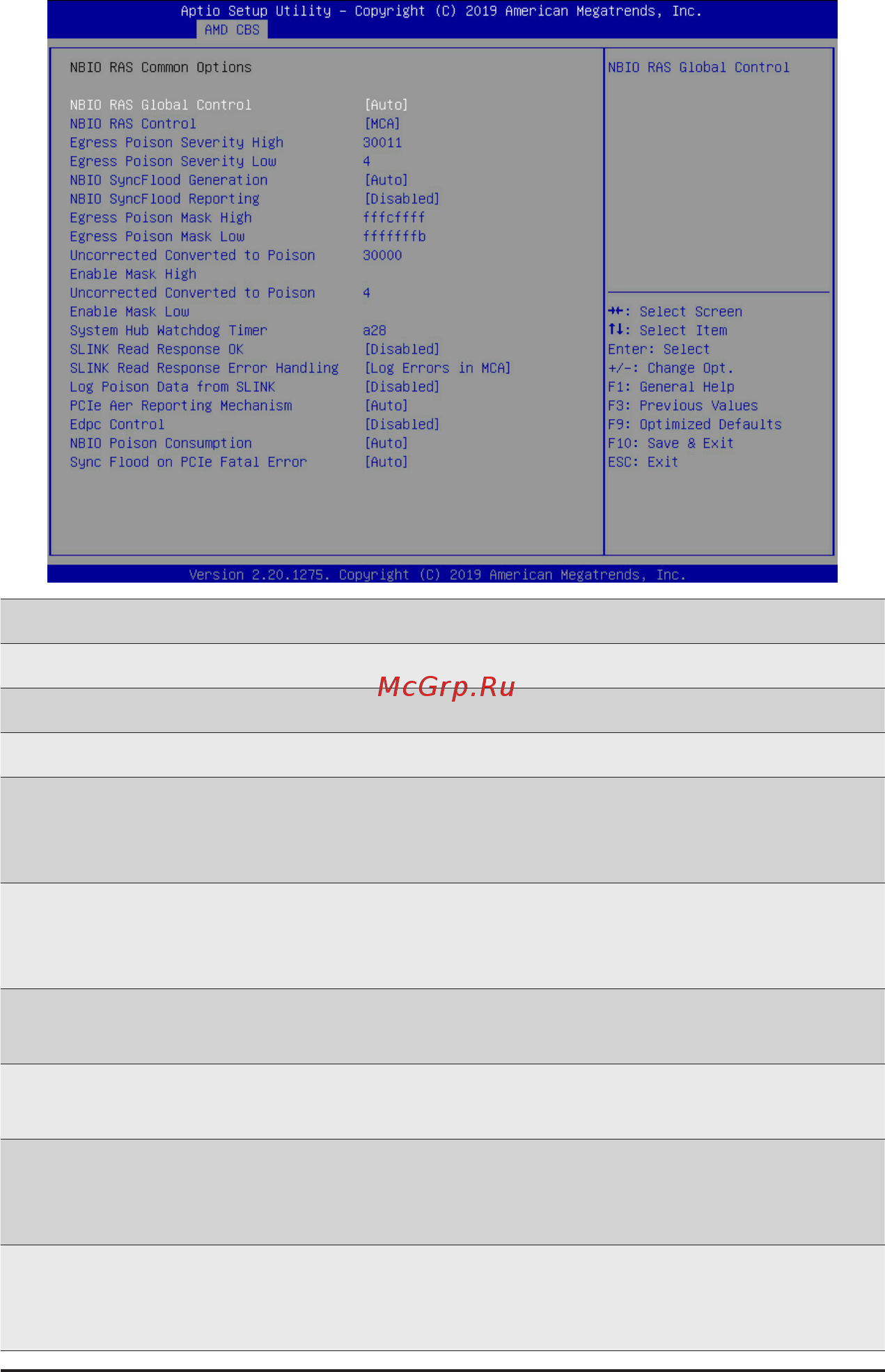

2-3-4-2 NBIO RAS Common Options
Parameter
Description
NBIO RAS Common Options
NBIO RAS Global Control
Options available: Auto/Manual. Default setting is Auto.
NBIO RAS Control Options available: Disabled, MCA, Legacy. Default setting is MCA.
Egress Poison Serverity High
CongurestheEgressPoisonHighServerity.Eachbitsetto1enables
High serverity on the associated IOHC egress port. A bit of 0 indicates
LOW serverity.
Egress Poison Serverity Low
CongurestheEgressPoisonLowServerity.Eachbitsetto1enables
High serverity on the associated IOHC egress port. A bit of 0 indicates
LOW serverity.
NBIO SyncFlood Generation
The value may be used to mask SyncFlood caused by NBIO RAS options.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
NBIO SyncFlood Reporting
The value may be used to enanle SyncFlood reporting to APML.
Options available: Enabled/Disabled. Default setting is Disabled.
Egress Poison Mask High
Enables mask for masking of errors logged in EGRESS_POISON_
STATUS. For each bit set to 1, errors are masked. For each bit set to 0,
errors trigger response actions.
Egress Poison Mask Low
Enables mask for masking of errors logged in EGRESS_POISON_
STATUS. For each bit set to 1, errors are masked. For each bit set to 0,
errors trigger response actions.
