BIOS Setup - 88 -
2-3-4-1 SMU Common Options
Parameter
Description

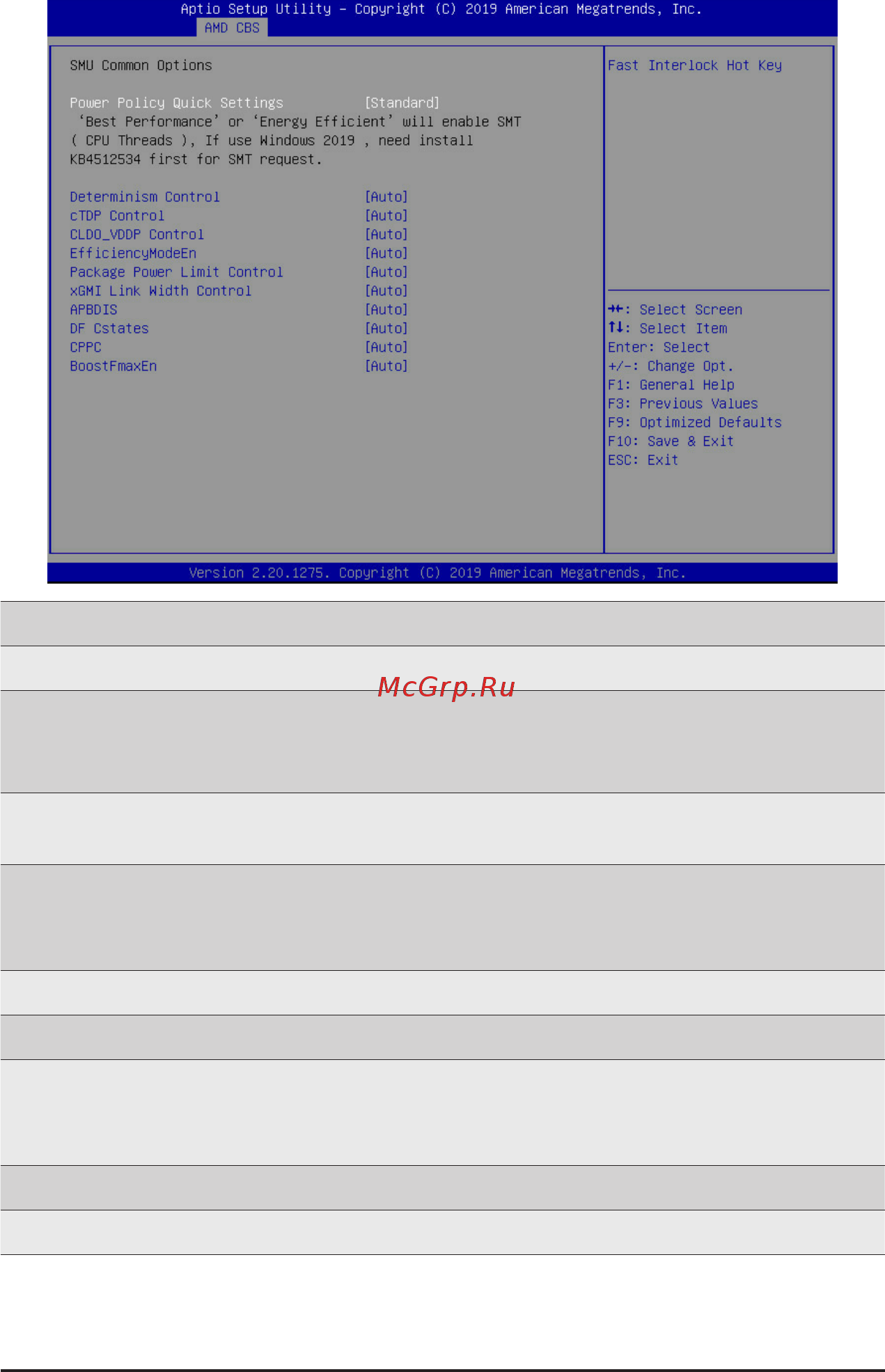

SMU Common Options
Power Policy Quick Settings
Selects a Power Policy Quick Setting.
Optionsavailable:Standard,BestPerformance,EnergyEfcient.
Default setting is Standard.
Determinism Control
Selects use the fused Determinism or set customized Determinism.
Options available: Auto/Manual. Default setting is Auto.
cTDP Control
SelectsusethefusedTDPorsetcustomizedTDP.**TDPisusedtodene
the RC thermal model only**
Options available: Auto/Manual. Default setting is Auto.
CLD0_VDDP Control Options available: Auto/Manual. Default setting is Auto.
EfciencyModeEn Options available: Auto/Enabled. Default setting is Auto.
Package Power Limit Control
Selects use the fused PPT or set customized PPT. **PPT will be used as
the ASIC power limit**
Options available: Auto/Manual. Default setting is Auto.
xGMI Link Width Control Options available: Auto/Enabled. Default setting is Auto.
APBDIS Options available: Auto, 0, 1. Default setting is Auto.
