Gigabyte MZ01-CE0 (rev. 2.x) [67/137] 3 1 3 core watchdog

- 67 - BIOS Setup

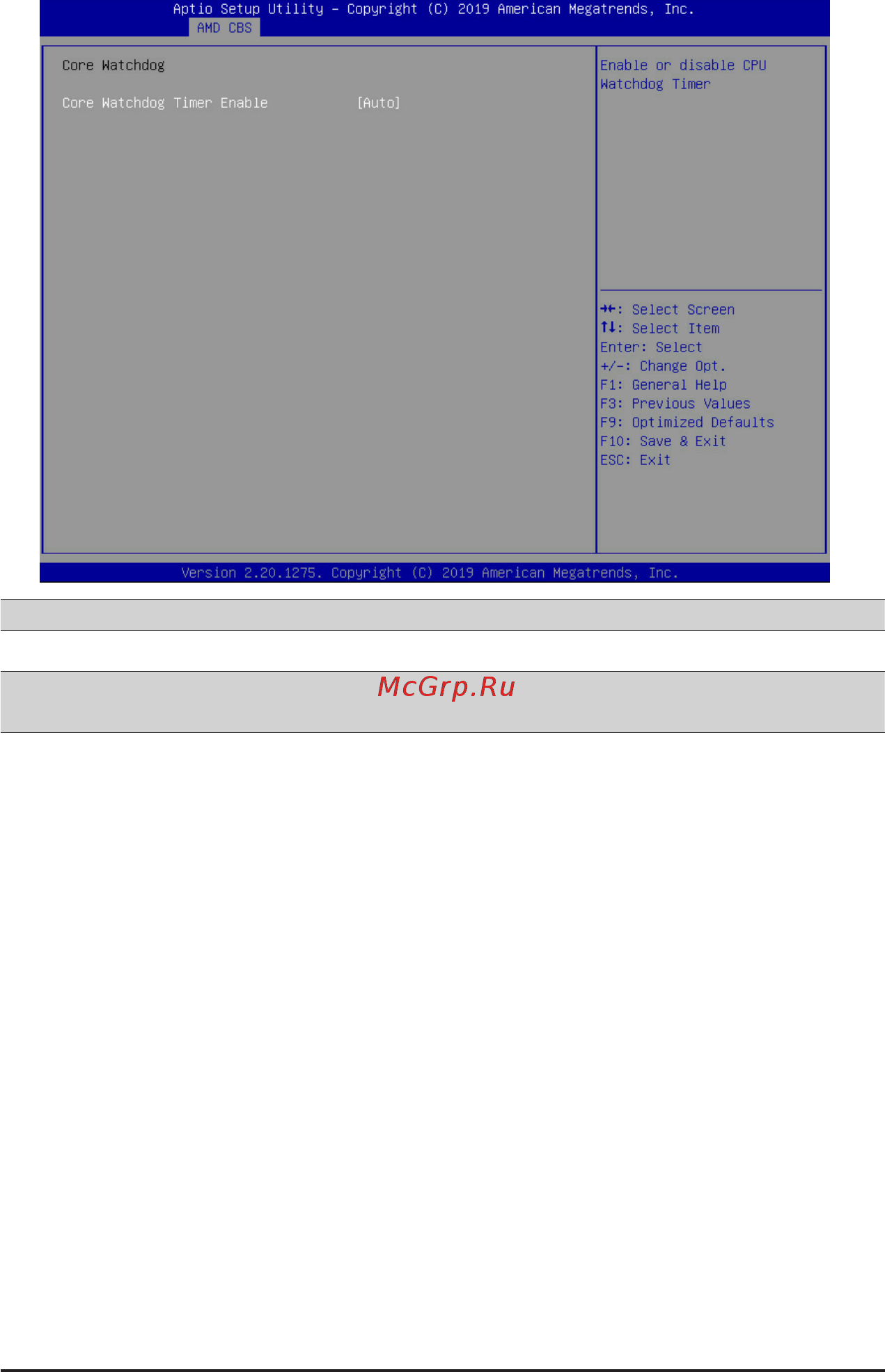

2-3-1-3 Core Watchdog

Parameter Description

Core Watchdog

Core Watchdog Timer Enable

Enable/Disable CPU Watchdog Timer.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
