Gigabyte MZ01-CE0 (rev. 2.x) [72/137] 3 2 4 link

BIOS Setup - 72 -

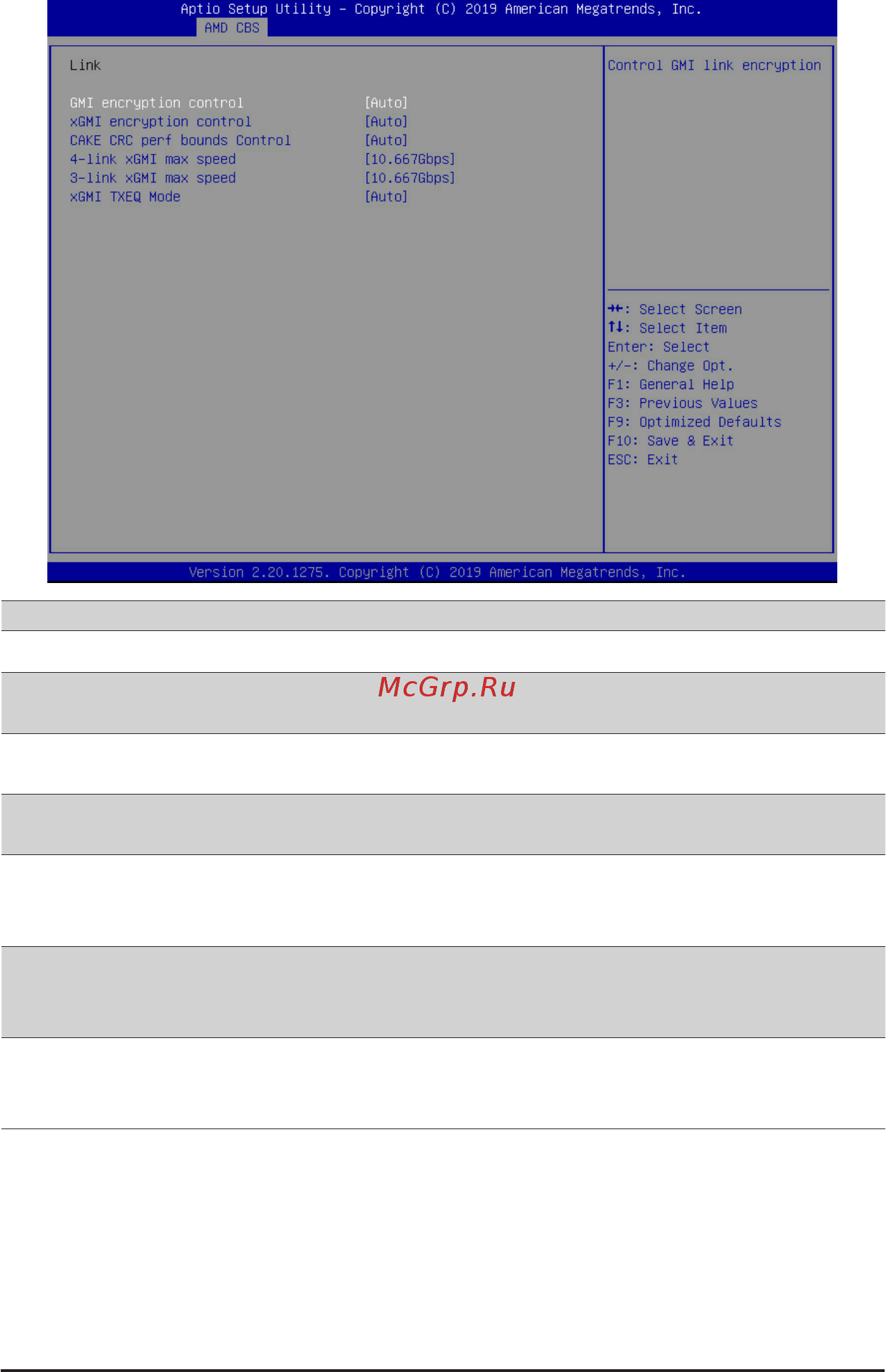

2-3-2-4 Link

Parameter Description

Link

GMI encryption control

Enable/Disable GMI link encryption.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

xGMI encryption control

Enable/Disable xGMI link encryption.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

CAKE CRC perf bounds

Control

Options available: Auto/Manual. Default setting is Auto.

4-link xGMI max speed

Speciesthemaxspeedof4-linkxGMI.

Options available: Auto, 10.667Gbps, 13Gbps, 16Gbps, 18Gbps.

Default setting is 10.667Gbps.

3-link xGMI max speed

Speciesthemaxspeedof3-linkxGMI.

Options available: Auto, 10.667Gbps, 13Gbps, 16Gbps, 18Gbps.

Default setting is 10.667Gbps.

xGMI TXEQ Mode

ConguresxGMITXEQ/RXvettingMode.

Options available: Auto, TXEQ_Disabled, TXEQ_Lane, TXEQ_Link,

TXEQ_RX_Vet. Default setting is 10.667Gbps.
