Gigabyte MZ01-CE0 (rev. 2.x) [62/137] 3 amd cbs menu

BIOS Setup - 62 -

2-3 AMD CBS Menu

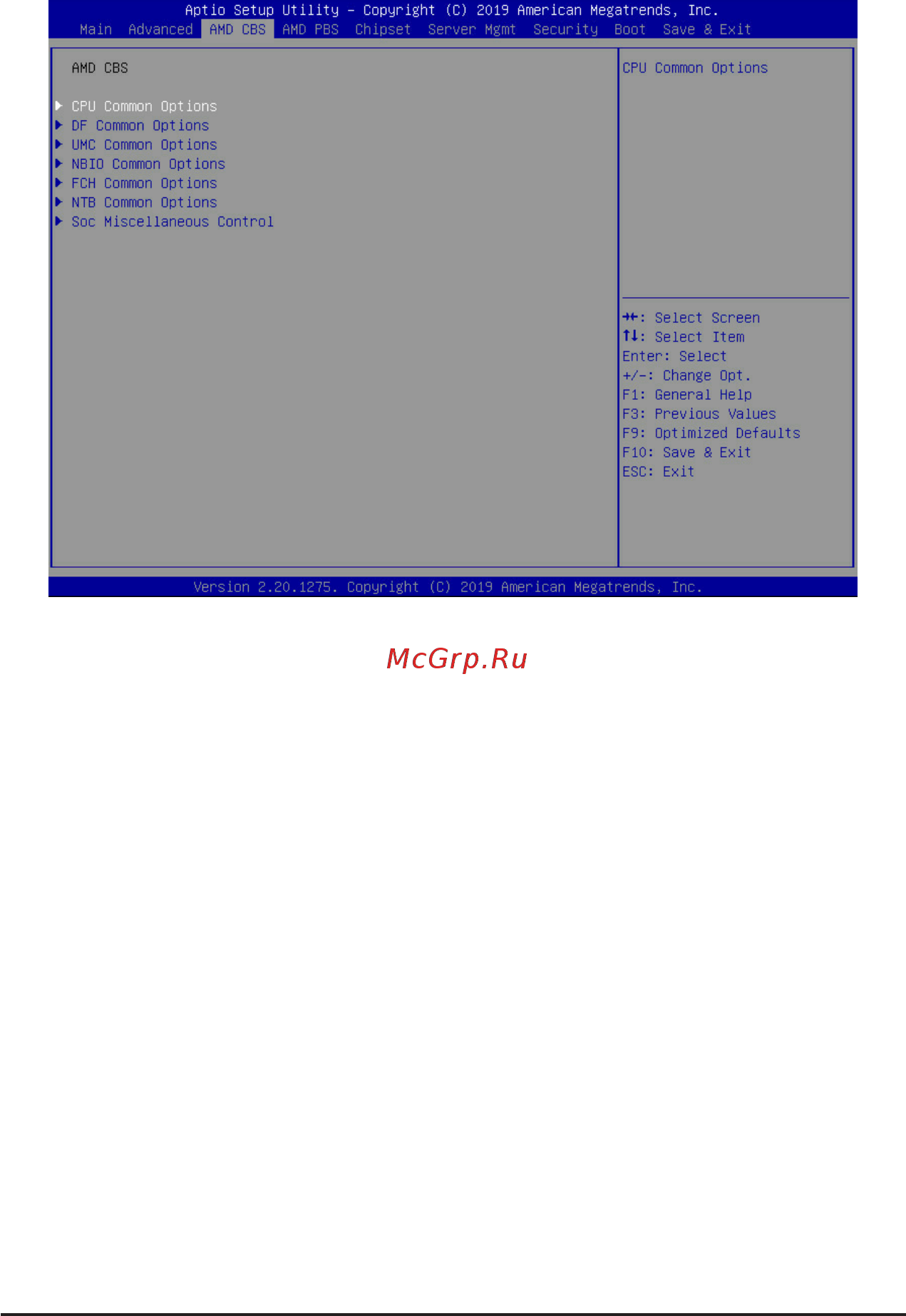

AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS

automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen.
