BIOS Setup - 70 -

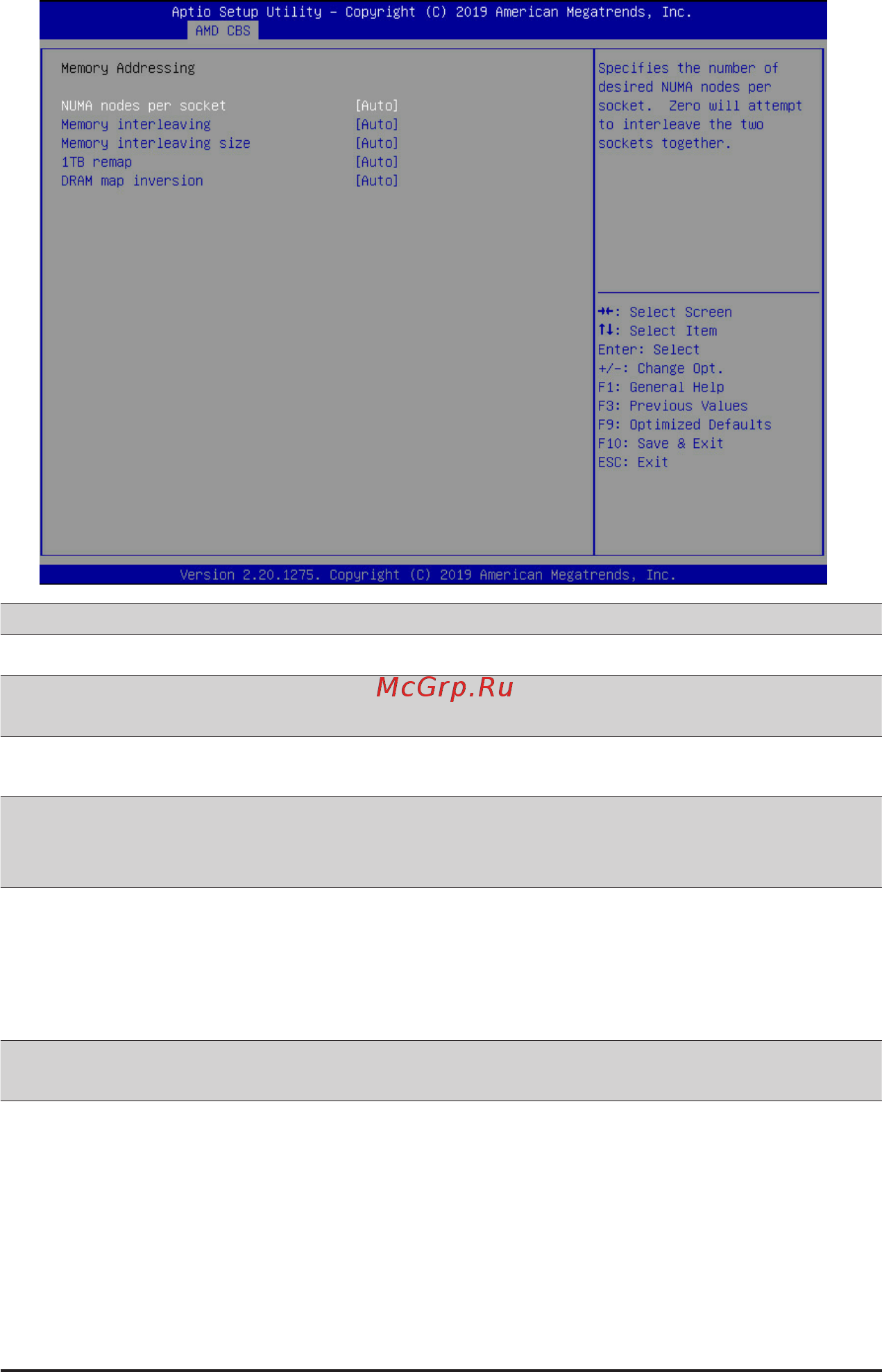

2-3-2-2 Memory Addressing
Parameter Description
Memory Addressing
NUMA nodes per socket
SpeciesthenumberofdesiredNUMAnodespersocket.
Options available: Auto, NPS0, NPS1, NPS2, NPS4. Default setting is Auto.
Memory inerleaving
Enable/Disable the Memory interleaving feature.
Options available: Auto/Disabled. Default setting is Auto.
Memory interleaving size
Controls the memory interleaving size. This determines the starting address of
the interleave (bit 8, 9, 10 or 11).
Options available: Auto, 256Bytes, 512Bytes, 1KB, 2KB. Default setting is Auto.
1TB remap
Enable/DisabletoremapDRAMoutofthespacejustbelowthe1TBboundary.
TheabilitytoremapdependsonDRAMconguration,NPS,andinterleaving
selection, and may not always be possible.
Options available: Auto, Do not remap, Attempt to remap.
Default setting is Auto.
DRAM map inversion
Enable/Disable the DRAM map inversion function.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
