Gigabyte MZ01-CE0 (rev. 2.x) [49/137] 2 9 nvme configuration

- 49 - BIOS Setup

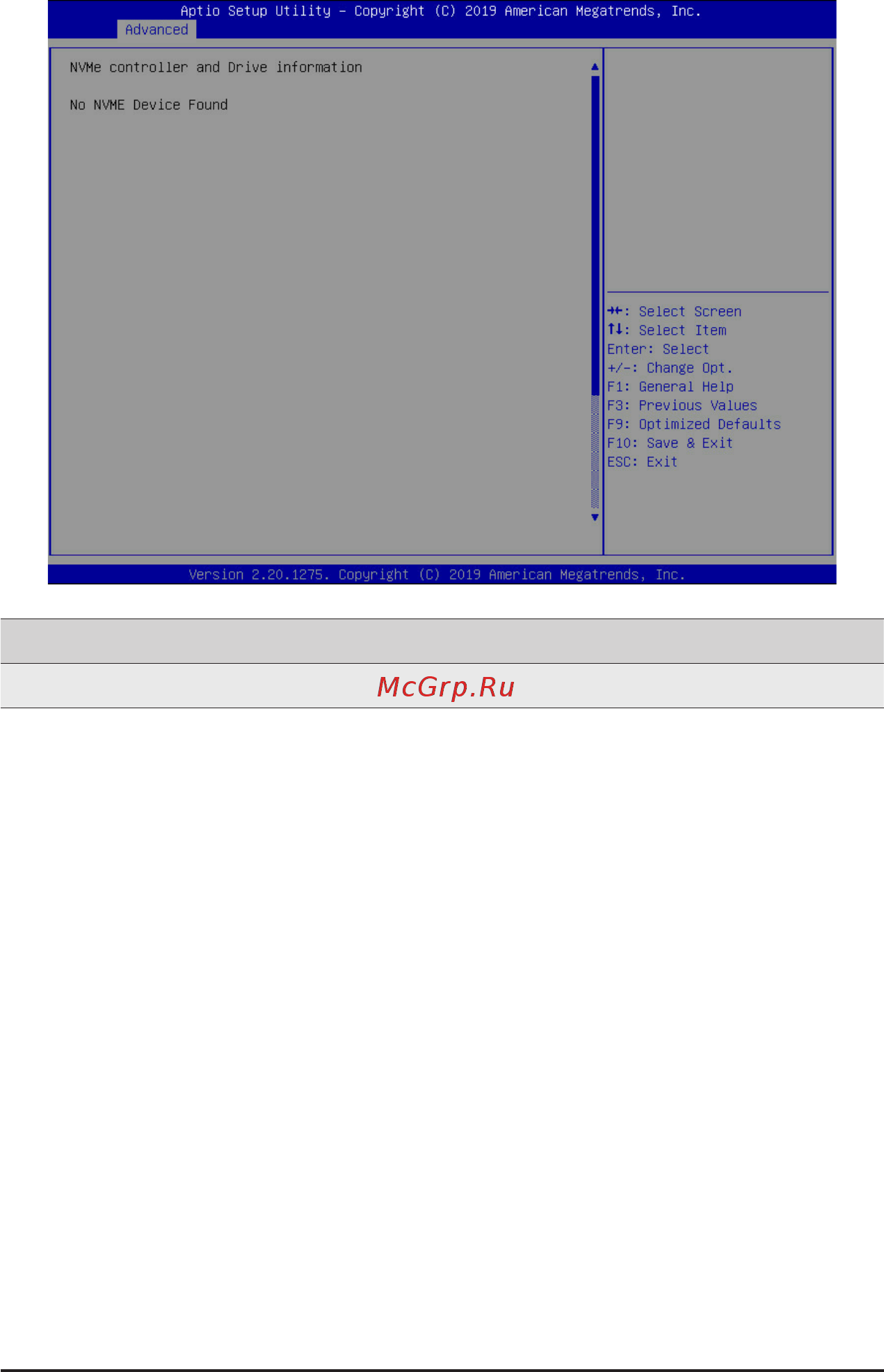

2-2-9 NVMe Conguration

Parameter

Description

NVMeConguration

Displays the NVMe devices connected to the system
