- 45 - BIOS Setup

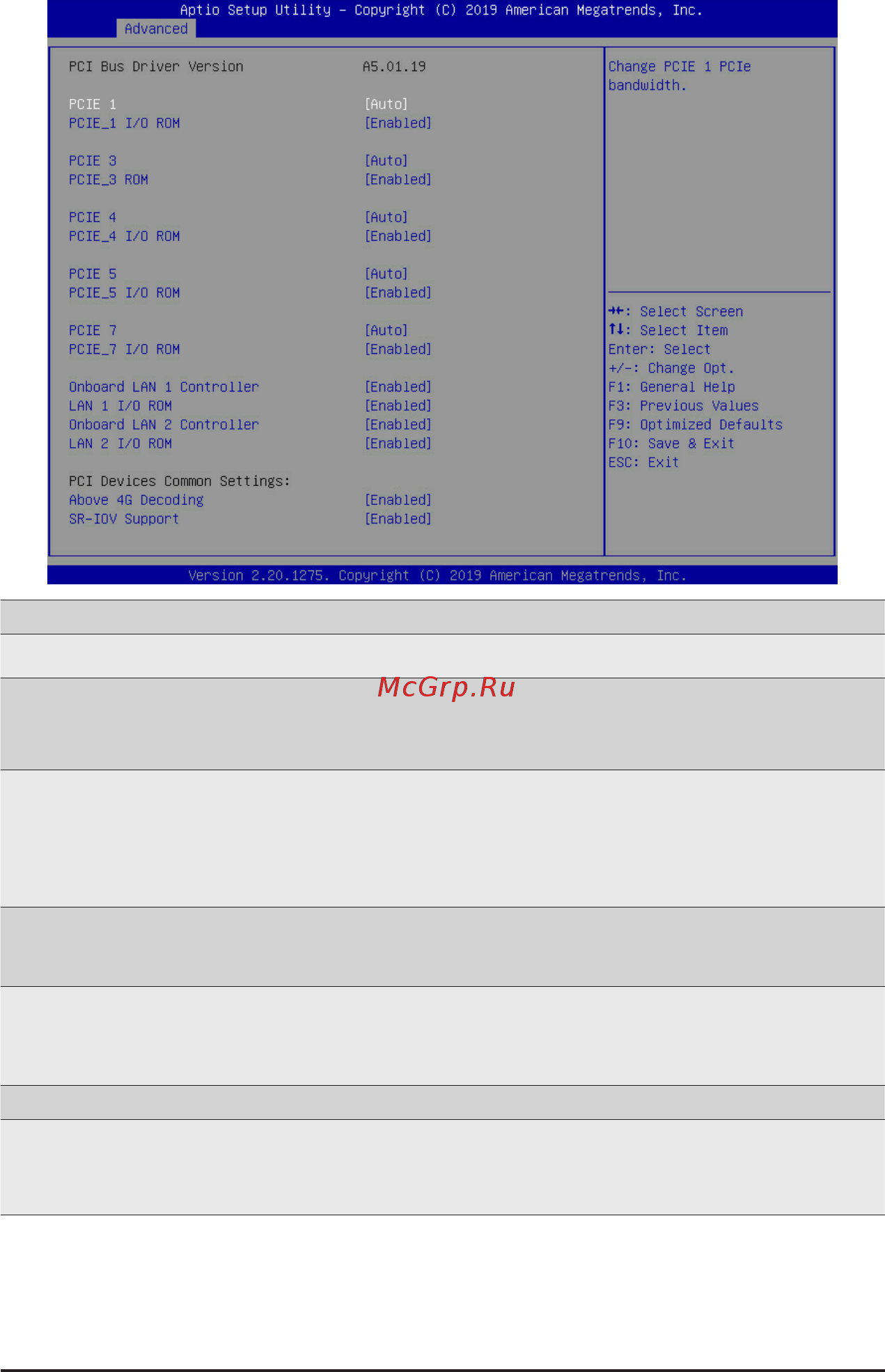

2-2-7 PCI Subsystem Settings
Parameter
Description
PCI Bus Driver Version
Displays the PCI Bus Driver version information.
PCIE_#
(Note1)
LanesConguration
Change the PCIe lanes.
Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8,
x4x4x4x4. Default setting is Auto.
PCI Express Slot # I/O ROM
(Note1)
When enabled, this setting will initialize the device expansion ROM
for the related PCI-E slot.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN1 / LAN2 Controller
(Note2)
Enable/Disable the onboard LAN1 / LAN2 devices.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN1 / LAN2 I/O ROM
(Note2)
Enable/Disable the onboard LAN1 / LAN2 devices, and initializes
device expansion ROM.
Options available: Enabled/Disabled. Default setting is Enabled.
PCI Devices Common Settings
Above 4G Decoding
Enable/Disable memory mapped I/O to 4GB or greater address
space (Above 4G Decoding).
Options available: Enabled/Disabled. Default setting is Enabled.
(Note1) This section is dependent on the available PCIe Slot.
(Note2) This section is dependent on the available LAN controller.
