- 63 - BIOS Setup

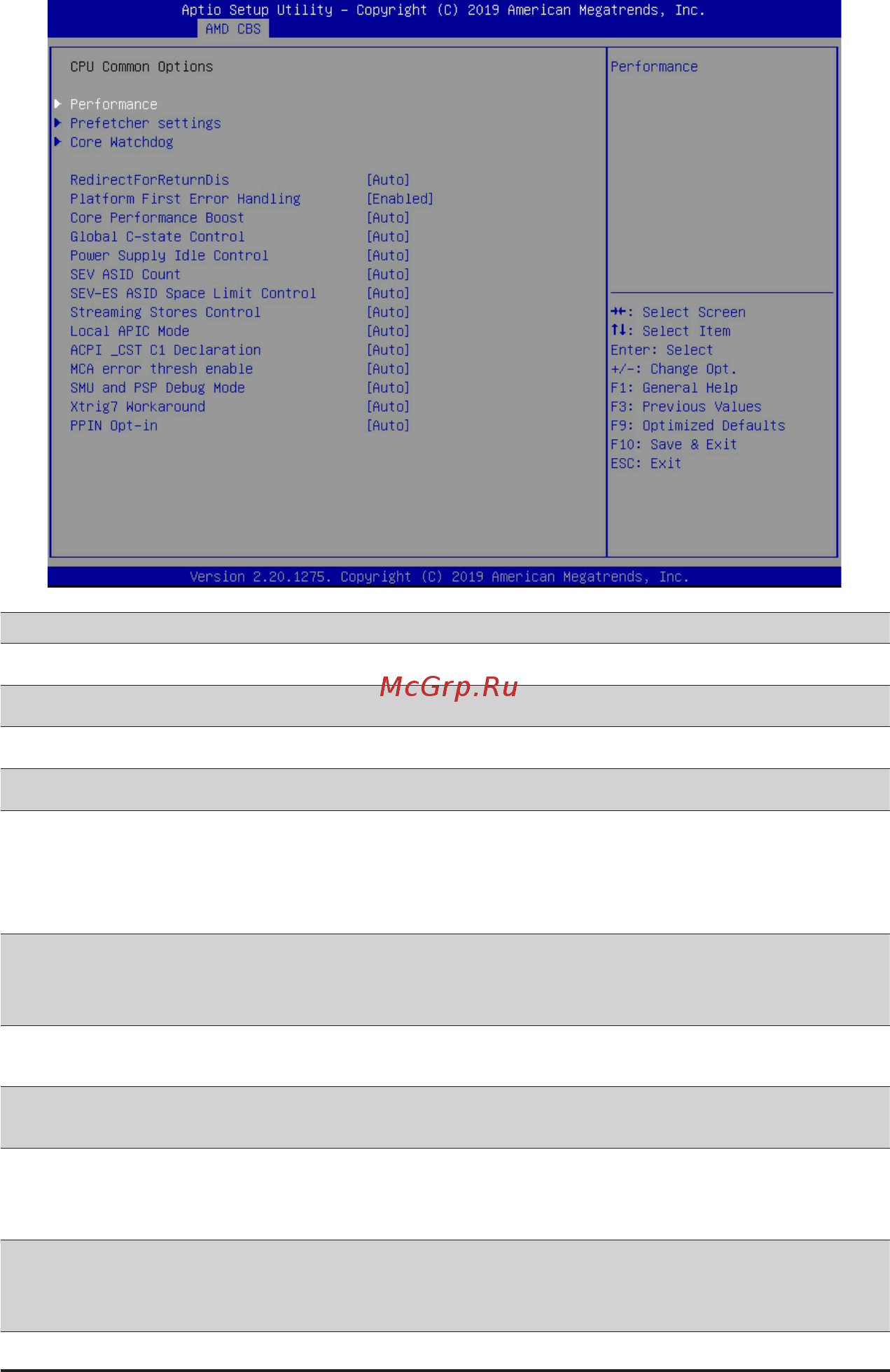

2-3-1 CPU Common Options
Parameter Description
CPU Common Options
Performance Press[Enter]forcongurationofadvanceditems.
Prefetcher settings Press[Enter]forcongurationofadvanceditems.
Core Watchdog Press[Enter]forcongurationofadvanceditems.
RedirectForReturnDis
From a workaround for GCC/C000005 issue for XV Core on CZ A0,
settingMSRC001_1029DecodeConguration(DE_CFG)bit14
[DecfgNoRdrctForReturns] to 1.
Options available: Auto
,
1, 0. Default setting is Auto.
Platform First Error Warning
Enable/Disable PFEH, cloak individual banks, and mask deferred error
interrupts from each bank.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Core Performance Boost
Enable/Disable the Core Performance Boost function.
Options available: Auto/Disabled. Default setting is Auto.
Global C-State Control
Controls the IO based C-state generation and DF C-states.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Power Supply Idle Control
ConguresthePowerSupplyIdleControl.
Options available: Auto, Low Current Idle, Typical Current Idle. Default
setting is Auto.
SEV ASID Count
SpeciesthemaximumvalidASID,whichaffectsthemaximumsystem
physical address space.
Options available: Auto, 253 ASIDs, 509 ASIDs. Default setting is Auto.
