Gigabyte MZ01-CE0 (rev. 2.x) [71/137] 3 2 3 acpi

- 71 - BIOS Setup

2-3-2-3 ACPI

Parameter Description

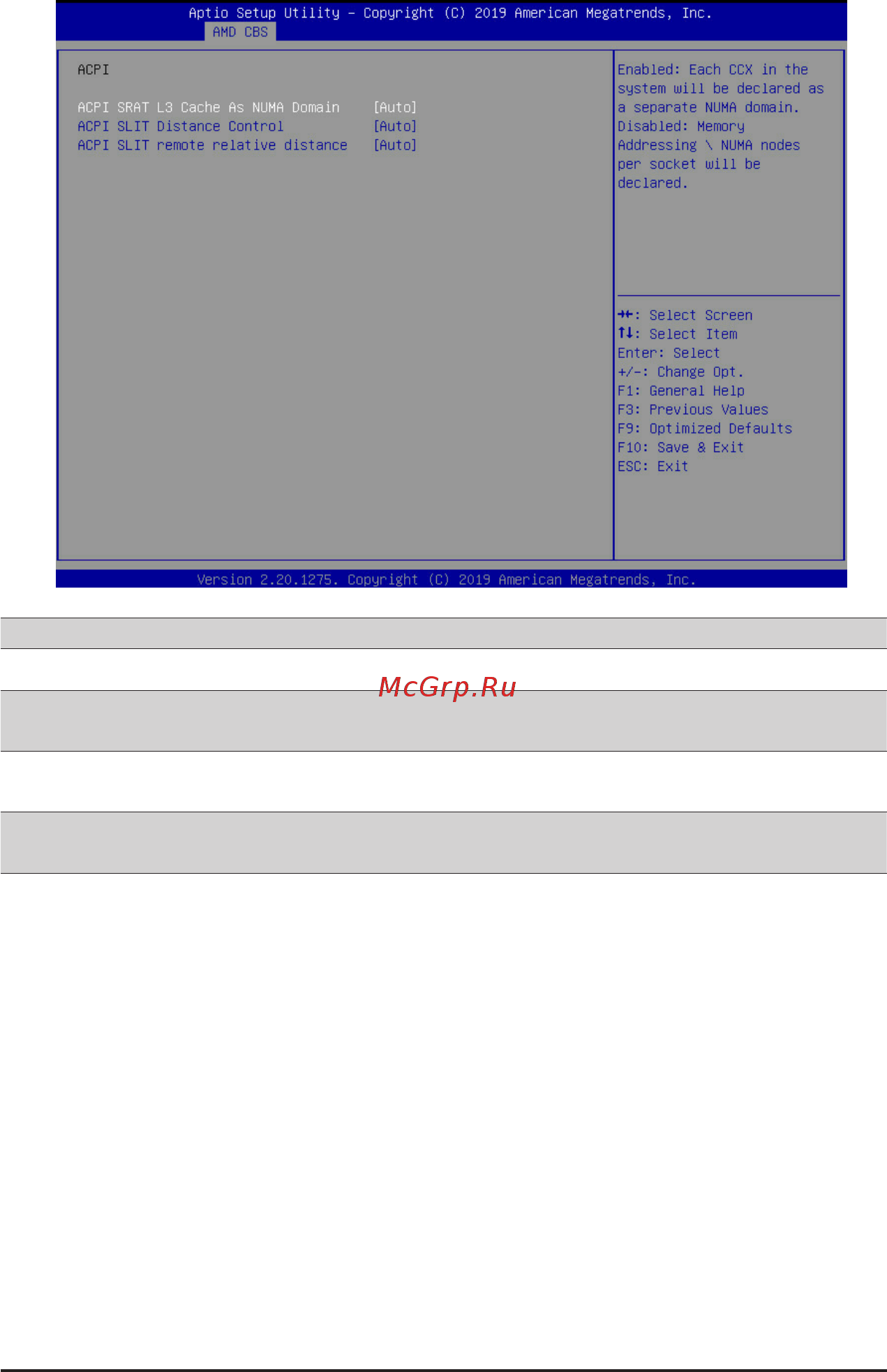

ACPI

ACPI SRAT L3 Cache As

NUMA Domain

Enable/Disable the ACPI SRAT L3 Cache As NUMA Domain function.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

ACPI SLIT Distance Control

Determines how the SLIT distances are declared.

Options available: Auto/Manual. Default setting is Auto.

ACPI SLIT remote relative

distance

Sets the remote socket distance for 2P systems as near (2.8) or far (3.2).

Options available: Auto, Near, Far. Default setting is Auto.
