Gigabyte MZ01-CE0 (rev. 2.x) [96/137] 3 7 soc miscellaneous control

BIOS Setup - 96 -

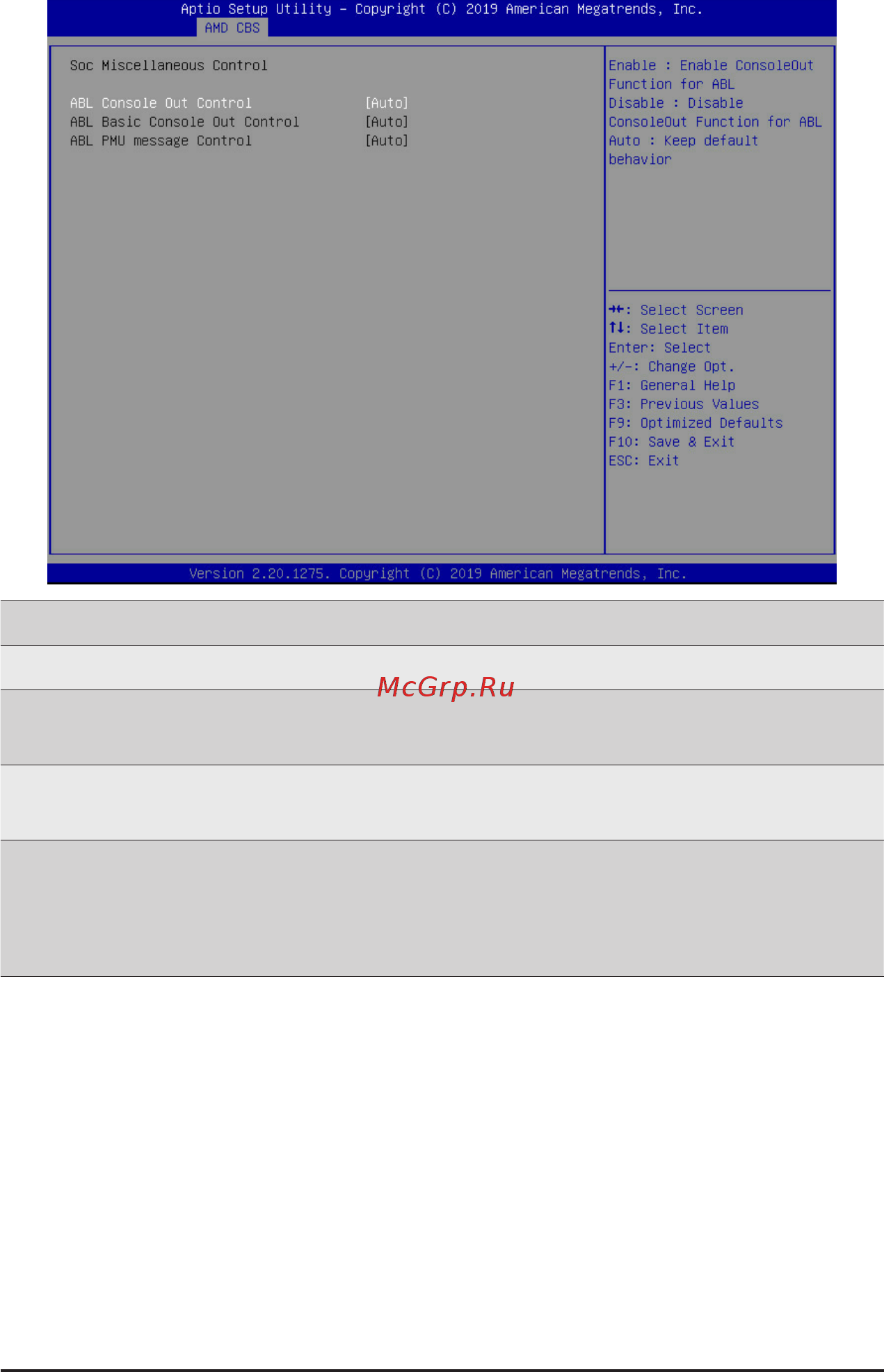

2-3-7 SOC Miscellaneous Control

Parameter

Description

SOC Miscellaneous Control

ABL Console Out Control

Enable/Disable the ConsoleOut function for ABL.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

ABL Basic Console Out

Control

Enable/Disable the Basic ConsoleOut function for ABL.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

ABL PMU message

Control

(Note)

To Control the total number of PMU debug messages.

Options available: Auto, Detailed debug message, Coarse debug message,

Stage completion, Firmware completion message only.

Default setting is Auto.

(Note) This item appears when ABL Console Out Control is set to Enabled.
