2-3-1-2 Prefetcher Settings

Parameter Description

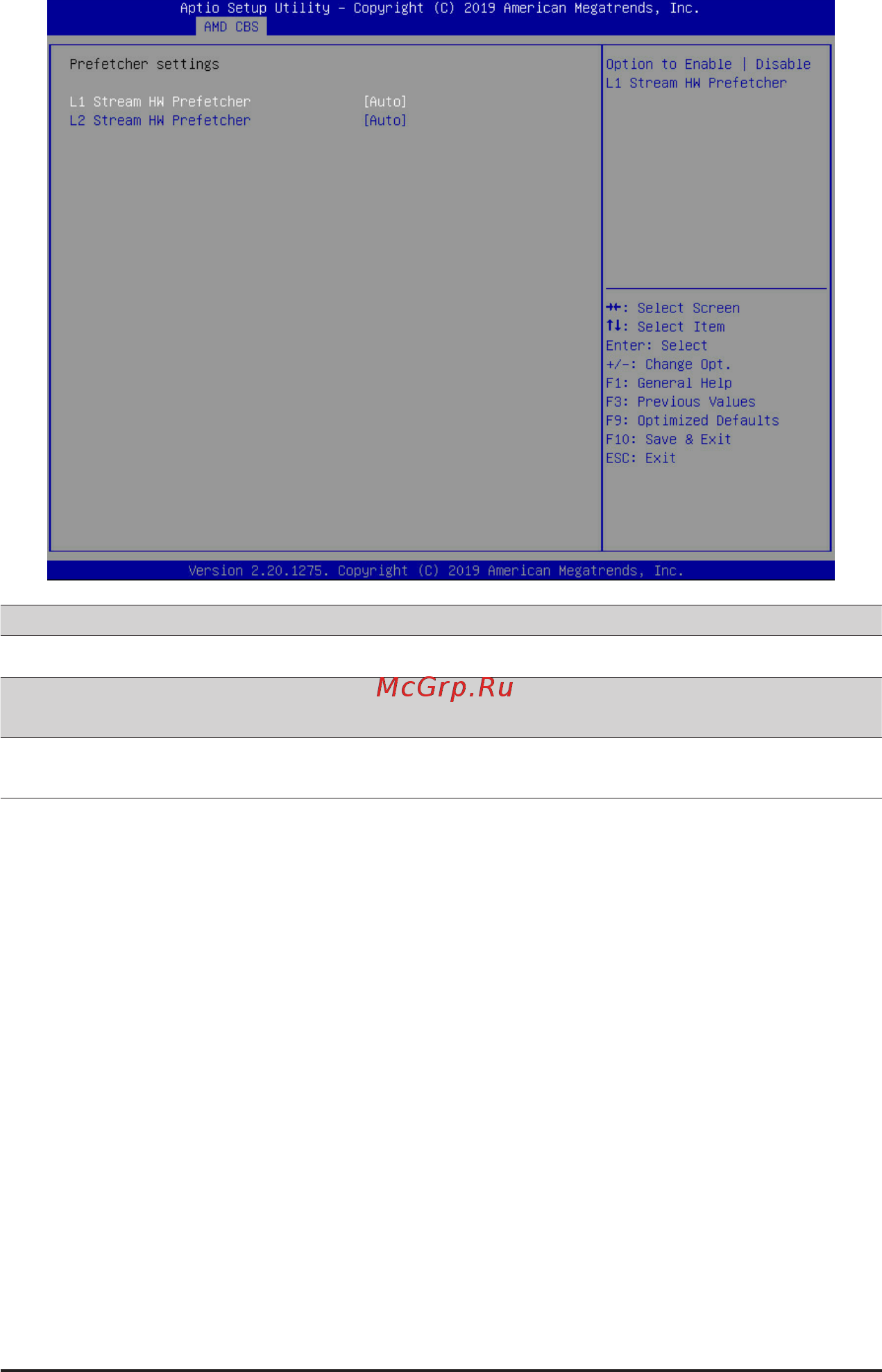

Prefetcher settings

L1 Stream HW Prefetcher

Enable/Disable L1 Stream HW Prefetcher.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

L2 Stream HW Prefetcher

Enable/Disable L2 Stream HW Prefetcher.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
