Gigabyte MZ01-CE0 (rev. 2.x) [33/137] 2 advanced menu

- 33 - BIOS Setup

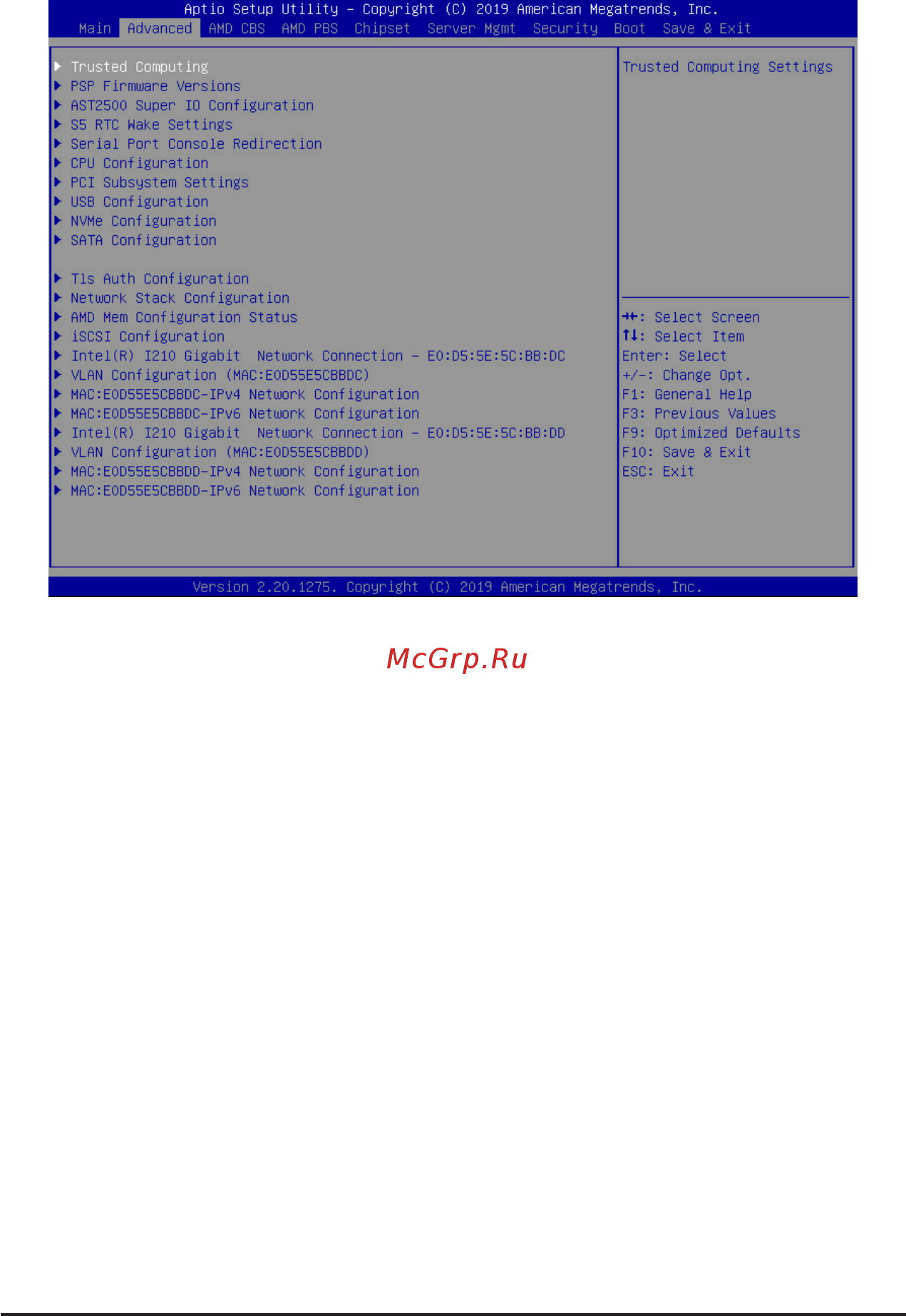

2-2 Advanced Menu

TheAdvancedMenudisplayssubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press <Enter> to access the related submenu screen.
