BIOS Setup - 98 -

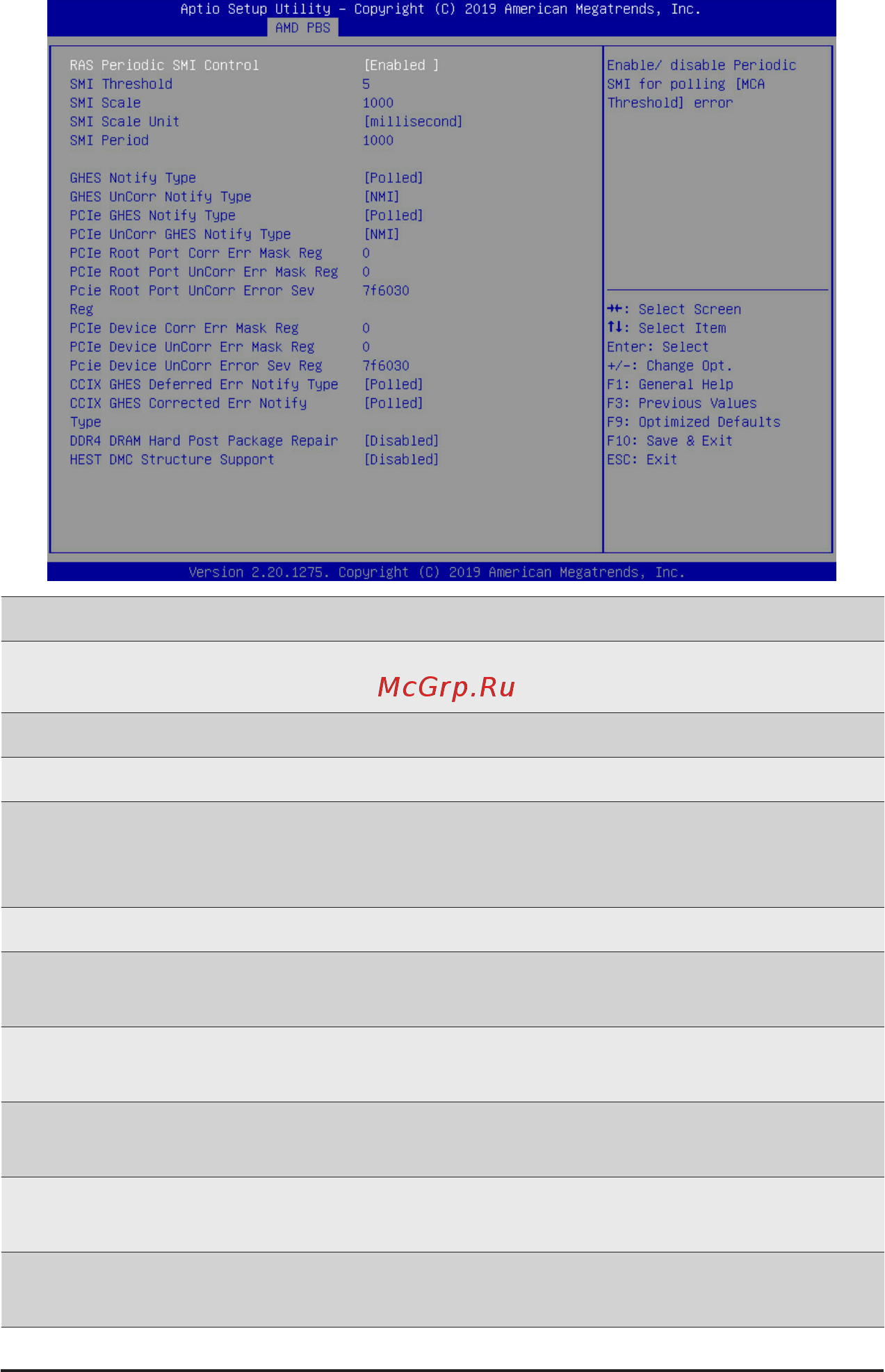

2-4-1 RAS
Parameter
Description
RAS Periodic SMI Control
Enable/Disable the Periodic SMI for polling [MCA Threshold] error.
Options available: Enabled/Disabled. Default setting is Enabled.
SMI Threshold CongurestheSMIThresholdvalue.
SMI Scale CongurestheSMIScalevalue.
SMI Scale Unit
Denestheunitoftimescale.
Options available: millisecond, second, minute. Default setting is
millsecond.
SMI Period CongurestheSMIPeriod.
GHES Notify Type
SelectstheNoticationtypefordeferred/correctederrors.
Options available: Polled/SCI. Default setting is Polled.
GHES UnCorr Notify Type
SelectstheNoticationtypeforuncorrectederrors.
Options available: Polled/NMI. Default setting is NMI.
PCIe GHES Notify Type
SelectstheNoticationtypeforPCIecorrectederrors.
Options available: Polled/SCI. Default setting is Polled.
PCIe UnCorr GHES Notify
Type
SelectstheNoticationtypeforPCIeuncorrectederrors.
Options available: Polled/NMI. Default setting is NMI.
PCIe Root Port Corr Err
Mask Reg
Initialize the PCIe AER Corrected Error Mask register of Root Port.
