Gigabyte MZ01-CE0 (rev. 2.x) [111/137] 8 boot menu

- 111 - BIOS Setup

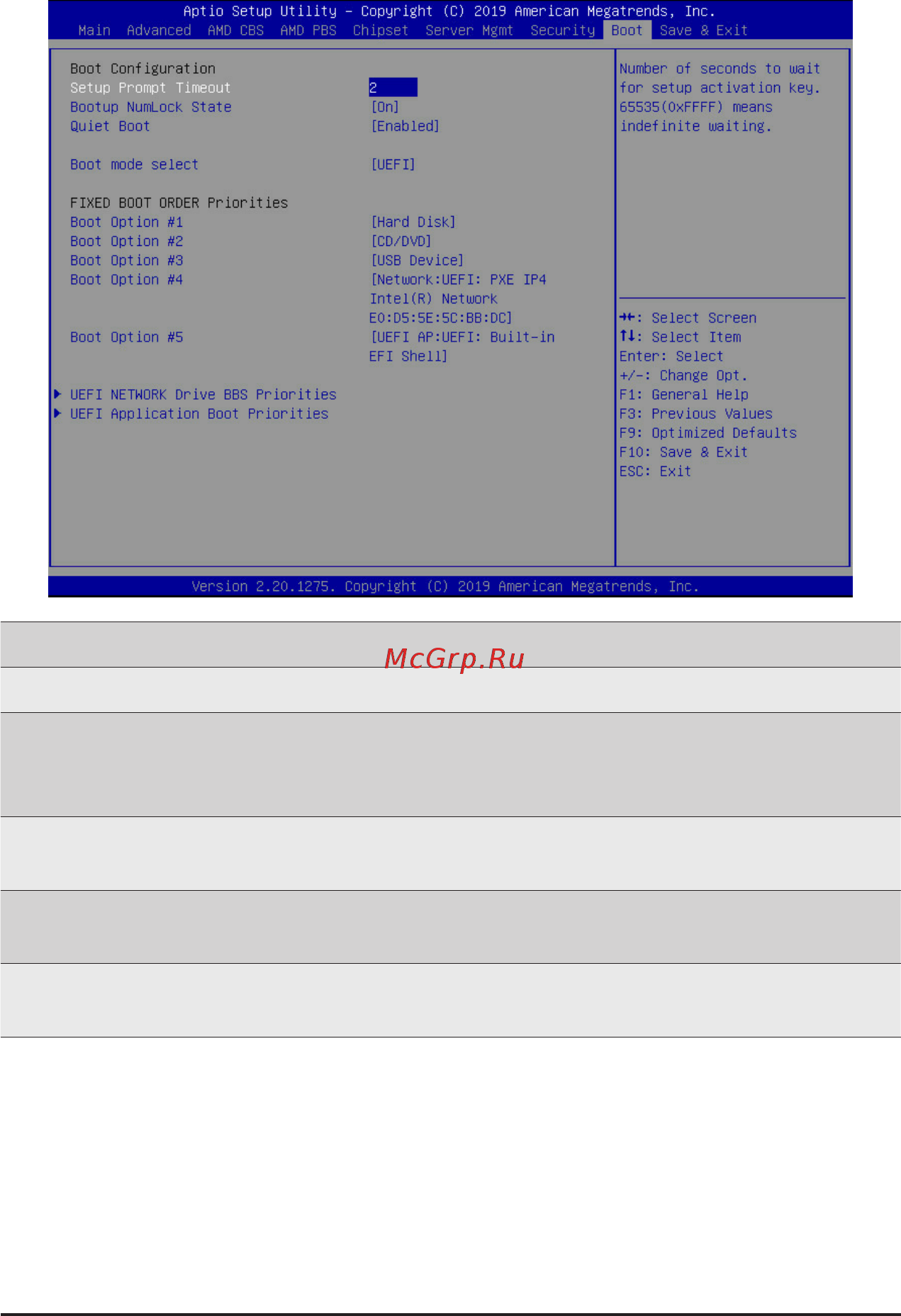

2-8 Boot Menu

The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error

messageifthelegacydrive(s)speciedisnotbootable.

Parameter

Description

BootConguration

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535 (0xFFFF)

meansindenitewaiting.

Press the numeric keys to input the desired values.

Bootup NumLock State

Enable/Disable the Bootup NumLock function.

Options available: On/Off. Default setting is Off.

Quiet Boot

Enable/Disable showing the logo during POST.

Options available: Enabled/Disabled. Default setting is Enabled.

Boot mode select

Selects the boot mode.

Options available: LEGACY/UEFI. Default setting is UEFI.
