- 25 - Hardware Installation
21
21
CPU
DIMM_P0_G0
DIMM_P0_H0
DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_B0
DIMM_P0_A0
DIMM_P0_D0
DIMM_P0_C0
21
21
CPU
DIMM_P0_G0
DIMM_P0_H0
DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_B0
DIMM_P0_A0
DIMM_P0_D0
DIMM_P0_C0

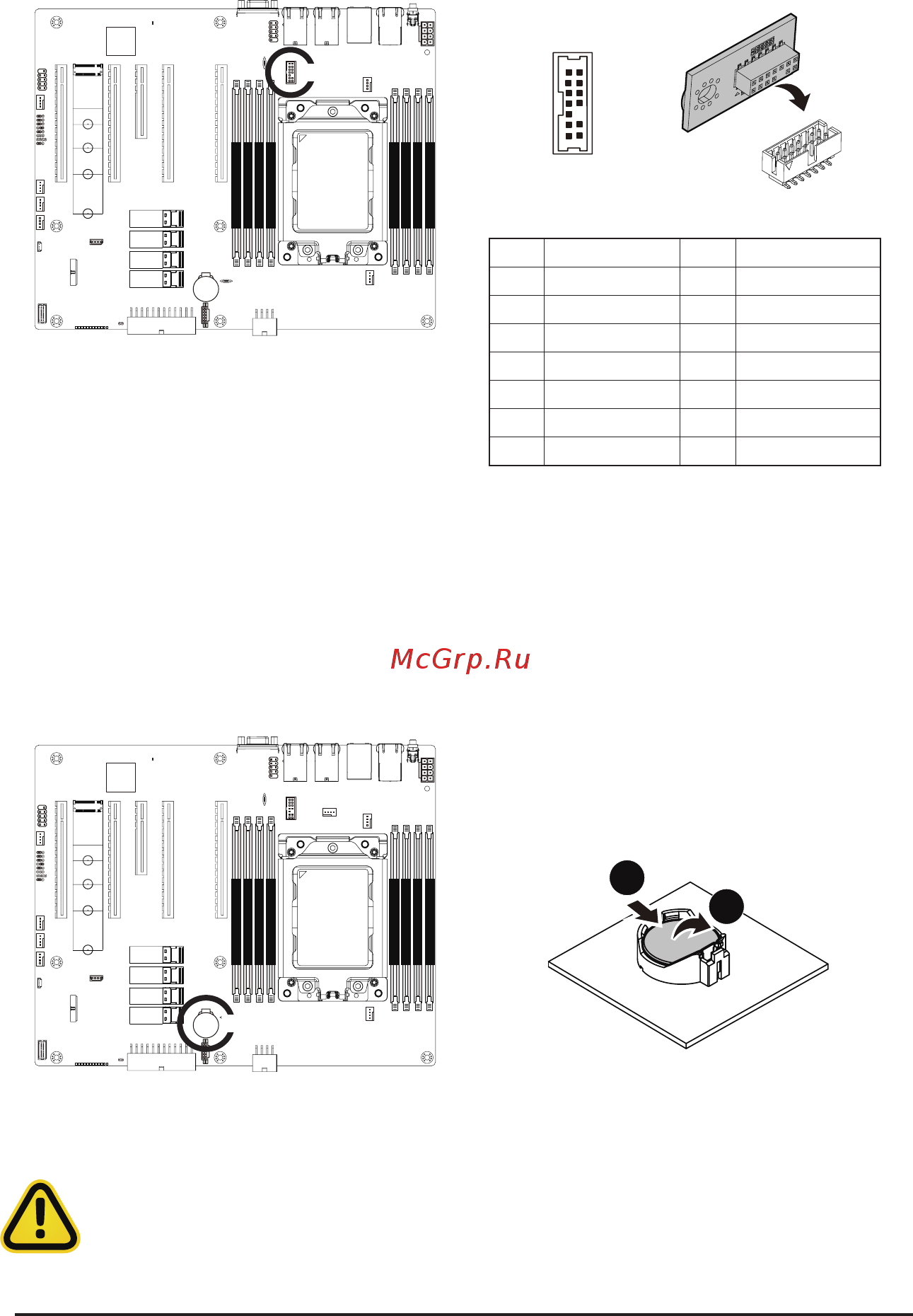

18) TPM_LPC (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
TPM
Pin No. Denition Pin No. Denition
1 Clock 8 No Connect
2 P_3V3_AUX 9 LPC_LAD2
3 LPC_RST 10 No Pin
4 P3V3 11 LPC_LAD3
5 LPC_LAD0 12 GND
6 IRQ_SERIAL 13 LPC_FRAME_N
7 LPC_LAD1 14 GND
19) BAT1 (Battery Scoket)
Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)in
the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level,
or the CMOS values may not be accurate or may be lost.
•
Always turn off your computer and unplug the power cord before replacing the battery.
•
Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect
model.
•
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or
uncertain about the battery model.
•
Used batteries must be handled in accordance with local environmental regulations.
BAT
1
2
1 2
13
