Gigabyte MZ01-CE0 (rev. 2.x) [105/137] 6 2 view fru information

- 105 - BIOS Setup

2-6-2 View FRU Information

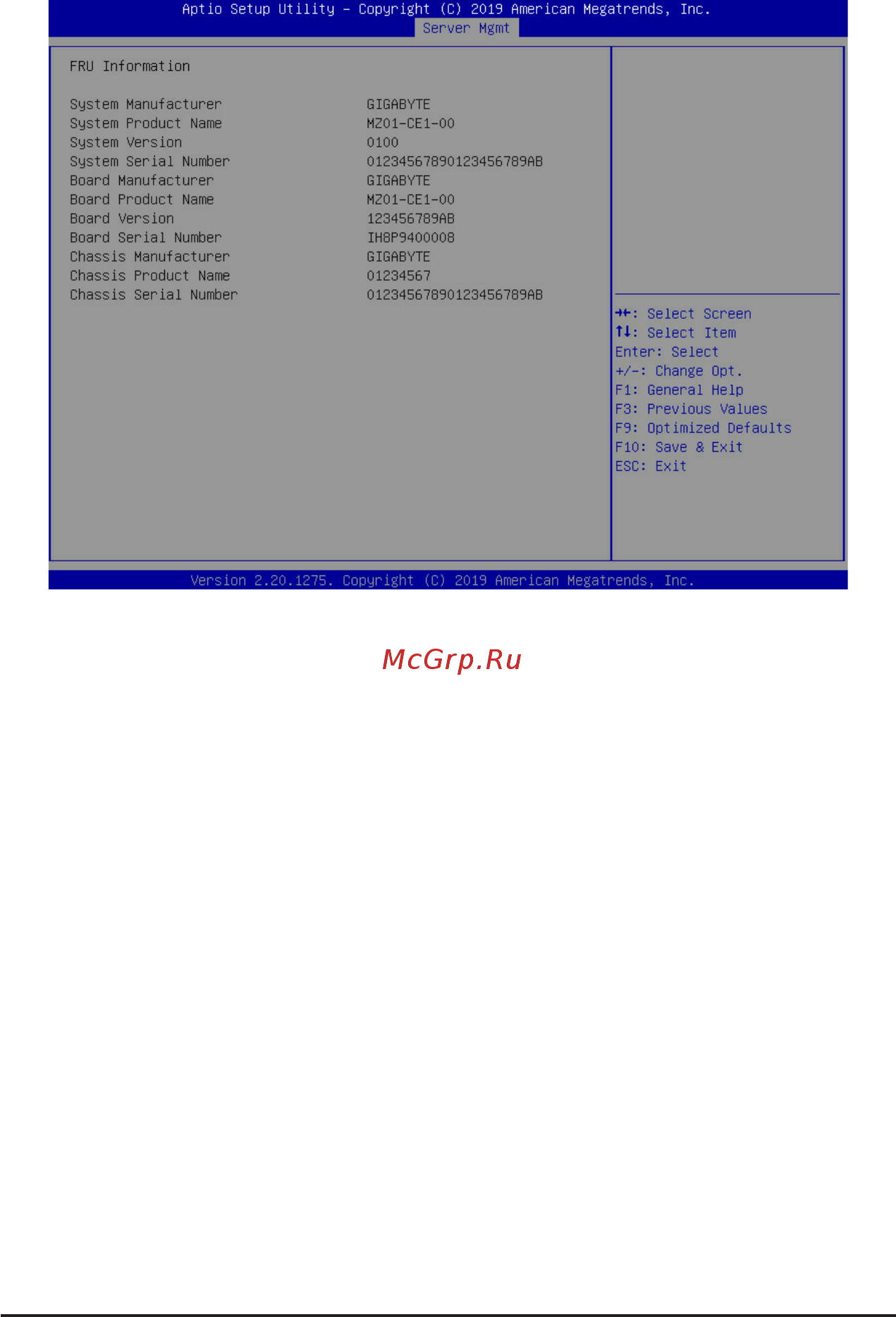

The FRU page is a simple display page for basic system ID information, as well as System product

information.Itemsonthiswindowarenon-congurable.

(Note) The model name will vary depends on the product you purchased
