- 47 - BIOS Setup

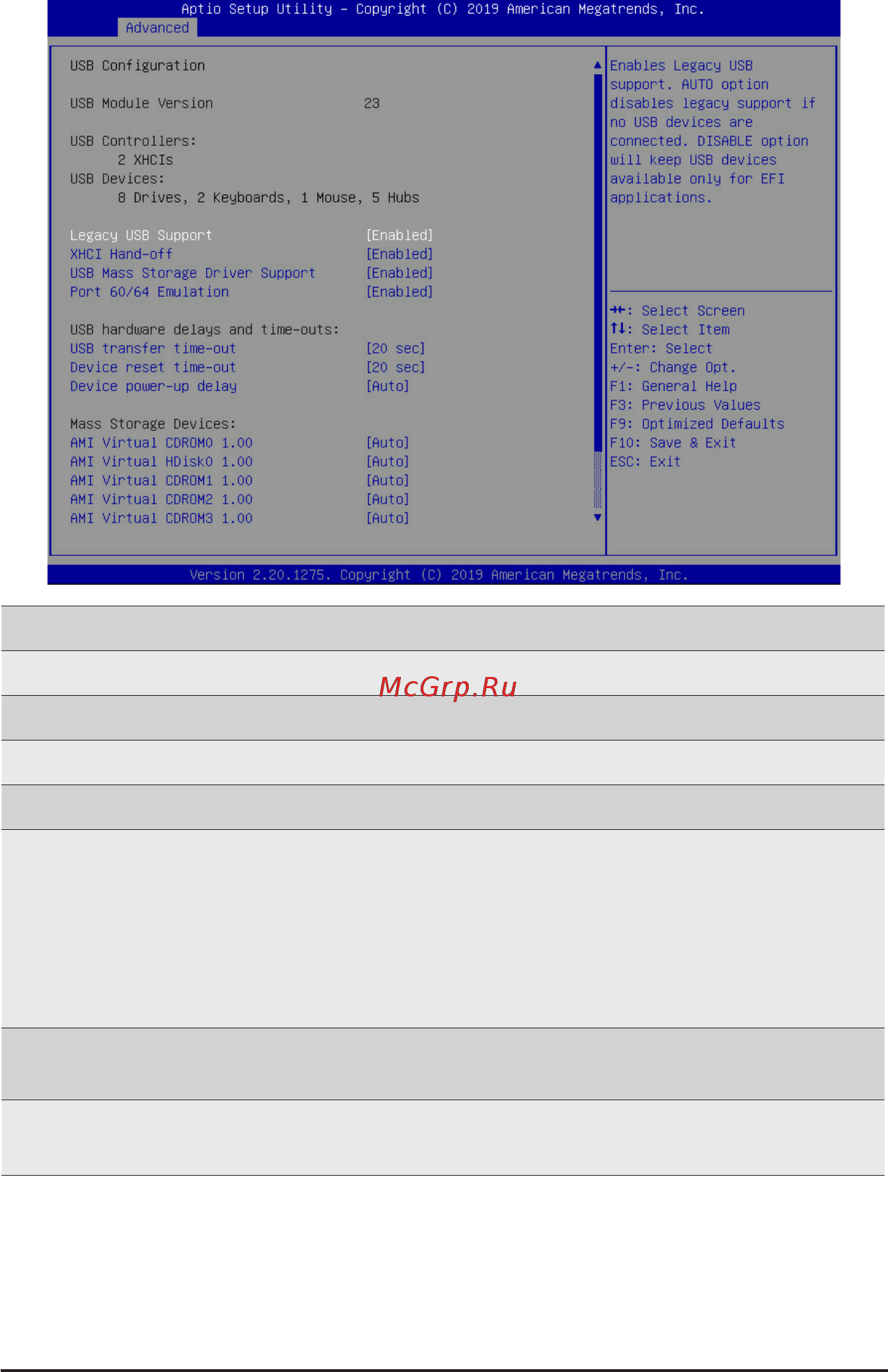

2-2-8 USB Conguration

(Note) This item is present only if you attach USB devices.

Parameter

Description

USBConguration

USB Module Version

Displays the USB module version information.

USB Controllers

Displays the supported USB controllers.

USB Devices:

Displays the USB devices connected to the system.

Legacy USB Support

Enable/Disable the Legacy USB support fuction. AUTO option

disables legacy support if no USB devices are connected.

DISABLE option will keep USB devices available only for EFI

applications.

Options available: Auto/Enabled/Disabled. Default setting is

Enabled.

XHCI Hand-off

Enable/Disable the XHCI (USB 3.0) Hand-off support.

Options available: Enabled/Disabled. Default setting is Enabled.

USB Mass Storage Driver

Support

(Note)

Enable/Disable the USB Mass Storage Driver Support.

Options available: Enabled/Disabled. Default setting is Enabled.
