Gigabyte MZ01-CE0 (rev. 2.x) [80/137] 3 3 1 5 security

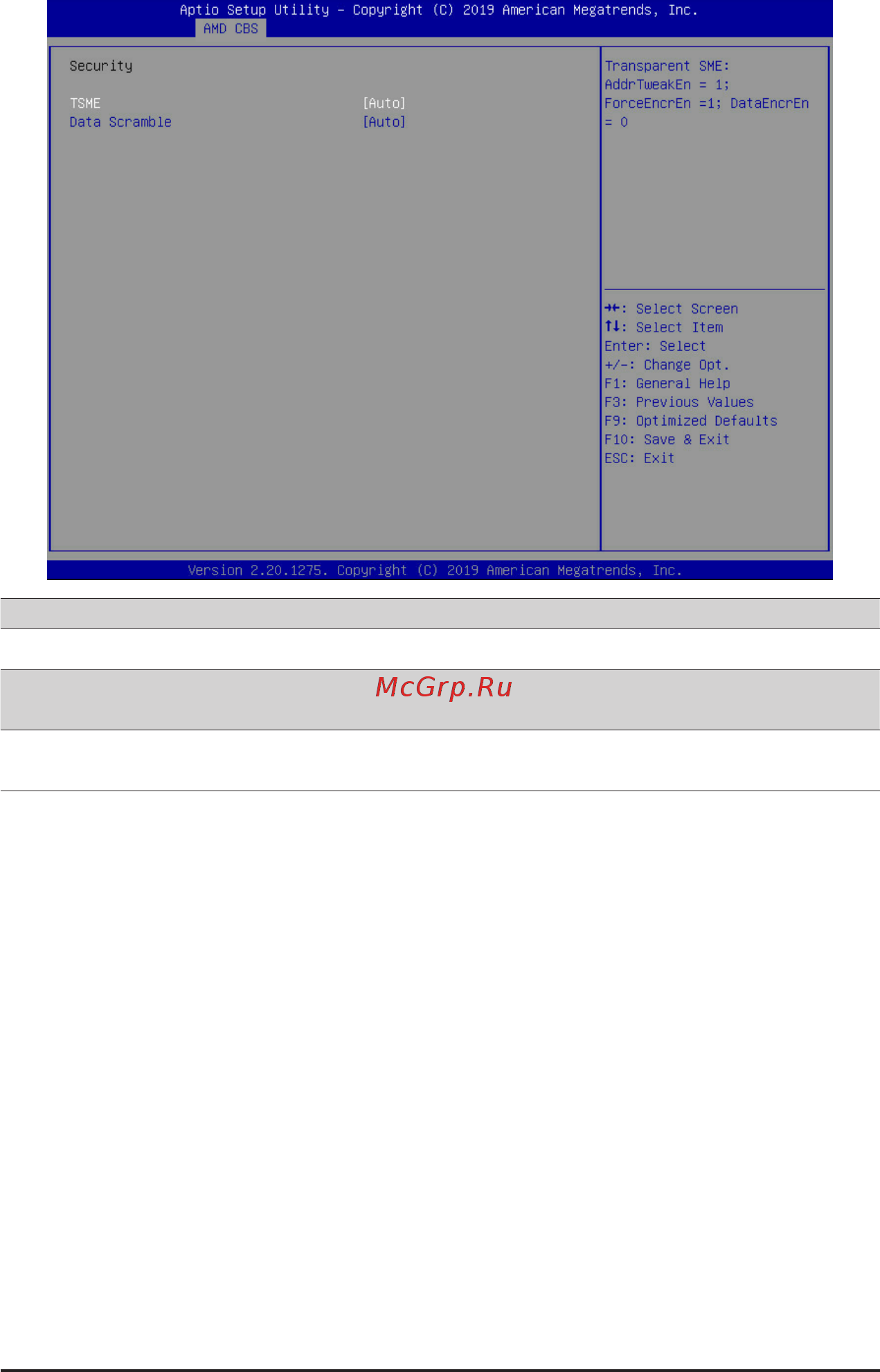

BIOS Setup - 80 -

2-3-3-1-5 Security

Parameter Description

Security

TSME

Enable/Disable Transparent SME.

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Data Scramble

Enable/Disable Data Scrambling.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
