Gigabyte MZ01-CE0 (rev. 2.x) [50/137] 2 10 sata configuration

BIOS Setup - 50 -

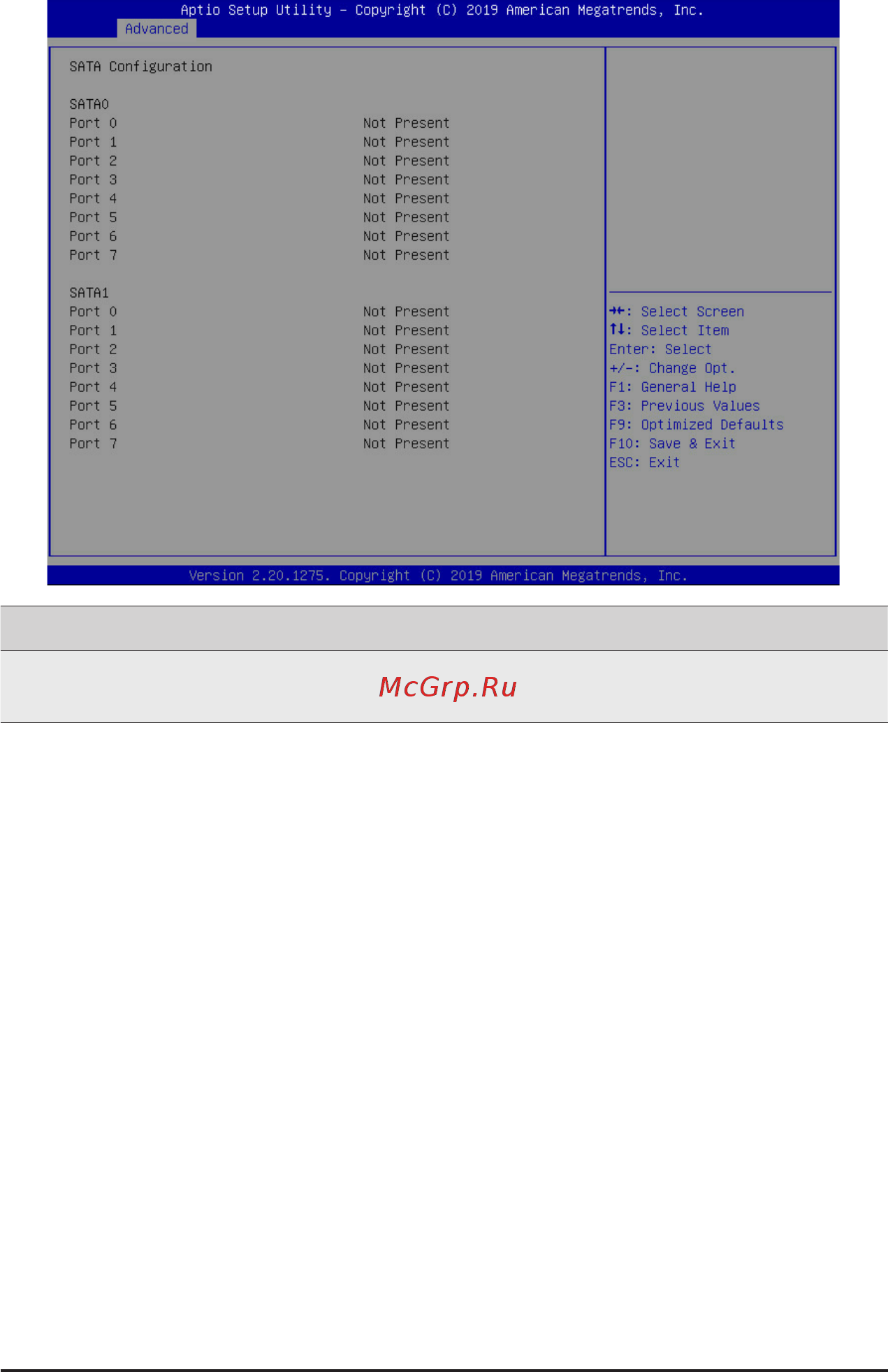

2-2-10 SATA Conguration

Parameter

Description

SATAConguration

Displays the installed HDD devices information. System will automatically

detect HDD type.
