Gigabyte MZ01-CE0 (rev. 2.x) [92/137] 3 5 fch common options

BIOS Setup - 92 -

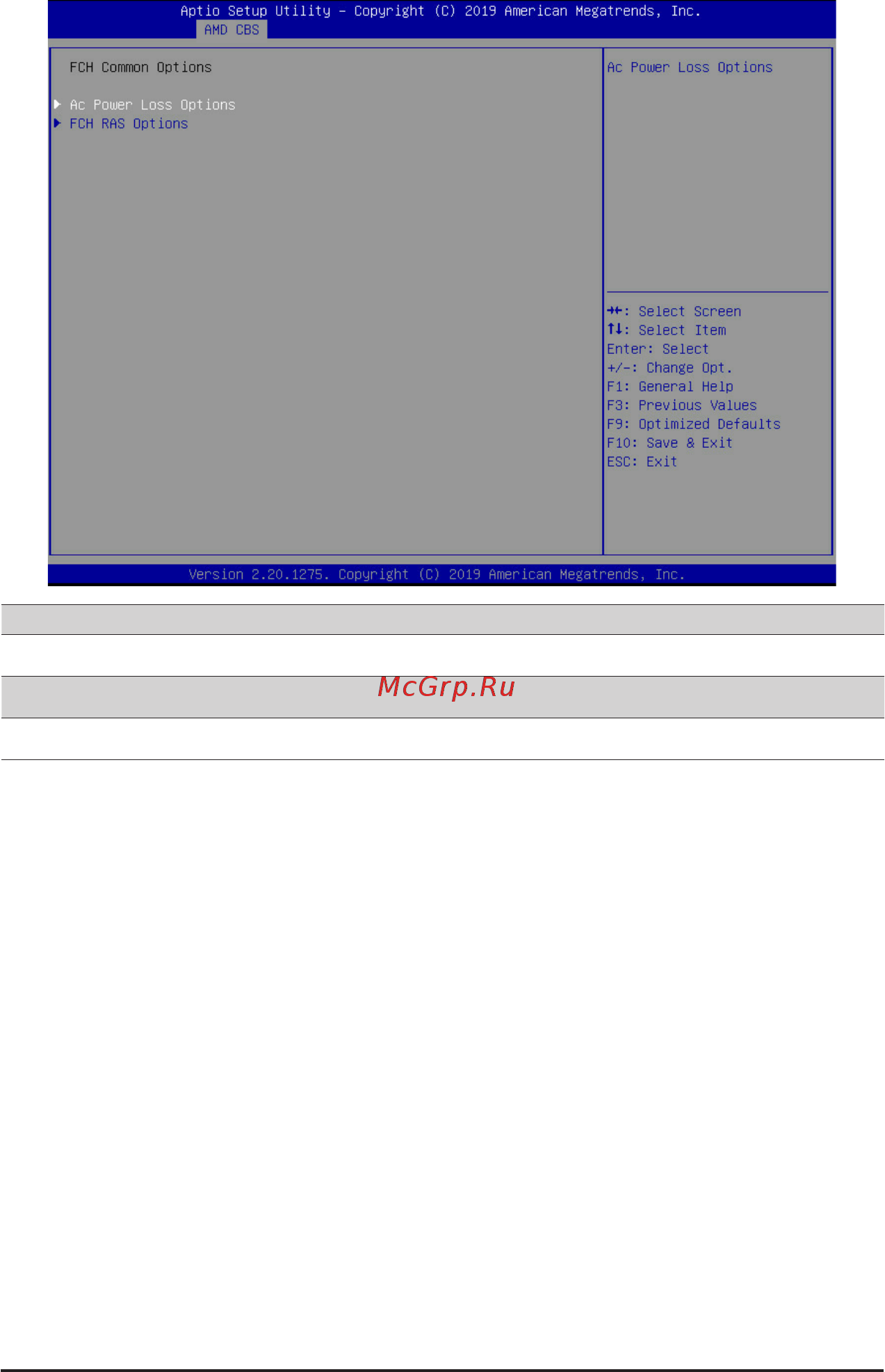

2-3-5 FCH Common Options

Parameter Description

FCH Common Options

AC Power Loss Options Press[Enter]forcongurationofadvanceditems.

FCH RAS Options Press[Enter]forcongurationofadvanceditems.
