Basic Control Si34-803_B
141 Function

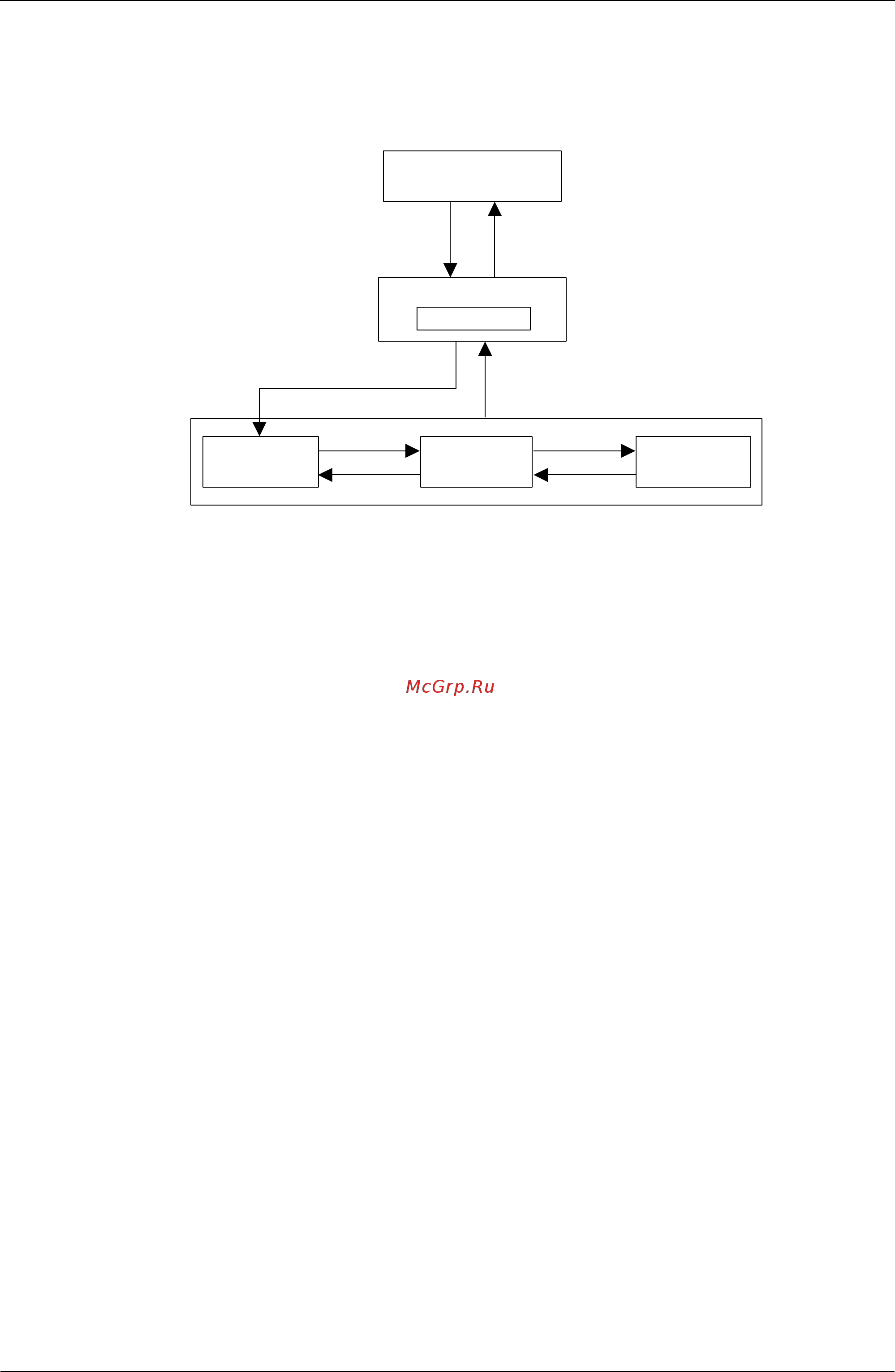

2.5 Outdoor Unit Fan Control in Cooling Operation
While in cooling operation, if the outdoor temperature is low, this mode provides high pressure
control using the outdoor unit fan to retain appropriate liquid pressure, thus ensuring refrigerant
circulation rate to be supplied to indoor units.
Upper limit of fan
revolutions: Step 8
Upper limit of outdoor unit
fan revolutions
Step 7
-1 step on
outdoor unit fan
+1 step on
outdoor unit fan
Pc
<
2.75MPa
PI control
Pc
>
3.24MPa
Lapse of 20 sec.
PI control
PI control
*For fan revolutions in each step,
refer to information on P.140.
Lapse of 20 sec.
Hold the
current step on
outdoor unit fan
