Troubleshooting by Remote Controller Si34-803_B
249 Troubleshooting

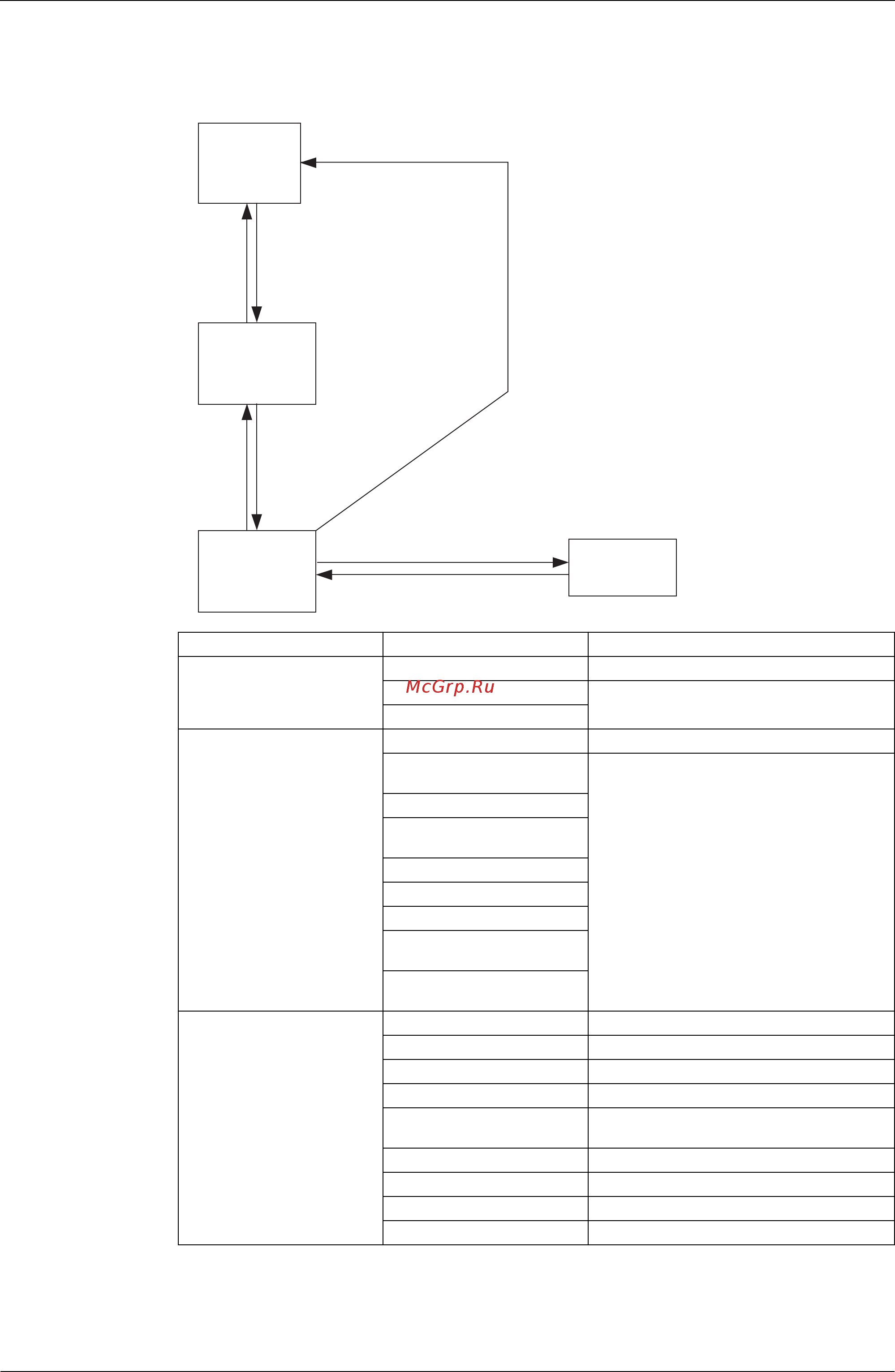

2.3.2 BRC1E61
Operating the remote controller allows service data to be acquired and various services to be
set.
Service Menu Item 2 Remarks
1. Model Name Display 1.Unit No. Select the Unit No. you want to check.
2.Indoor unit
3.Outdoor unit
2. Operating Hours Display 1.Unit No. Select the Unit No. you want to check.
2.Indoor unit operating
time
All of these are displayed in hours.
3.Indoor fan operation
4.Indoor unit energized
time
5.Outdoor operating time
6.Outdoor fan 1 operation
7.Outdoor fan 2 operation
8.Outdoor comp. 1
operation
9.Outdoor comp. 2
operation
3. Indoor Status Display
1/2
1.Unit No. Select the Unit No. you want to check.
2.FAN Tap, speed (rpm)
3.FLAP Swing, fixed
4.Speed Fan speed (rpm)
5.EV Degree that electronic expansion valve is
open (pls)
6.MP Drain pump ON/OFF
7.52H Electric heater ON/OFF
8.Hu Humidifier ON/OFF
9.Anti-freezing Anti-freezing control ON/OFF
Field setting
menu is
displayed.
Basic
screen is
displayed.
Press and hold Cancel button
for 4 seconds or more.
Press Cancel
button.
Press and hold
Cancel button
for 4 seconds
or more.
Press
Cancel
button
once.
Select the desired item from
the Service menu, and then
press Menu/Enter button.
Service
menu is
displayed.
Item 2 is
displayed.
Press
Cancel
button
once.
Press Cancel button.
Select the desired Unit No.
using the S/T (Up/Down)
buttons. The corresponding
data will be displayed.
