Troubleshooting by Indication on the Remote Controller Si34-803_B
261 Troubleshooting
3.4
“
A6
”
Indoor Unit: Fan Motor (M1F) Lock, Overload
Remote
Controller
Display
A6
Applicable
Models
All indoor units (except FXMQ-P)
Method of
Malfunction
Detection
Detection by failure of signal for detecting number of turns to come from the fan motor
Malfunction
Decision
Conditions
When number of turns can not be detected even when output voltage to the fan is maximum
Supposed
Causes
Fan motor lock
Disconnected or faulty wiring between fan motor and PCB

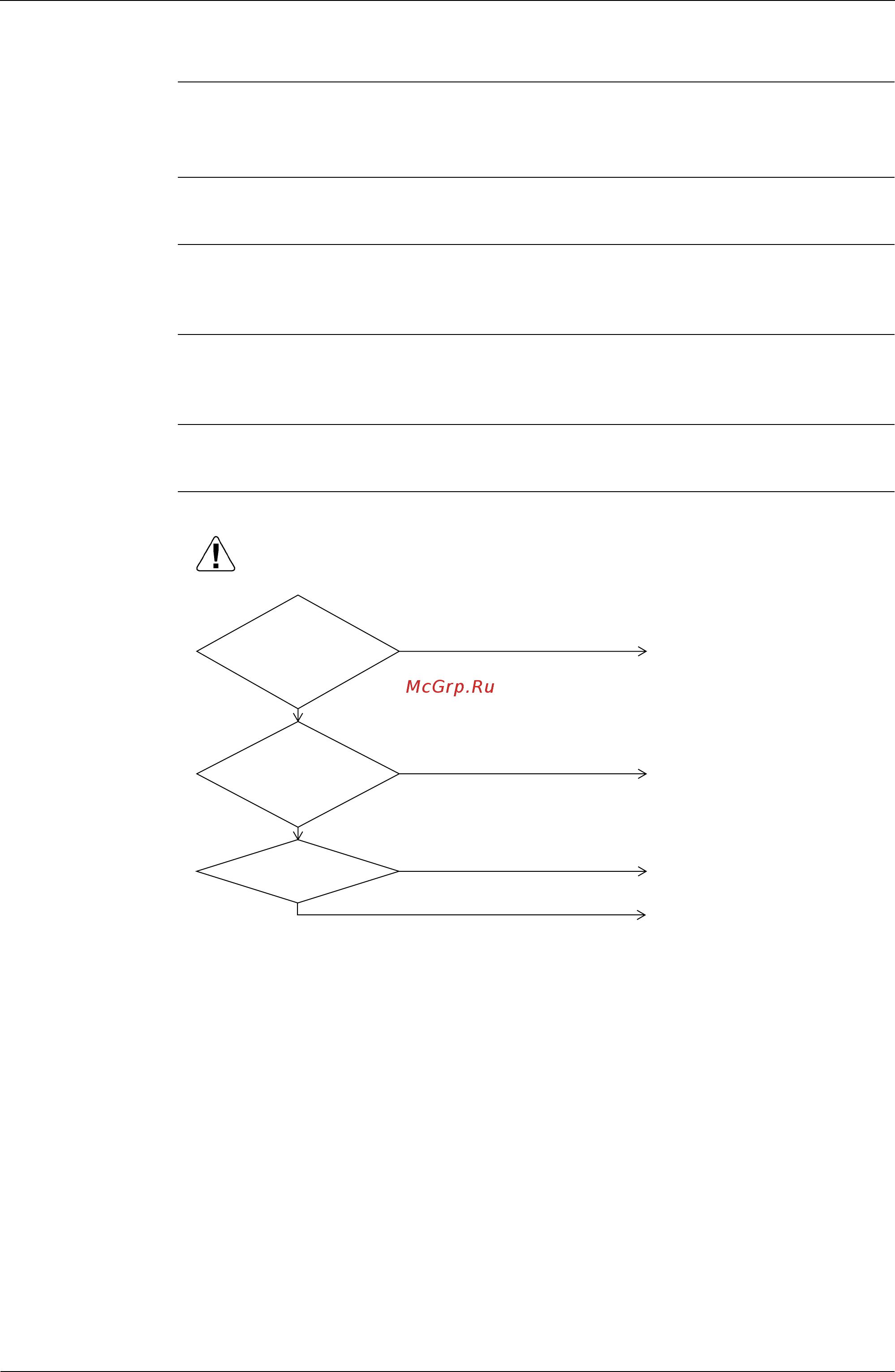

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Connect the wiring and turn on
again.
Fix the wiring and turn on again.
YES
NO
NO
NO
YES
YES
Replace the indoor unit PCB.
Replace the fan motor.
Is the
wiring from the fan
motor securely connected
to connectors on the
indoor unit
PCB?
Wiring
between the
indoor unit PCB and
fan motor is
disconnected.
Does the fan motor run?
