Daikin RXYQ36PAYL [289/452] Indoor unit malfunction of humidity sensor system
![Daikin RXYQ36PAYL [289/452] Indoor unit malfunction of humidity sensor system](/views2/1716343/page289/bg121.png)
Si34-803_B Troubleshooting by Indication on the Remote Controller
Troubleshooting 278
3.15
“
CC
”
Indoor Unit: Malfunction of Humidity Sensor System
Remote
Controller
Display
CC
Applicable
Models
FXFQ
Method of
Malfunction
Detection
Even if a malfunction occurs, operation still continues.
Malfunction is detected according to the moisture (output voltage) detected by the moisture
sensor.
Malfunction
Decision
Conditions
When the moisture sensor is disconnected or short-circuited
Supposed
Causes
Faulty sensor
Disconnection

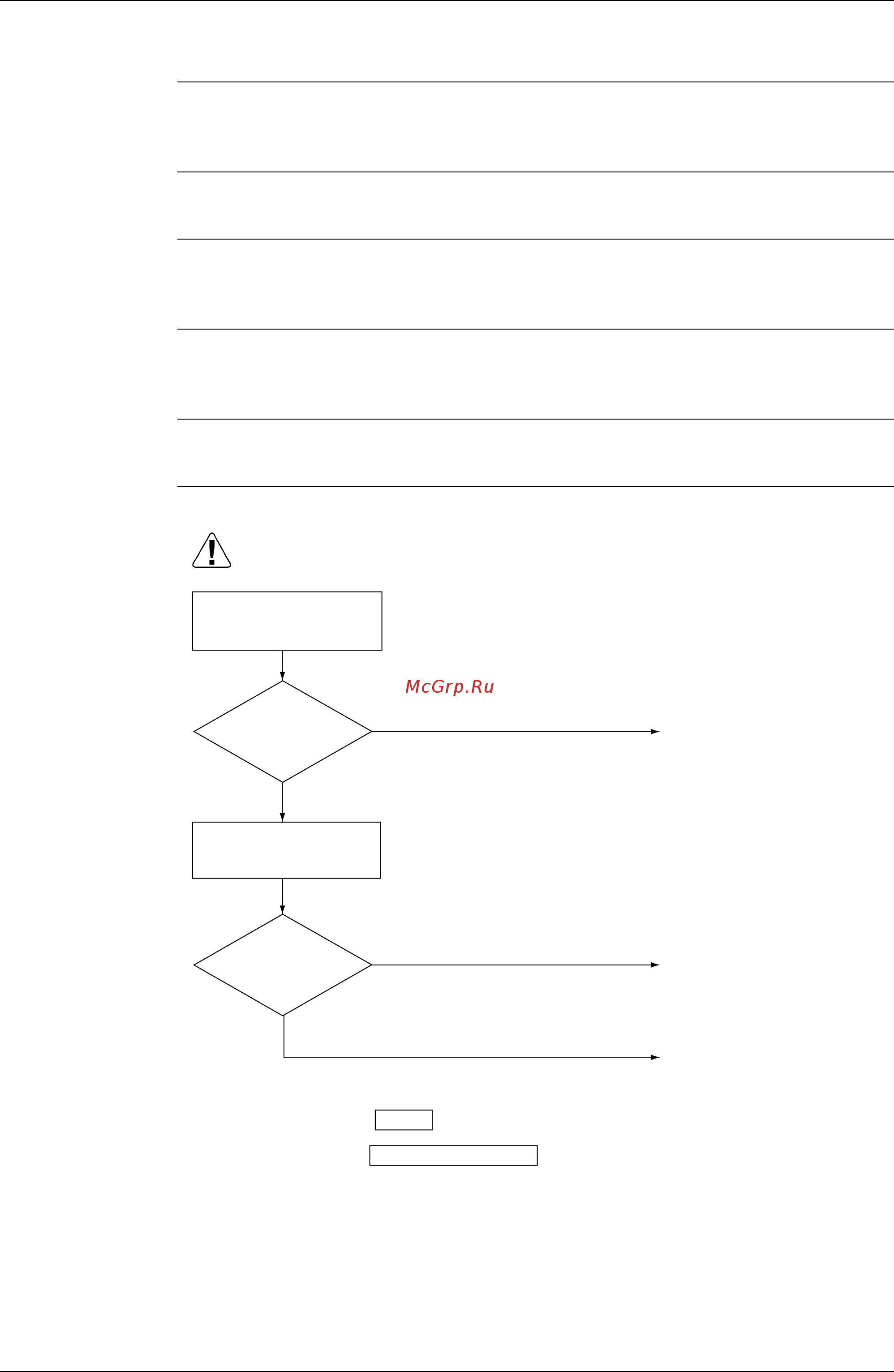

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
YES
NO
YES
NO
Remove the humidity sensor
from the indoor unit PCB
and insert it again.
It is normal.
(Poor connector contact)
Replace the humidity sensor
PCB (A2P).
*3
It is believed that external factors
(noise or else) other than failure
caused the malfunction.
*1: To delete the history, the ON/OFF button of the remote controller must be pushed and
held for 5 seconds in the check mode.
*2: To display the code, the Inspection/Test Operation button of the remote controller must be
pushed and held in the normal mode.
*3: If "CC" is displayed even after replacing the humidity sensor PCB (A2P) and taking the
steps *1 and 2, replace the indoor PCB (A1P).
Does it
function normally?
Is "CC"
displayed on
the remote
controller? (*2)
Delete the malfunction code
history from the remote
controller. (*1)
