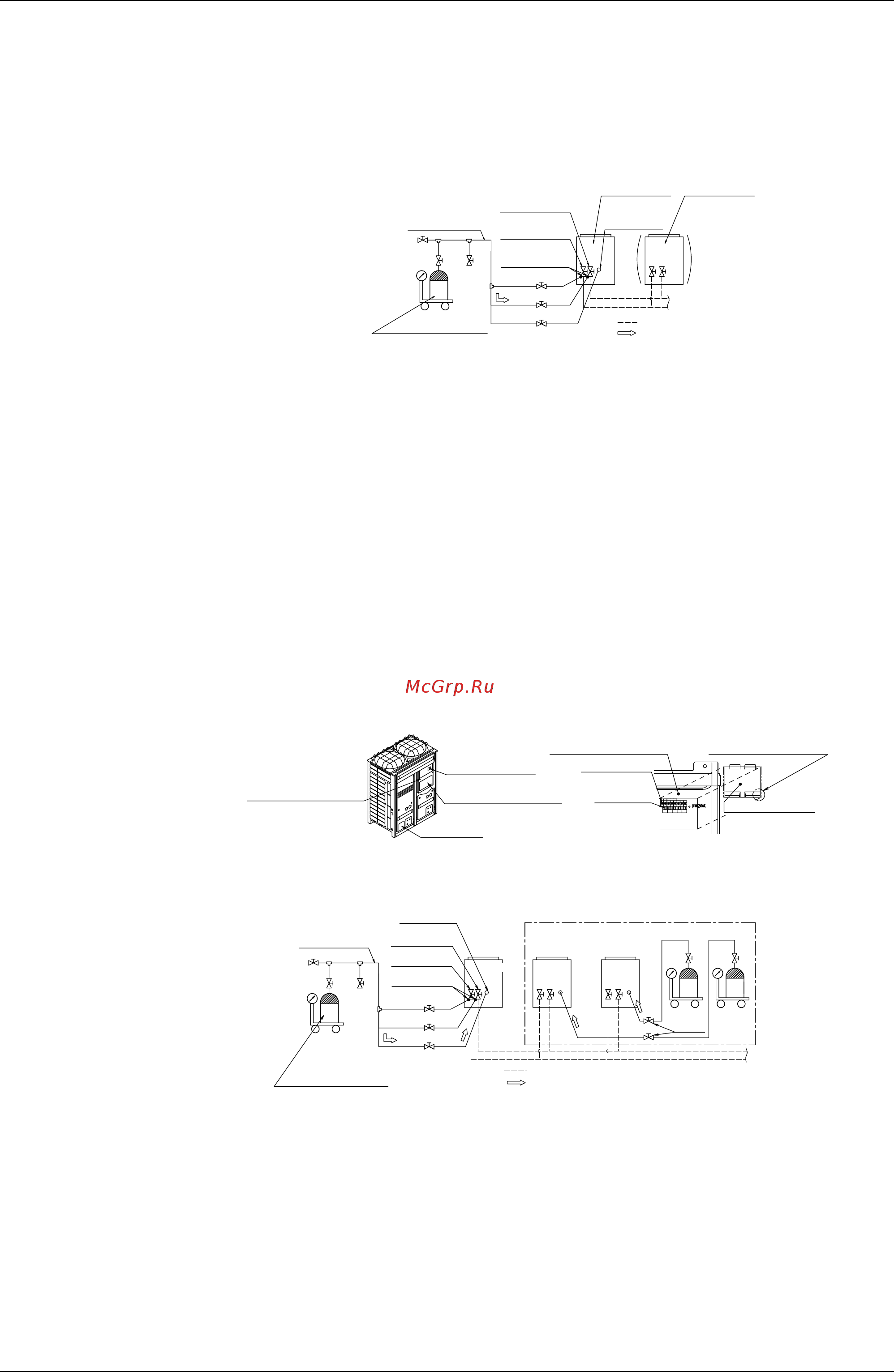

Si34-803_B Test Operation
Test Operation 184
3. Open the valve C (See the figure 2. The valve A, B and the liquid and gas side shutout valve
must be left closed), and charge the refrigerant of the “additional charging amount” from the
liquid side shutout valve service port.
If the “additional charging amount” was charged fully, close the valve C and go to step 5.
If the “additional charging amount” was not charged fully, go to step 4.
4. Perform the refrigerant charging operation following [Refrigerant charging operation
procedure] as shown in page 185, and charge the remaining refrigerant of the “additional
charging amount”. For performing the refrigerant charging operation the BS button on the
PCB (A1P) of outdoor unit (In case of multi system master unit) are use. (See the figure 3) In
addition, the refrigerant are charged from the refrigerant charge port via the valve A.
(See the figure 4)
For operating the BS button and opening and closing the valve, follow the work procedure.
Note:
The refrigerant will be charged about 22kg in one hour at outdoor temp. 30°C DB (6kg at 0°C
DB).
If you need to speed up in case of multi system, connect the refrigerant cylinders to each
outdoor unit as shown in the figure 4.
Measuring device
R-410A cylinder
(with siphon)
Charge hose
Liquid side
shutoff valve
Outdoor unit
Refrigerant flow
Field pipings
fig 2
Refrigerant
charge port
Gus side
shutoff valve
shutoff valve
service port
Valve B
Valve C
Valve A
To indoor unit
Outdoor unit
Pipe intake
Inspection door
Inspection door
LED(H1~8P)
BS button
(BS1~5)
Label
"Service Precaution"
EL. COMPO. BOX lid
EL. COMPO. BOX lid
Lift the protruding
part to open the cover
fig 3
:
:
R-410A cylinder
(with siphon)
Measuring
device
Charge hose
valve A
valve C
valve B
Shutoff valve
service port
Gas side
shutoff valve
Liquid side
shutoff valve
Refrigerant
charge port
Outdoor
unit
Outdoor
unit
Field piping
In case of multi system if you need to speedup.
Refrigerant flow
To indoor unit
valve A
Outdoor
unit
fig 4
