Field Setting Si34-803_B
227 Test Operation
Supplementation on e and f.

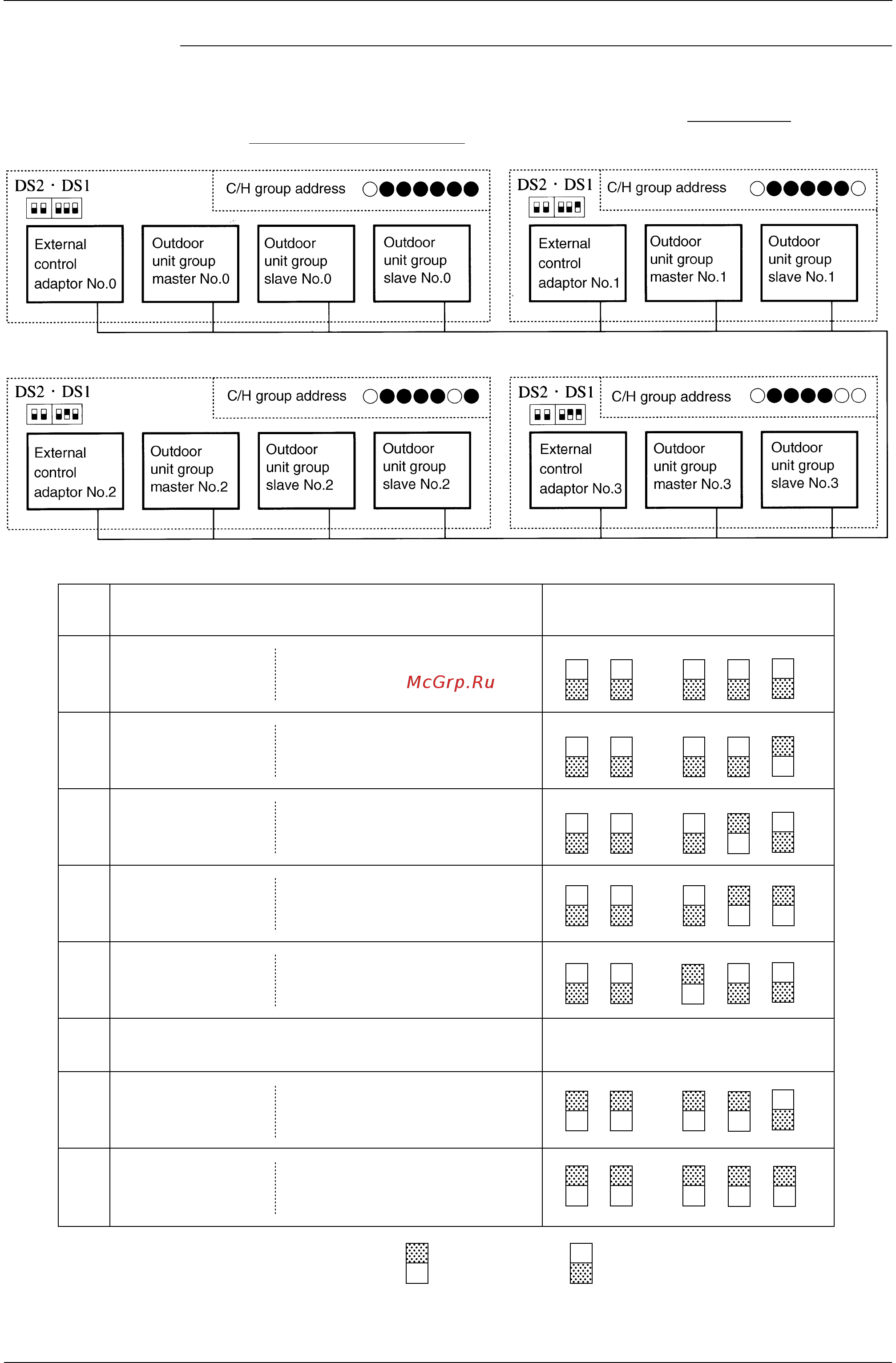

When switching cool/heat for each adaptor PCB with the use of more than one adaptor PCB,
set the address of the external control adaptor for outdoor unit PCB DS1 and DS2
so that it
matches the unified cool/heat address
of outdoor unit main PCB.
Address setting for
e
and
f
(Set lower 5 digits with binary number.) [No.0 to No.31]
Address
No.
Outdoor unit PCB LED
Set with setting mode 2
External control adaptor for outdoor unit
No 0
No 1
No 2
No 3
No 4
No 30
No 31
DS2
DS1
kh hhhhh
kh hhhhk
kh hhhkh
kh hhhkk
kh hhkhh
kh hhhhk
kh kkkkk
0
1
2
3
4
30
31
0
1
2
3
4
30
31
~
~
~
k ON h OFF
Upper position (ON) lower position (OFF)
(The shaded part shows knob)
