Functional Parts Layout Si34-803_B
87 Refrigerant Circuit

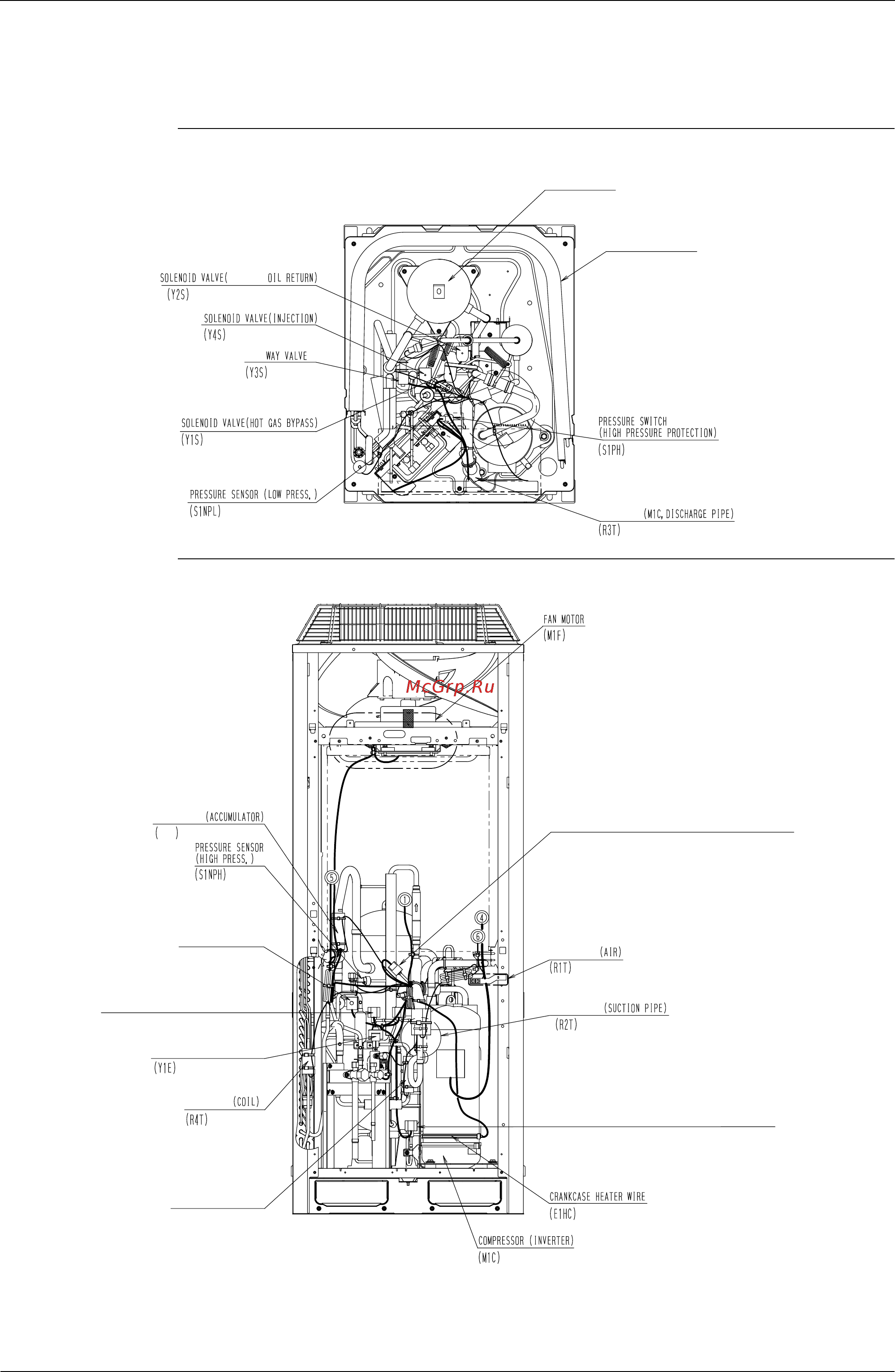

2. Functional Parts Layout
2.1 RXYQ5P(A)
Top View
Front View
THERMISTOR
ACCUMULATOR
Accumulator
Heat exchanger
FOUR
THERMISTOR
THERMISTOR
R7T
THERMISTOR
Pressure switch (High pressure protection)
(S1PH)
Solenoid valve (Accumulator oil return)
(Y2S)
THERMISTOR (LIQUID PIPE)
(R6T)
THERMISTOR
ELECTRONIC EXPANSION VALVE
Four way valve
(Y3S)
Solenoid valve (Hot gas bypass)
(Y1S)
