Outline of Control (Indoor Unit) Si34-803_B
163 Function

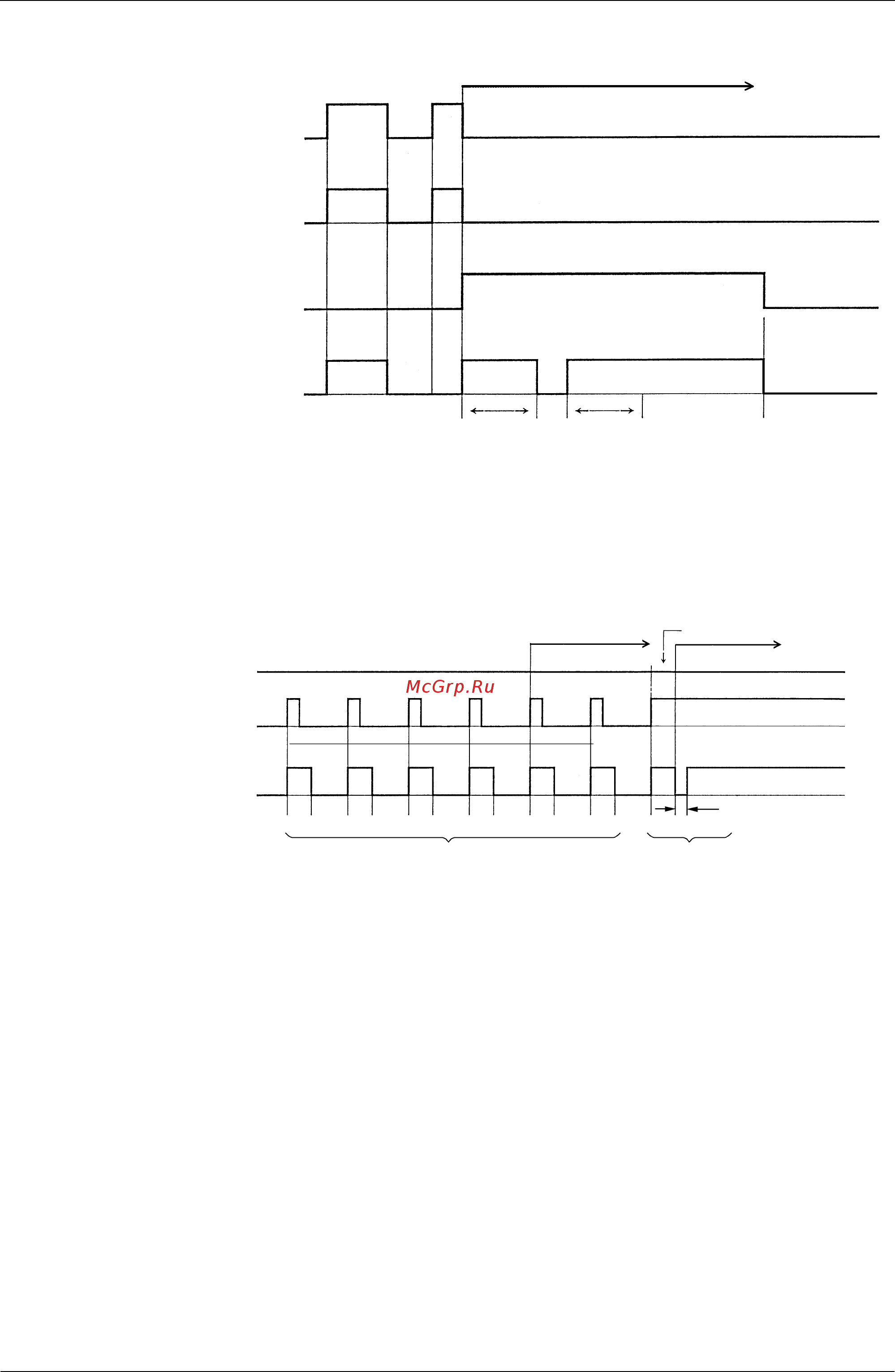

6.1.3 When the Float Switch is Tripped During Heating Operation:
During heating operation, if the float switch is not reset even after the 5 minutes operation, 5
seconds stop, 5 minutes operation cycle ends, operation continues until the switch is reset.
6.1.4 When the Float Switch is Tripped and “AF” is Displayed on the
Remote Controller:
*4. (Malfunction residual):
If the float switch is tripped five times in succession, a drain malfunction is determined to have
occurred. “AF” is then displayed as operation continues.
*5. (Malfunction residual):
The remote controller will display "A3" and the air conditioner will come to an abnormal stop if
the float switch is OFF for more than 5 minutes in the case of *4.
ON
OFF
ON
OFF
Thermostat
(running)
Humidifier
Float switch
Drain pump
5 min.
Reset
5 min.5 sec.
OFF
ON
OFF
ON
Remote controller "A3" flashing malfunction stop
ON
ON
ON
OFF
Remote
controller
display
Float switch
Drain pump
∗1: 5min ∗1 ∗1 ∗1 ∗1 ∗1 ∗1∗1
*4
1st time 2nd time 3rd time 4th time 5th time
"AF" display (running)
*5
5 sec.
OFF
OFF
Enters malfunction treatment
if the float switch is not reset
within 5 minutes.
Remote controller "A3" flashing
malfunction stop
