Field Setting Si34-803_B
195 Test Operation
3.1.2 Wireless Remote Controller
Setting
To set the field settings, you have to change:
“Mode No.”
“First code No.”
“Second code No.”.

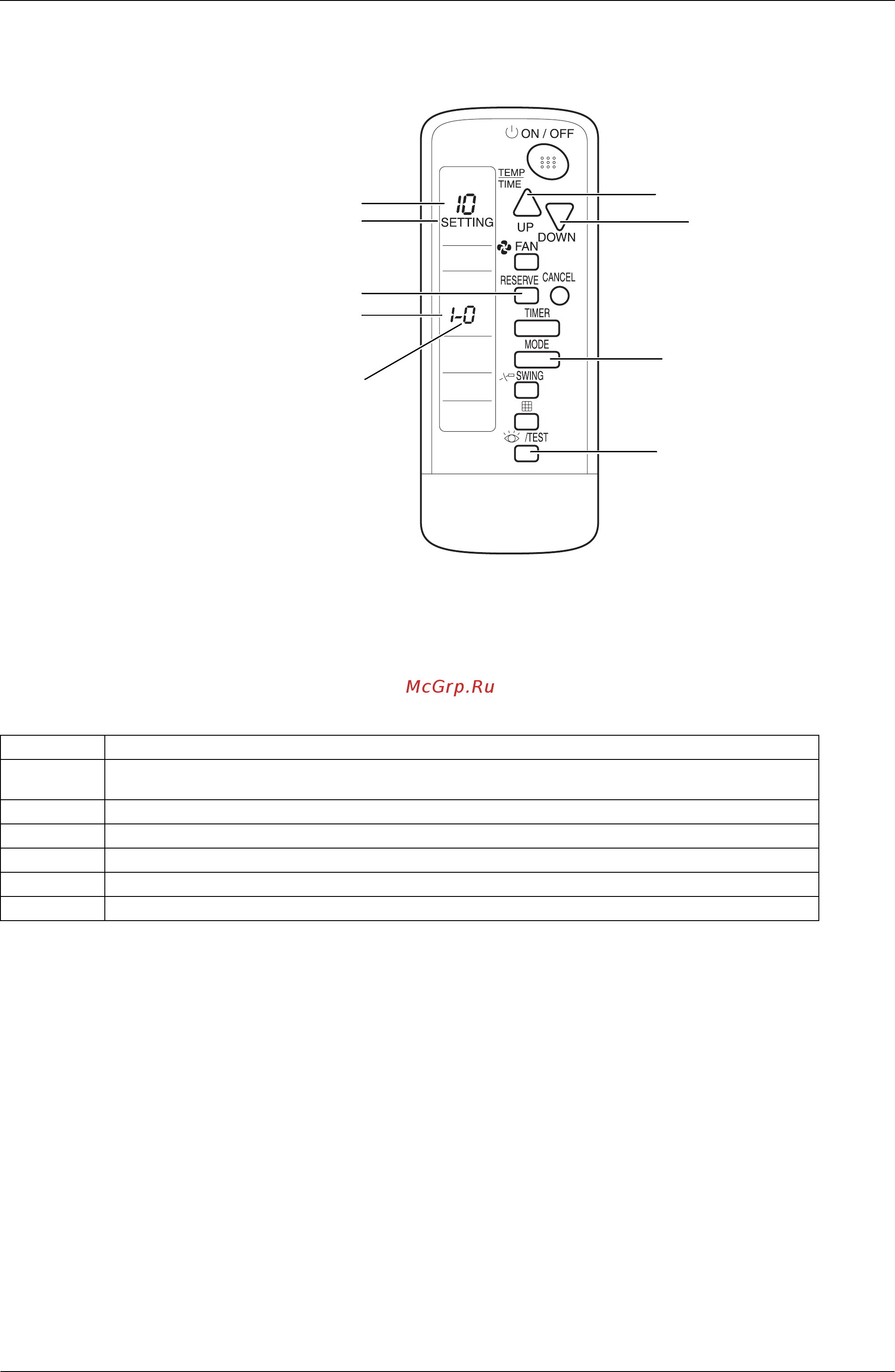

To change the field settings, proceed as follows:
RESERVE button
INSPECTION/TEST button
Mode No.
Field setting mode
UP button
DOWN button
First code No.
Second code No.
MODE button
Step Action
1 Hold down the INSPECTION/TEST button for at least 4 s during normal mode to enter the “Field
setting mode”.
2 Press the MODE button to select the desired “Mode No.”.
3 Press the UP button to select the “First code No.”.
4 Press the DOWN button to select the “Second code No.”
5 Press the RESERVE button to set the present settings.
6 Press the INSPECTION/TEST button to return to the “Normal mode”.
