Field Setting Si34-803_B
207 Test Operation
BRC1E61
In order to conduct the centralized remote control using the centralized remote controller and
the unified ON/OFF controller, Group No. settings should be made by group using the operating
remote controller.
Make Group No. settings for centralized remote control using the operating remote controller.
Note:
For setting group No. of HRV and wiring adaptor for other air conditioners, etc., refer to the
instruction manual attached.
NOTICE
Enter the group No. and installation place of the indoor unit into the attached installation table.
Be sure to keep the installation table with the operation manual for maintenance.

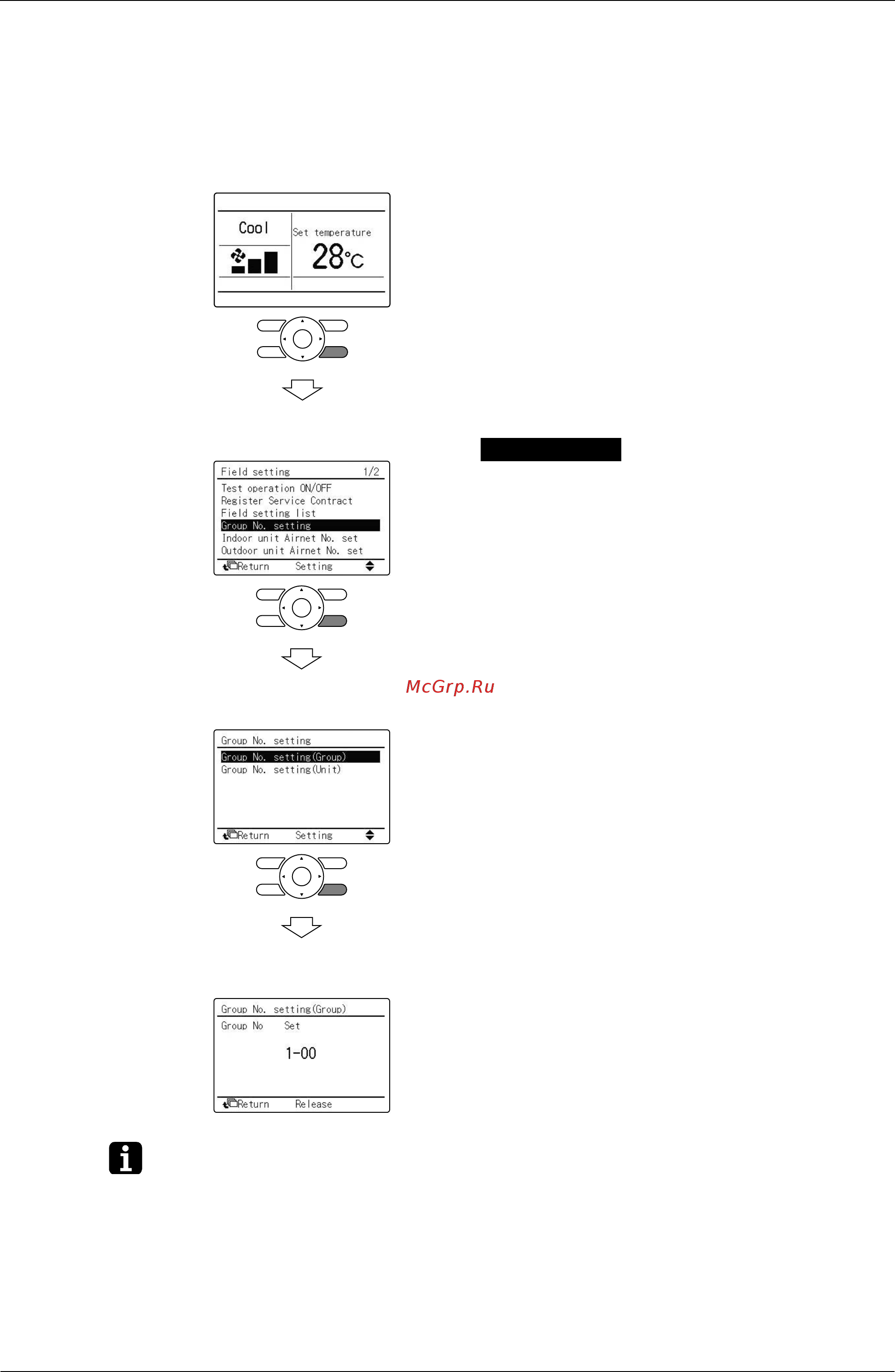

(1) <Basic screen>
Press and hold Cancel button for 4 seconds or more.
Field setting menu is displayed.
(2) <Field setting menu screen>
Select in the field setting menu, and
press Menu/Enter button.
Group No. setting screen is displayed.
(3) <Group No. setting>
Select Group No. setting (Group), and press Menu/Enter
button.
Group No. setting (Group) screen is displayed.
(4) <Group No. setting (Group)>
Select the group No. by using ST (Up/Down) button.
Press Menu/Enter button.
Group No. setting
