Daikin RXYQ36PAYL [308/452] Outdoor unit current sensor malfunction
![Daikin RXYQ36PAYL [308/452] Outdoor unit current sensor malfunction](/views2/1716343/page308/bg134.png)
Troubleshooting by Indication on the Remote Controller Si34-803_B
297 Troubleshooting
3.28
“
J2
”
Outdoor Unit: Current Sensor Malfunction
Remote
Controller
Display
J2
Applicable
Models
RXYQ5P(A)~54P(A)
Method of
Malfunction
Detection
Malfunction is detected according to the current value detected by current sensor.
Malfunction
Decision
Conditions
When the current value detected by current sensor becomes 5A or lower, or 40A or more during
standard compressor operation.
Supposed
Causes
Faulty current sensor (A6P, A7P)
Faulty outdoor unit PCB

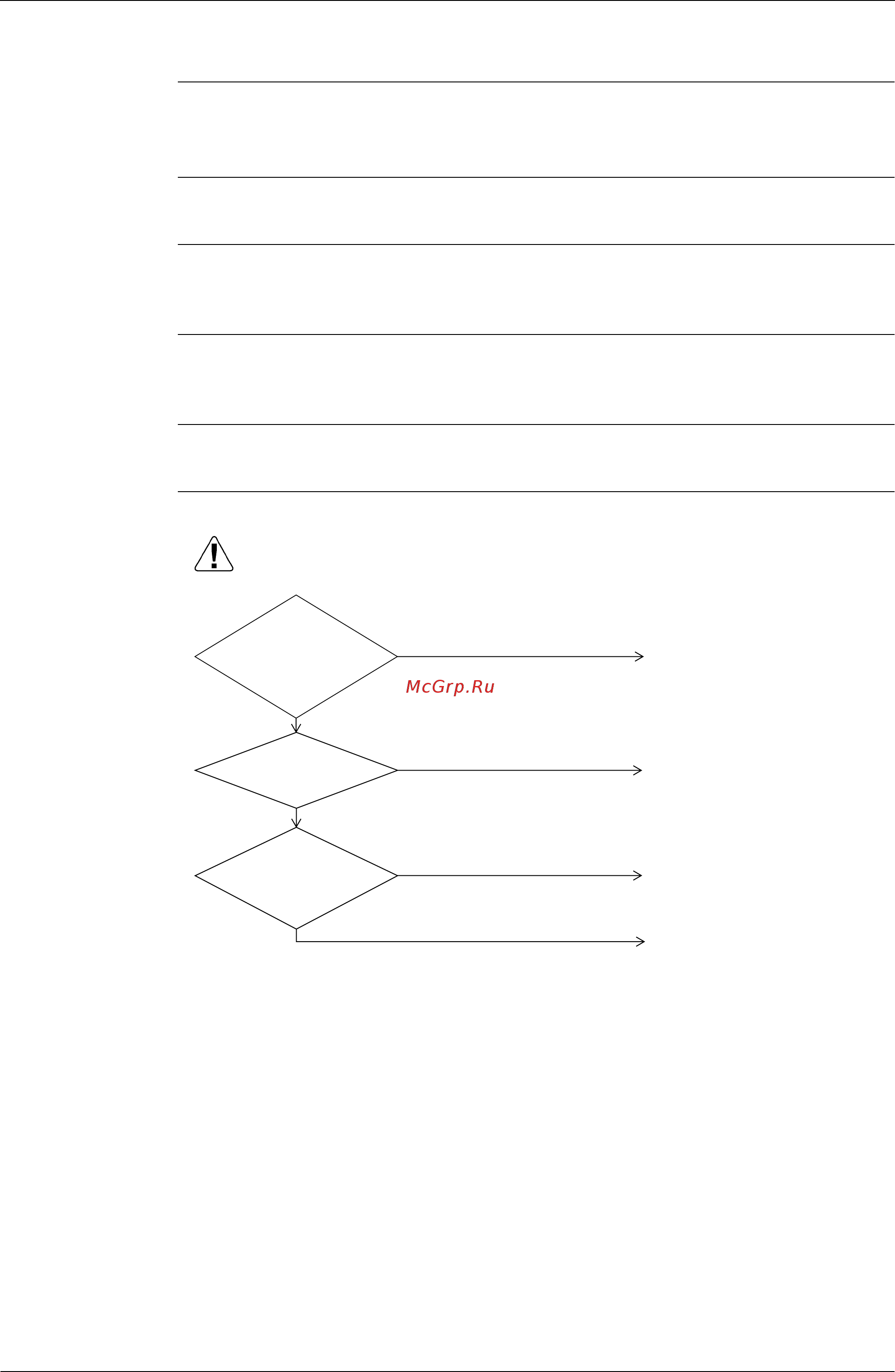

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
current sensor
mounted on the T-phase
(A6P) and R-phase
(A7P) wire?
Are the
current sensors inversely
connected to two STD
compressors?
Is the
connector for
current sensor
connected to X25A, X26A
on outdoor unit
PCB
(A1P)?
Replace the current sensor and
outdoor unit PCB.
Connect the connector, and
operate the unit again.
NO
NO
Mount the current sensor
correctly, and operate the unit
again.
YES
Correct the connections between
the current sensors and the STD
compressors.
NO
YES
YES
