Si34-803_B Troubleshooting by Indication on the Remote Controller
Troubleshooting 268
3.7
“
A9
”
Indoor Unit: Malfunction of Electronic Expansion
Valve Coil (Y1E)
Remote
Controller
Display
A9
Applicable
Models
All indoor unit models
Method of
Malfunction
Detection
Use a micro-computer to check the electronic expansion valve for coil conditions.
Malfunction
Decision
Conditions
When the pin input of the electronic expansion valve is not normal while in the initialization of
the micro-computer.
Supposed
Causes
Malfunction of electronic expansion valve coil
Defect of indoor unit PCB
Defect of connecting cable

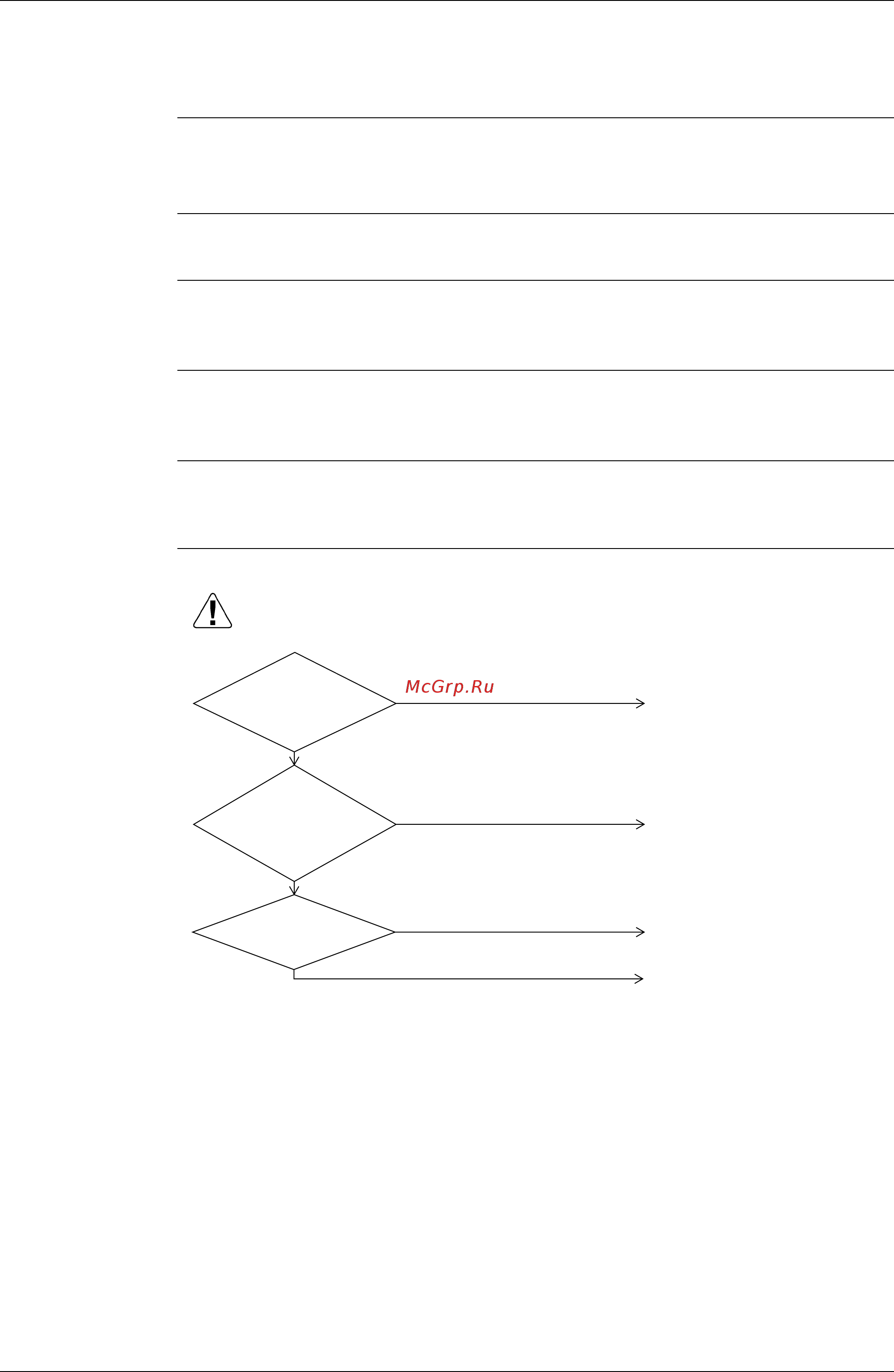

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
After connecting, turn the power
supply off and then back on.
Replace the electronic expansion
valve coil.
YES
YES
NO
NO
Replace the connecting cable.
If you turn the power supply off
and turn on again, and it still does
not help, replace the indoor unit
PCB.
NO
YES
The
electronic
expansion valve is
connected to X7A of the
indoor unit
PCB.
Normal
when the electronic
expansion valve coil is
checked.
(*1)
The connecting
cable is short-circuited or
disconnected.
