Daikin RXYQ36PAYL [236/452] Multi outdoor units connection
![Daikin RXYQ36PAYL [236/452] Multi outdoor units connection](/views2/1716343/page236/bgec.png)
Field Setting Si34-803_B
225 Test Operation

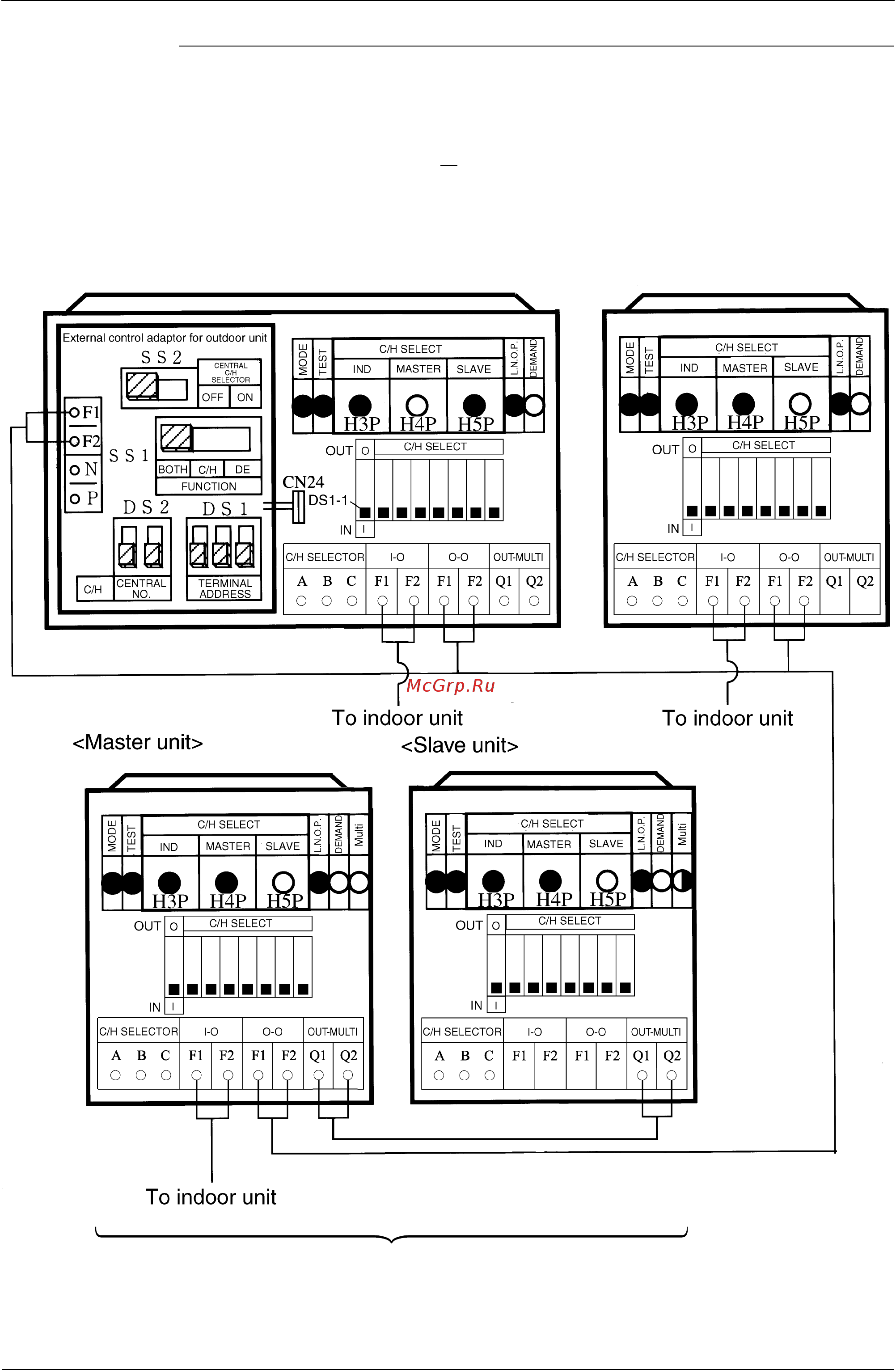

e Set Cool / Heat for More Than One Outdoor Unit System Simultaneously in Accordance with Unified
Master Outdoor Unit by Indoor Unit Remote Controller
Install the external control adaptor for outdoor unit on either the outdoor-outdoor, indoor-
outdoor transmission line.
Set outdoor unit PCB DS1-1 to IN (factory setting).
In setting mode 1, set the outdoor unit you want to give cool/heat selection permission to as
the group master, and set the other outdoor units as group slave units.
Set the outdoor unit external control adaptor SS1 to BOTH (factory setting) or C/H, and SS2
to OFF (factory setting).
Multi outdoor units connection
