■ Priority scan type
The priority scan checks for signals on the frequency every
5 sec. while operating on a scanning memory channel or
scanning.
The scan resumes according to the selected scan resume
condition. See p. 90 for details.
NOTE: If the pocket beep function is activated, the receiver
automatically selects the tone squelch function when pri-
ority scan starts.

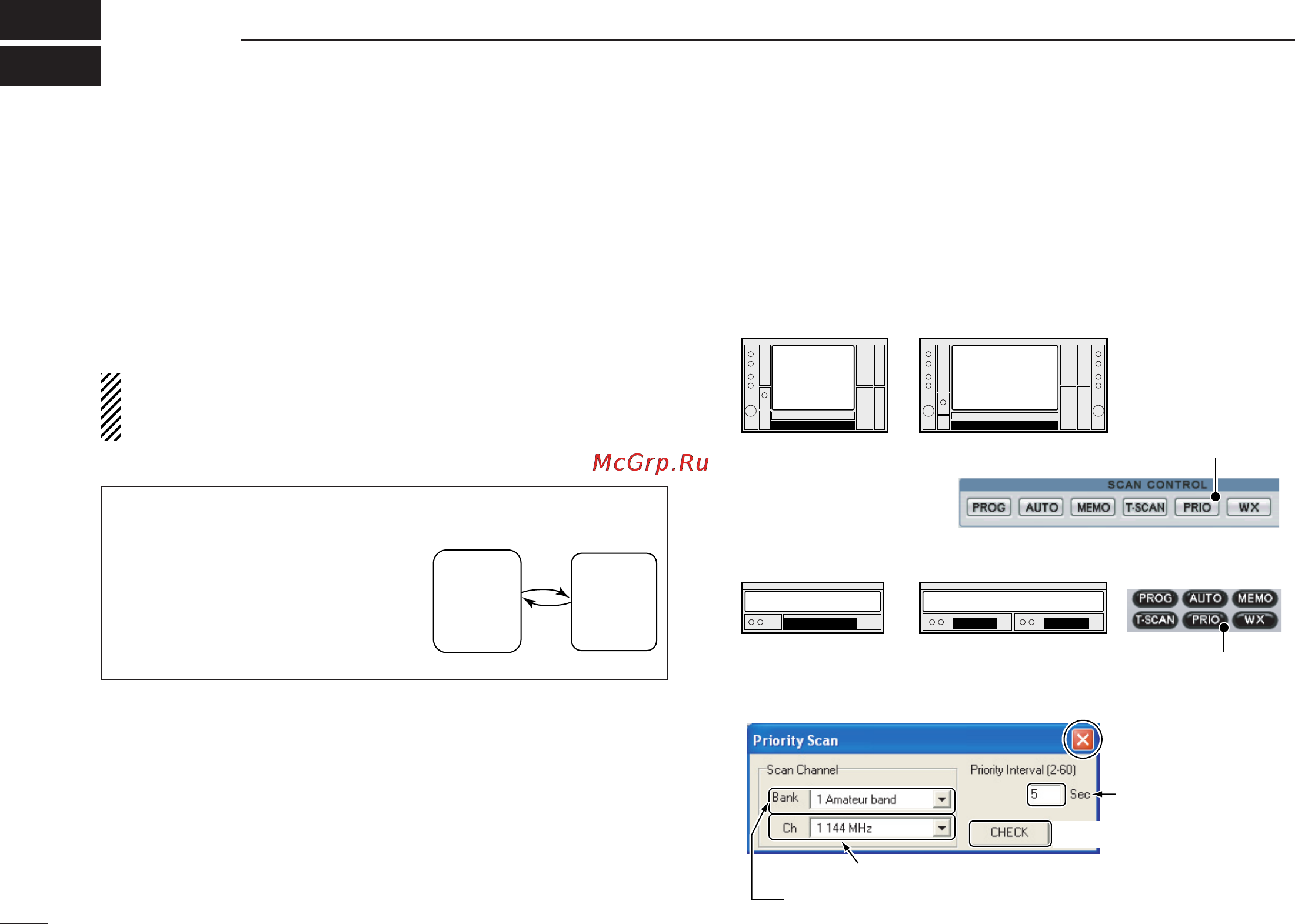

■ Priority scan operation
qSet the receive frequency. (p. 48)
wRight-click the zPRIOx button to call up the [Priority Scan]
setting screen if it is not displayed.
METER/SCAN
Active band only
MAIN SUB
• [Compo] screen
• [Receiver] screen
IC-PCR2500IC-PCR1500
IC-PCR2500IC-PCR1500
zPRIOx
zPRIOx
• [Priority Scan] screen
t Click
q Select a memory bank.
w Select a memory channel.
e Set the scanning
interval
r Click
MEMORY CHANNEL SCAN
While operating on a frequency,
priority scan checks for a signal
on the selected memory channel
every 2 to 60 sec.
•Amemory channel with skip infor-
mation can be scanned.
5 sec.
Scanning
memory
channel
Priority
setting
memory
channel
92
PRIORITY SCAN (Multi-function receiver/Component screens only)
