Icom IC-PCR2500 [22/148] Driver installation

DRIVER INSTALLATION

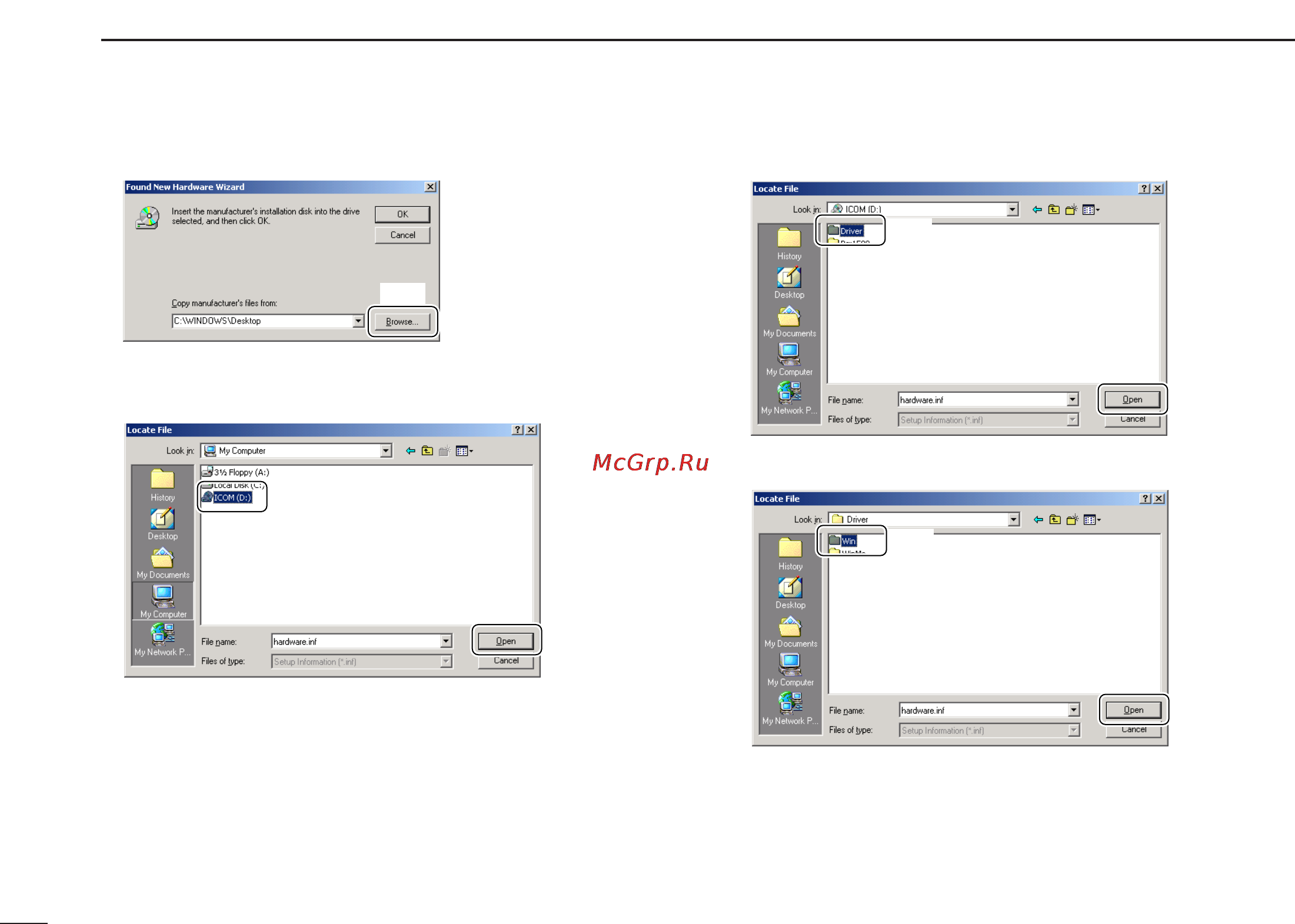

!9Click [Browse...].

@0Select the CD drive in “My Computer,” then click [Open].

• The CD drive folder name (e.g. “D”) is depending on a PC.

@1Select the “Driver” folder in the CD drive, then click [Open].

@2Select “Win” in the “Driver” folder, then click [Open].

Click
