Icom IC-PCR2500 [19/148] Driver installation

DRIVER INSTALLATION

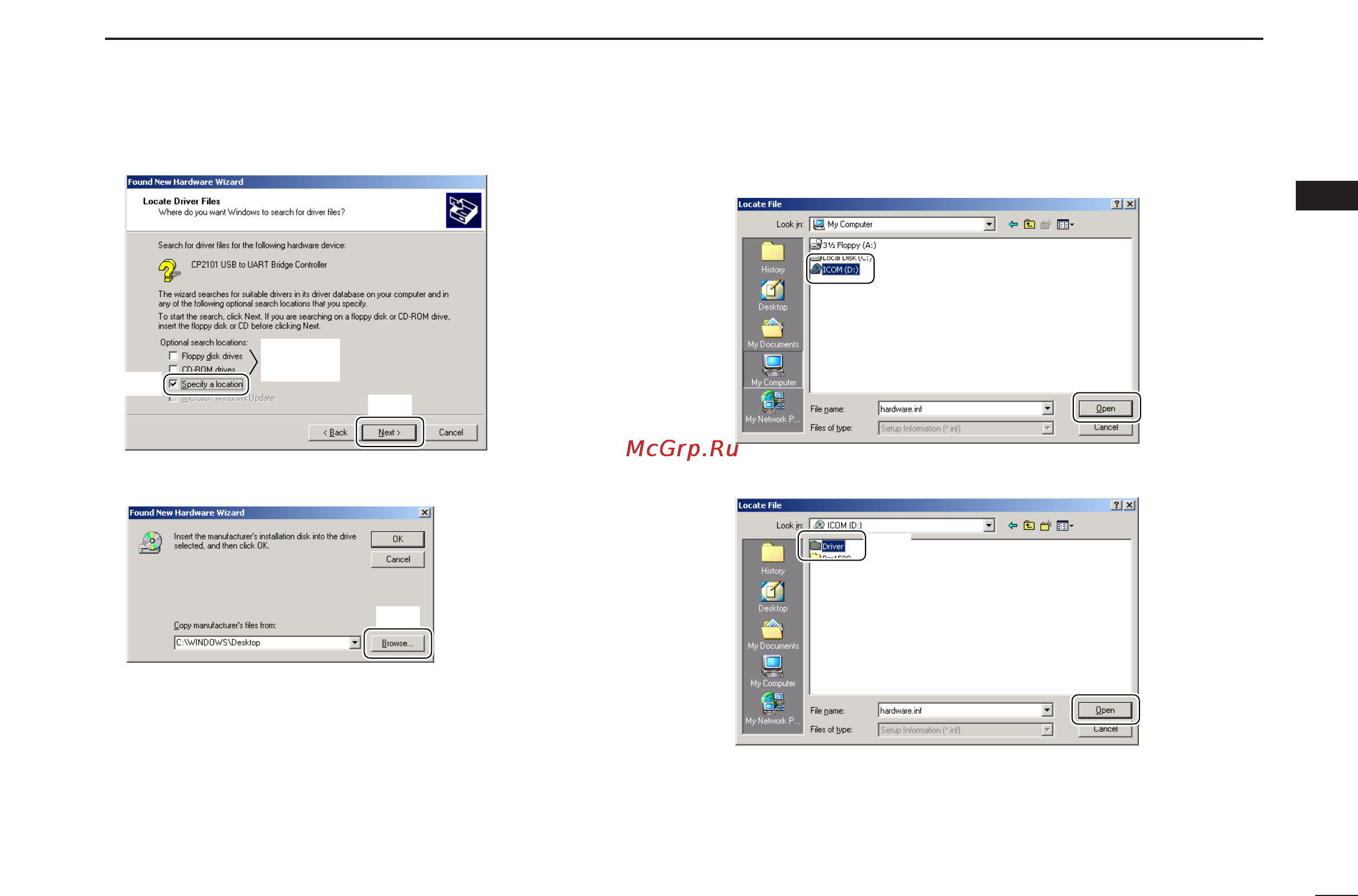

uSelect “Specify a location,” then click [Next>].

iClick [Browse...].

oSelect the CD drive in “My Computer,” then click [Open].

• The CD drive folder name (e.g. “D”) is depending on a PC.

!0Select the “Driver” folder in the CD drive, then click [Open].

Click

No check

marks ✔

Select
