DRIVER INSTALLATION

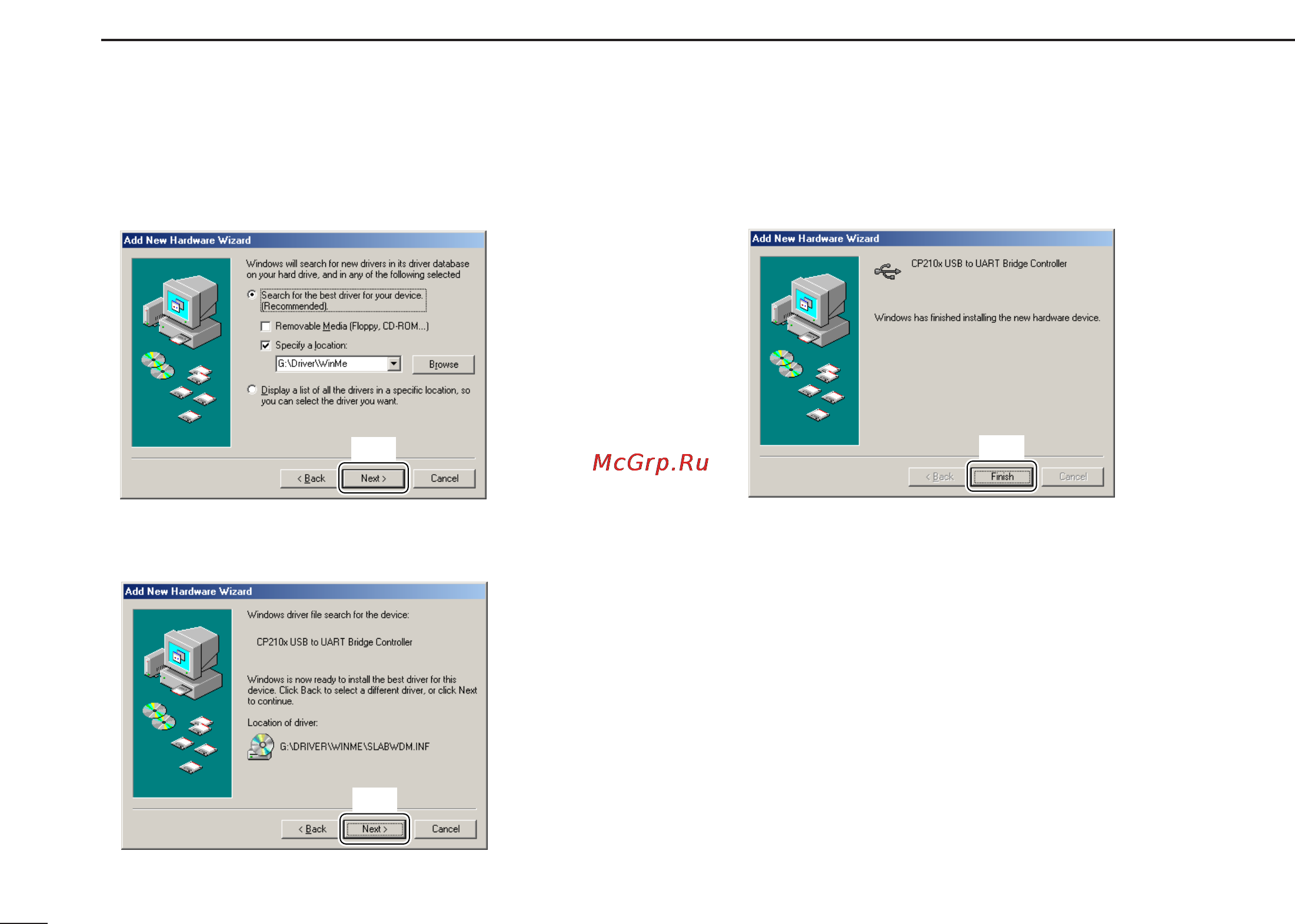

!6Click [Next>].

!7When the driver is found, the following dialog is displayed.

Click [Next>] to start the installation.

!8After the installation is completed, click [Finish].

!9Eject the CD.

• Restarting the PC is recommended.
