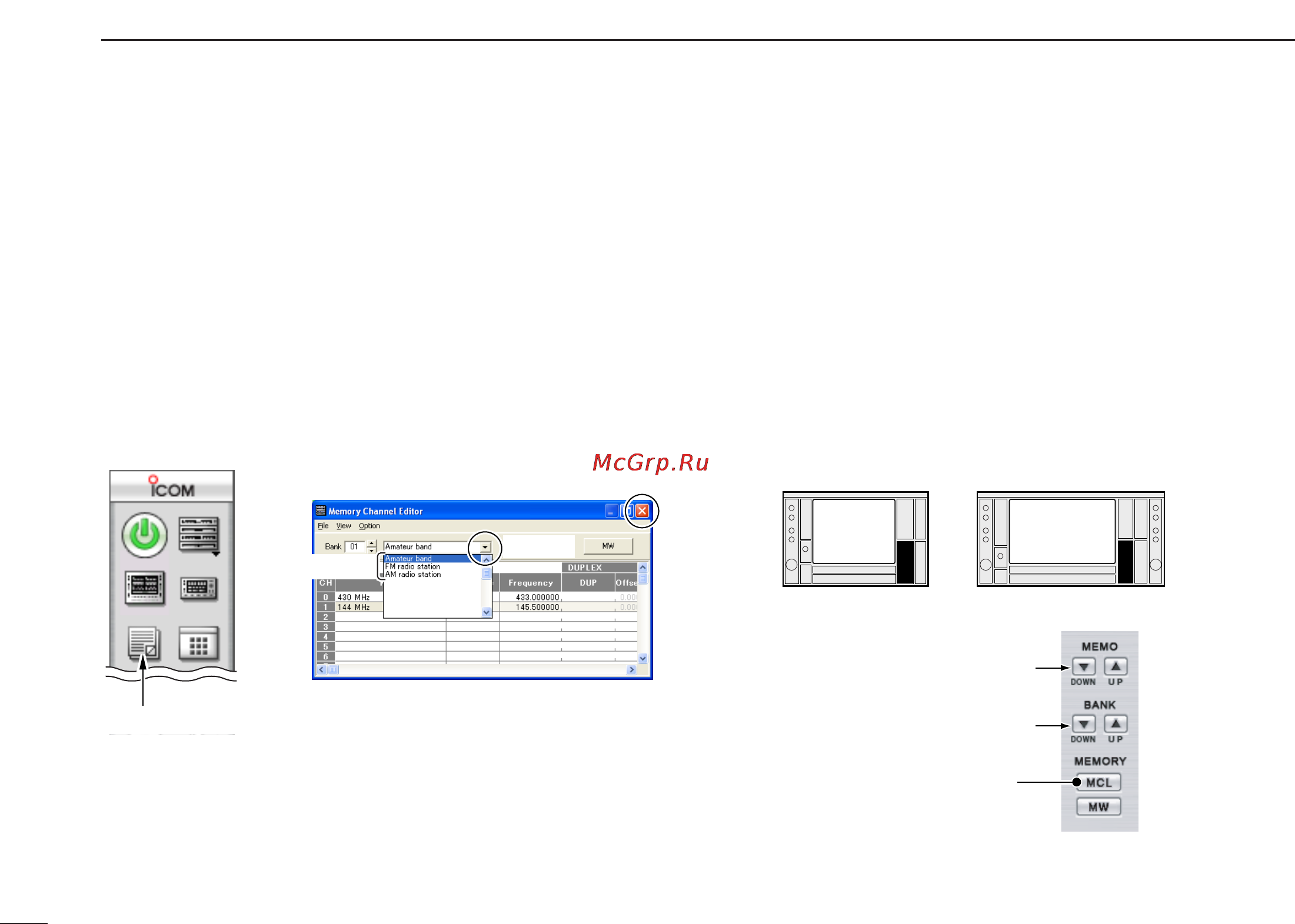

![Icom IC-PCR2500 [84/148] Clearing](/views2/1074692/page84/bg54.png)
76
6
MEMORY CHANNELS
D Selecting a bank with the programmed name
Each memory bank can be selected with the programmed
name from a bank name dialog box.
q Click the zMemory Editx icon on the tool bar to call up the
[Memory Channel Editor] screen if it is not displayed.
w Click [Z] to display a memory bank name list as below.
e Click the desired bank name to select the bank.
• The [Memory Channel Editor] screen contents changes to the
selected bank’s.
r After selection, click close button ([X]) to close the mem-
ory channel list screen.
■ M
emory channel
clearing
D Clearing from the receiver screen
q Click zYx(BANK) or zZx(BANK) to select the memory
bank, including the unneeded memory channel.
w Click zYx(MEMO) or zZx(MEMO) to select the unneeded
memory channel to be cleared.
e Click [MCL] ([M-CL])* for 1 sec. to clear the memory chan-
nel contents.
*Available only when [Simple] screen is displayed.
Active band only
• [Receiver] screen
IC-PCR2500IC-PCR1500
BANK
zYx/zZx
MEMO
zYx/zZx
zMCLx
e Click
[Memory Edit]
q Click
w Select
