Icom IC-PCR2500 [14/148] Driver installation

DRIVER INSTALLATION

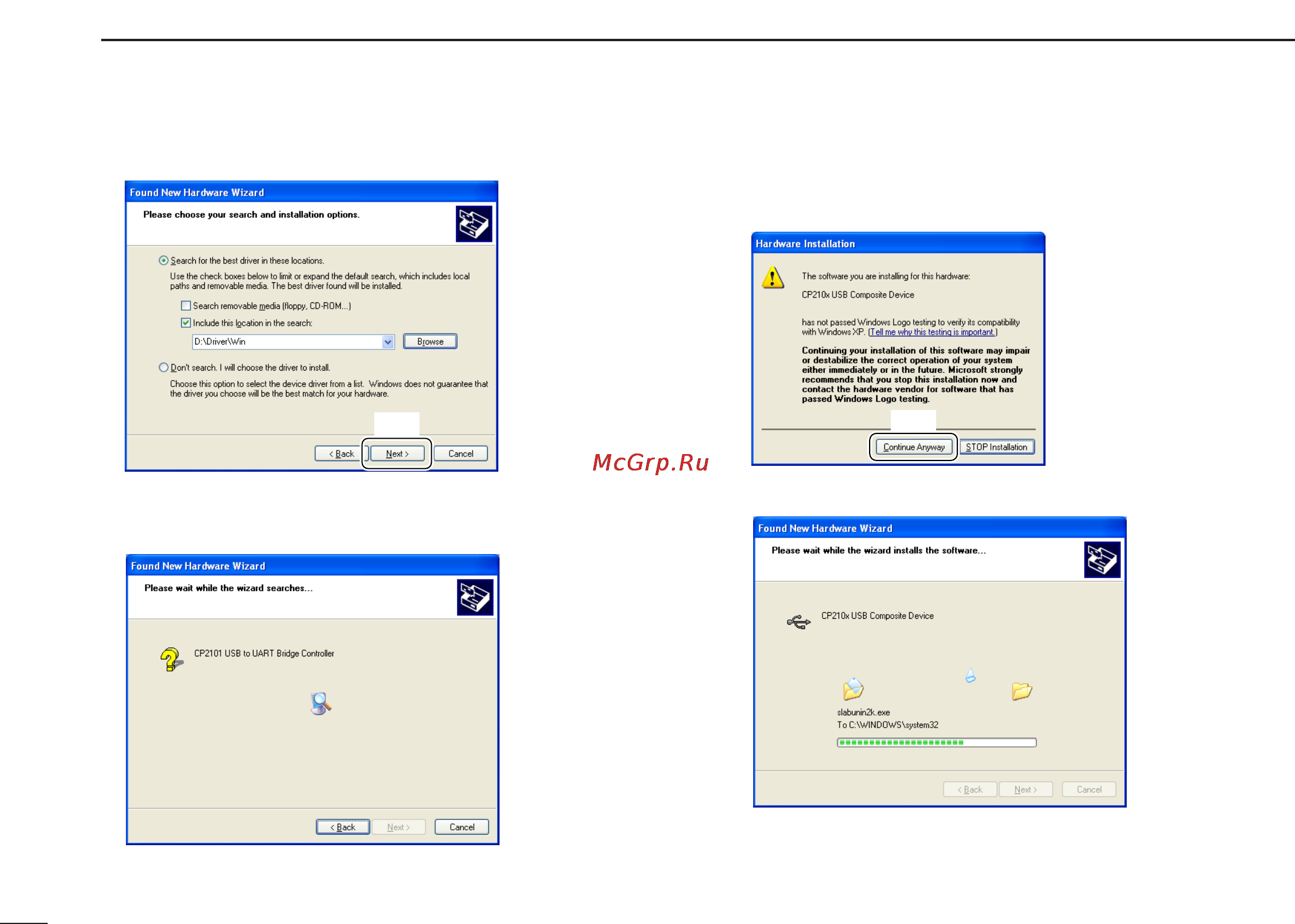

oClick [Next>].

!0The Wizard starts searching for the driver and shows the

dialog below during search.

!1After the driver is found, the “Hardware Installation” dialog

box appears as below.

Click [Continue Anyway] to start the installation.

!2Windows starts installing the USB driver.

Click
