Icom IC-PCR2500 [12/148] Driver installation
![Icom IC-PCR2500 [12/148] Driver installation](/views2/1074692/page12/bgc.png)
4
DRIVER INSTALLATION
2
The displayed dialog boxes or indications may differ
slightly from the following instructions according to your
system conditions, or environment.
■ Microsoft
®
Windows
®
XP
NOTE: Driver installation with CD is required when an ad-
ditional Main unit is connected to the PC (i.e. 2 or more IC-
PCR1500 or IC-PCR2500s (same model only) are
connected to the PC). In such a case, install the driver as
shown below.
qQuit all applications when Windows is running.
wConnect the Main unit to the desired PC’s USB port with
the supplied USB cable.
CAUTION: Icom Inc. assumes no responsibility for the
receiver’s operation resulting from the use of any other
USB cable other than the one supplied by Icom in the
original IC-PCR1500 or IC-PCR2500 package.
eInsert the CD into the appropriate CD drive.
rTurn the Main unit power ON.
• The power indicator lights.

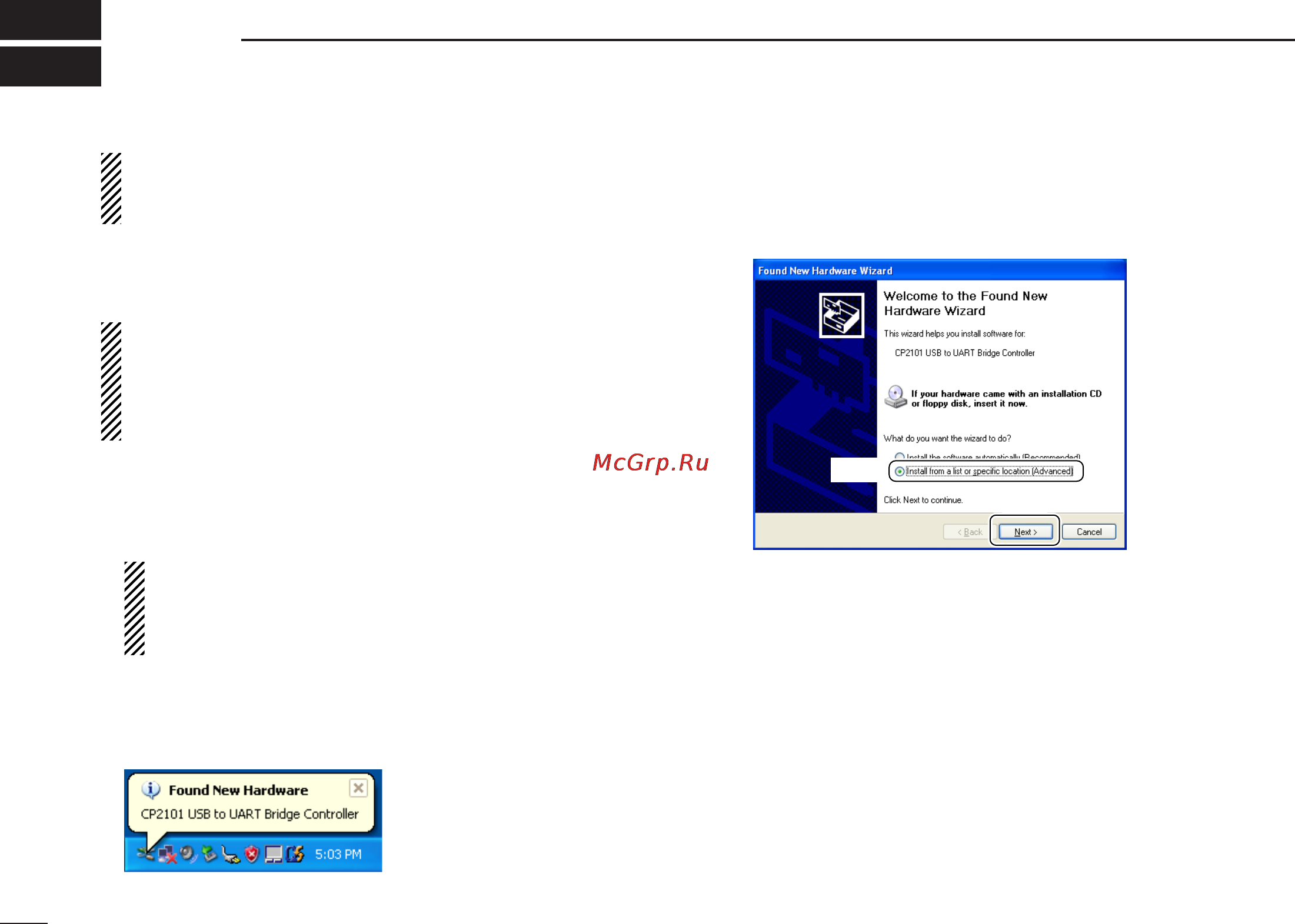

• “Found New Hardware” appears as below.
tThe CP2101 USB device is detected automatically, and the
“Found New Hardware Wizard” will come up as below.
Select “Install from a list or specific location (Advanced),”
then click [Next>].
Click
Select
